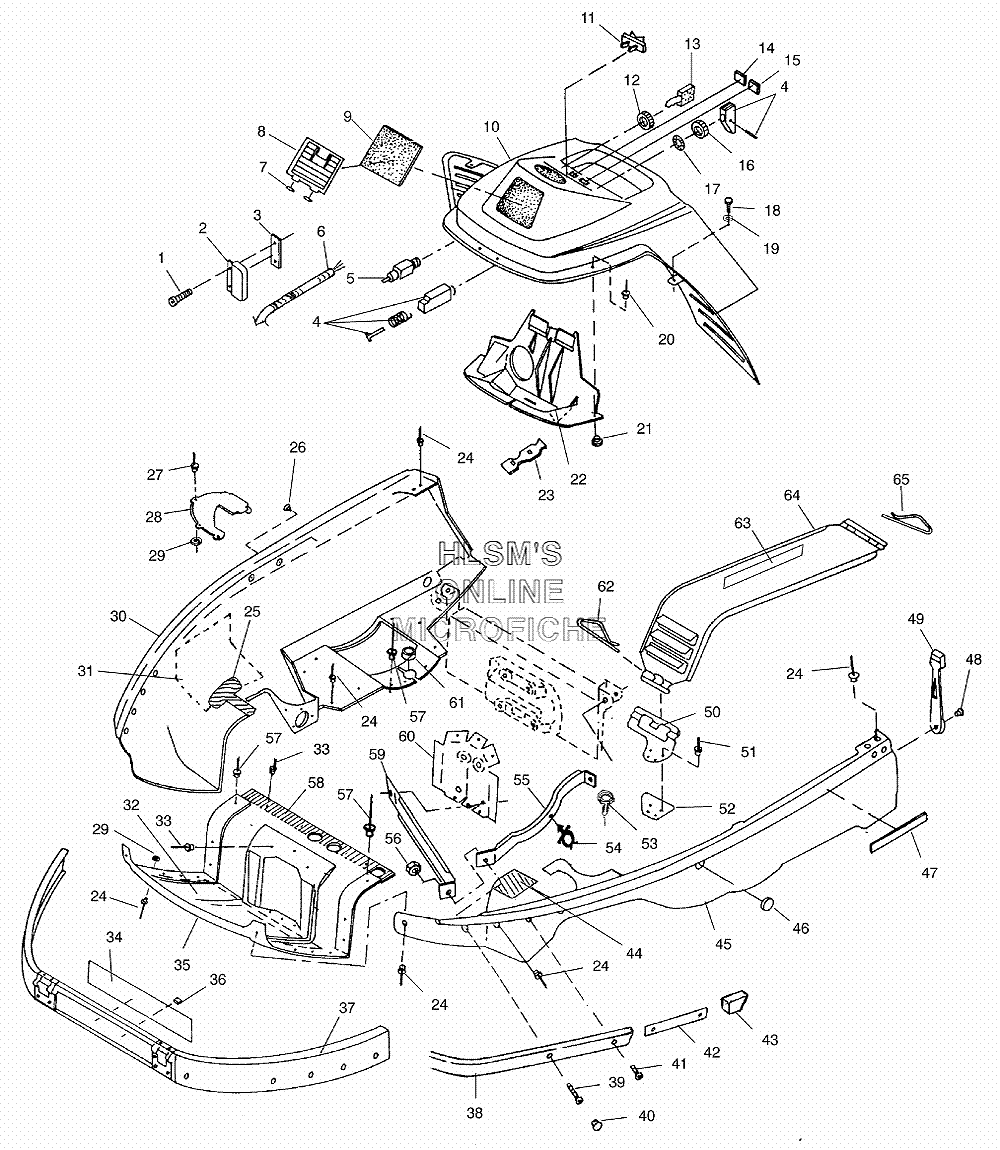

NOSEPAN AND CONSOLE ASSEMBLY для Polaris INDY 340 TOURING (S03LT3AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7512018 SCREW
    SCREW
  • 2
    4060122 REGULATOR, 14 VAC.LR-9
    REGULATOR, 14 VAC.LR-9
  • 3
    5210650 HEAT SINK
    HEAT SINK
  • 4
    2200188 CHOKE CONTROL KIT
    CHOKE CONTROL KIT
  • 4
    7080661 CABLE, CHOKE
    CABLE, CHOKE
  • 5
    4110038 SWITCH IGNITION
    SWITCH IGNITION
  • 6
    2460647 HARNESS, MAIN (LITE TOUR)
    HARNESS, MAIN (LITE TOUR)
  • 7
    5410374 SEAL, O-RING
    SEAL, O-RING
  • 8
    5431211-070 LOUVER, INTAKE
    LOUVER, INTAKE
  • 9
    5810458 FOAM, INTAKE
    FOAM, INTAKE
  • 10
    5431636-070 CONSOLE DELUXE (BLACK)
    CONSOLE DELUXE (BLACK)
  • 11
    4110195 SWITCH, ROCKER W/INDICCATOR
    SWITCH, ROCKER W/INDICCATOR
  • 12
    7547034 NUT, IGNITION
    NUT, IGNITION
  • 13
    5410378 KEY, IGNITION
    KEY, IGNITION
  • 14
    5430967 PLUG, INDICATOR HOLE
    PLUG, INDICATOR HOLE
  • 15
    4040014 INDICATOR, 'ACCESSORY' WARNING
    INDICATOR, 'ACCESSORY' WARNING
  • 16
    7080229 NUT
    NUT
  • 17
    7571610 WASHER LOCK
    WASHER LOCK
  • 18
    7517468 BOLT
    BOLT
  • 19
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 20
    7621336 RIVET
    RIVET
  • 21
    7555727 WASHER
    WASHER
  • 22
    5431214-070 CONSOLE (INNER)
    CONSOLE (INNER)
  • 23
    5410425 STRAP, TOOL COMPARTMENT
    STRAP, TOOL COMPARTMENT
  • 24
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 25
    5812012 FOIL, TAPE PAN
    FOIL, TAPE PAN
  • 26
    7670067 CLIP, DART
    CLIP, DART
  • 27
    7621457 RIVET
    RIVET
  • 28
    5431252 COVER SHOCK (LEFT)
    COVER SHOCK (LEFT)
  • 28
    5431253 COVER SHOCK (RIGHT)
    COVER SHOCK (RIGHT)
  • 29
    7558212 WASHER
    WASHER
  • 30
    5431230-070 NOSEPAN W/HOLE-SWAY) (BLACK/RIGHT)
    NOSEPAN W/HOLE-SWAY) (BLACK/RIGHT)
  • 31
    5812013 FOIL, TAPE PAN
    FOIL, TAPE PAN
  • 32
    5810475 TAPE, FOIL
    TAPE, FOIL
  • 33
    7621472 RIVET
    RIVET
  • 34
    5243631-067 SCREEN (FRONT/BLACK)
    SCREEN (FRONT/BLACK)
  • 35
    5431154-070 NOSEPAN (CENTER)
    NOSEPAN (CENTER)
  • 36
    7670040 CLIP U TYPE
    CLIP U TYPE
  • 37
    2635010-067 HINGE (LOWER/BLACK)
    HINGE (LOWER/BLACK)
  • 38
    5224434-067 BUMPER (FRONT/BLACK)
    BUMPER (FRONT/BLACK)
  • 39
    7515102 SCREW
    SCREW
  • 40
    7080980 PLUG BUTTON (TRW) (BLACK)
    PLUG BUTTON (TRW) (BLACK)
  • 41
    7512164 SCREW
    SCREW
  • 42
    5222611-067 PLATE, BUMPER
    PLATE, BUMPER
  • 43
    5431250-070 CAP, BUMPER END (LEFT/BLACK)
    CAP, BUMPER END (LEFT/BLACK)
  • 43
    5431251-070 CAP, BUMPER END (RIGHT/BLACK)
    CAP, BUMPER END (RIGHT/BLACK)
  • 44
    5811558 FOAM NOSEPAN (LEFT)
    FOAM NOSEPAN (LEFT)
  • 45
    5431229-070 NOSEPAN (W/HOLE-SWAY) (BLACK/LEFT)
    NOSEPAN (W/HOLE-SWAY) (BLACK/LEFT)
  • 46
    5410582 PLUG, CATCH HOLE
    PLUG, CATCH HOLE
  • 47
    2670071 REFLECTOR AMBER
    REFLECTOR AMBER
  • 48
    7621601 RIVET,
    RIVET,
  • 49
    5431501 STRAP
    STRAP
  • 50
    5222332-067 SUPPORT, CLUTCH GUARD (BLACK)
    SUPPORT, CLUTCH GUARD (BLACK)
  • 51
    7621449 RIVET
    RIVET
  • 52
    5211249-067 PLATE, CLUTCH GUARD (BLACK)
    PLATE, CLUTCH GUARD (BLACK)
  • 53
    5432302 CLIP, OIL LINE RETAINER
    CLIP, OIL LINE RETAINER
  • 54
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 55
    5222339-067 BRACKET PANBRACE (BLACK/LEFT)
    BRACKET PANBRACE (BLACK/LEFT)
  • 55
    5222340-067 BRACKET PANBRACE (BLACK/RIGHT)
    BRACKET PANBRACE (BLACK/RIGHT)
  • 56
    7542122 NUT NYLOK
    NUT NYLOK
  • 57
    7621479 RIVET
    RIVET
  • 58
    5812014 FOIL, TAPE PAN
    FOIL, TAPE PAN
  • 59
    5222345-067 BRACKET BUMPER BRACE (BLACK/LEFT)
    BRACKET BUMPER BRACE (BLACK/LEFT)
  • 59
    5222346-067 BRACKET BUMPER BRACE (BLACK/RIGHT)
    BRACKET BUMPER BRACE (BLACK/RIGHT)
  • 60
    5222356-067 BRACKET SUPPORT (BLACK)
    BRACKET SUPPORT (BLACK)
  • 61
    5811078 SHIELD, NOSEPAN DRAIN HOLE
    SHIELD, NOSEPAN DRAIN HOLE
  • 62
    7080216 PIN CLUTCH COVER
    PIN CLUTCH COVER
  • 63
    7075350 DECAL, ENGINE AND CLUTCH (CPSC)
    DECAL, ENGINE AND CLUTCH (CPSC)
  • 64
    5243761 GUARD CLUTCH
    GUARD CLUTCH
  • 65
    7080311 PIN (FRONT)
    PIN (FRONT)
