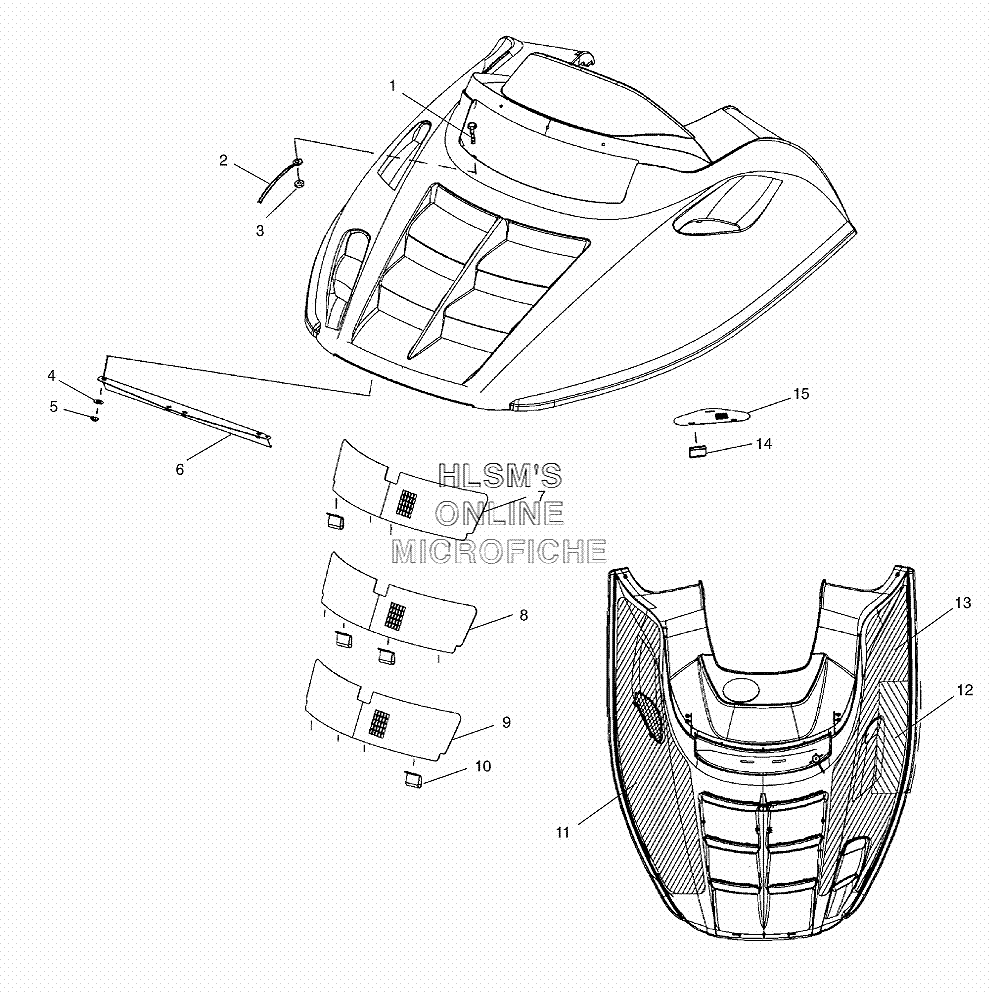

HOOD ASSEMBLY для Polaris INDY 340 TOURING (S03LT3AS) - 2003 года выпуска
-
№АртикулНазвание
-
17512103 BOLTBOLT
-
27080414 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
37542122 NUT NYLOKNUT NYLOK
-
47555806 WASHER, FLATWASHER, FLAT
-
57670017 PUSH-ON NUTPUSH-ON NUT
-
65243932 DEFLECTOR AIR, LITEDEFLECTOR AIR, LITE
-
75243629-067 SCREEN HOOD (UPPER/BLACK)SCREEN HOOD (UPPER/BLACK)
-
85243628-067 SCREEN HOOD (CENTER/BLACK)SCREEN HOOD (CENTER/BLACK)
-
95243627-067 SCREEN HOOD (LOWER/BLACK)SCREEN HOOD (LOWER/BLACK)
-
107670082 SPEEDCLIP, 'U'TYPESPEEDCLIP, 'U'TYPE
-
115811772 FOAM, HOOD PSA #1 (LEFT)FOAM, HOOD PSA #1 (LEFT)
-
125811563 FOIL HOOD, #2 (RIGHT)FOIL HOOD, #2 (RIGHT)
-
135811773 FOAM, HOOD PSA #1 (RIGHT)FOAM, HOOD PSA #1 (RIGHT)
-
147670040 CLIP U TYPECLIP U TYPE
-
155243630-067 SCREEN HOOD, SIDE (BLACK)SCREEN HOOD, SIDE (BLACK)
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- • HOOD ASSEMBLY
- NOSEPAN AND CONSOLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TUNNEL ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- TUNNEL EXTENSION ASSEMBLY W/RACK
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
