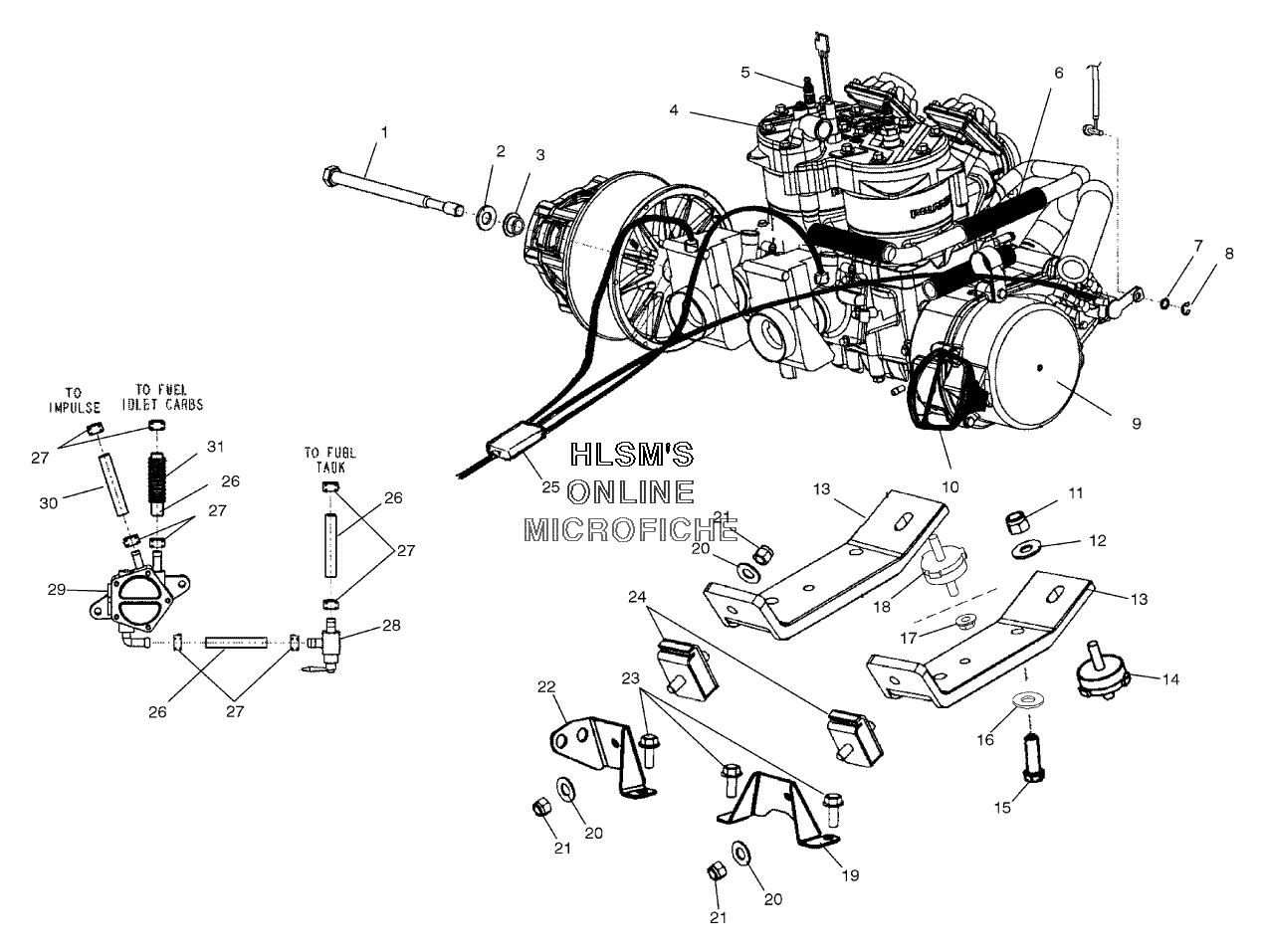

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 RMK 159 VERTICAL ESCAPE (S03NN8CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517501 SCREWSCREW
-
27556003 WASHERWASHER
-
35132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
42202334 N/A, USE COMPONENTSN/A, USE COMPONENTS
-
53070190 SPARK PLUG, CHAMPION RN57Y CCSPARK PLUG, CHAMPION RN57Y CC
-
65521398-13 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
77555944 WASHERWASHER
-
87710427 RING E, RETAINERRING E, RETAINER
-
95811485 FOIL TAPE (5.5"DIA)FOIL TAPE (5.5"DIA)
-
105431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
117542451 NUT NYLOKNUT NYLOK
-
127555893 WASHER, FLATWASHER, FLAT
-
135245462 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
135245475 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
143021290 MOUNT ENGINE, 3/8-16 50 DURMOUNT ENGINE, 3/8-16 50 DUR
-
157512539 BOLTBOLT
-
167553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
177547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
183021220 MOUNT ENGINE, 3/8-16MOUNT ENGINE, 3/8-16
-
195245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
207555806 WASHER, FLATWASHER, FLAT
-
217547008 NUT FLEXLOCKNUT FLEXLOCK
-
221013397 WELD ENG MOUNT BRACKET (LEFT)WELD ENG MOUNT BRACKET (LEFT)
-
237517854 SCREW SPEC-YSCREW SPEC-Y
-
243021206 MOUNT ENGINE, RECTMOUNT ENGINE, RECT
-
257081083 CABLE THROTTLE, TWIN RMKCABLE THROTTLE, TWIN RMK
-
268350017-600 FUEL LINE ETHER (5/16") (RED)FUEL LINE ETHER (5/16") (RED)
-
277080003 CLAMP, HOSECLAMP, HOSE
-
287052268 VALVE FUEL SHUTOFF (5/16 ID)VALVE FUEL SHUTOFF (5/16 ID)
-
292520275 PUMP FUEL, 5/16 IN/OUT MIKPUMP FUEL, 5/16 IN/OUT MIK
-
308450040-600 LINE FUEL (1/4 ID/600 CM.)LINE FUEL (1/4 ID/600 CM.)
-
318360052-15 LINE GUARDLINE GUARD
