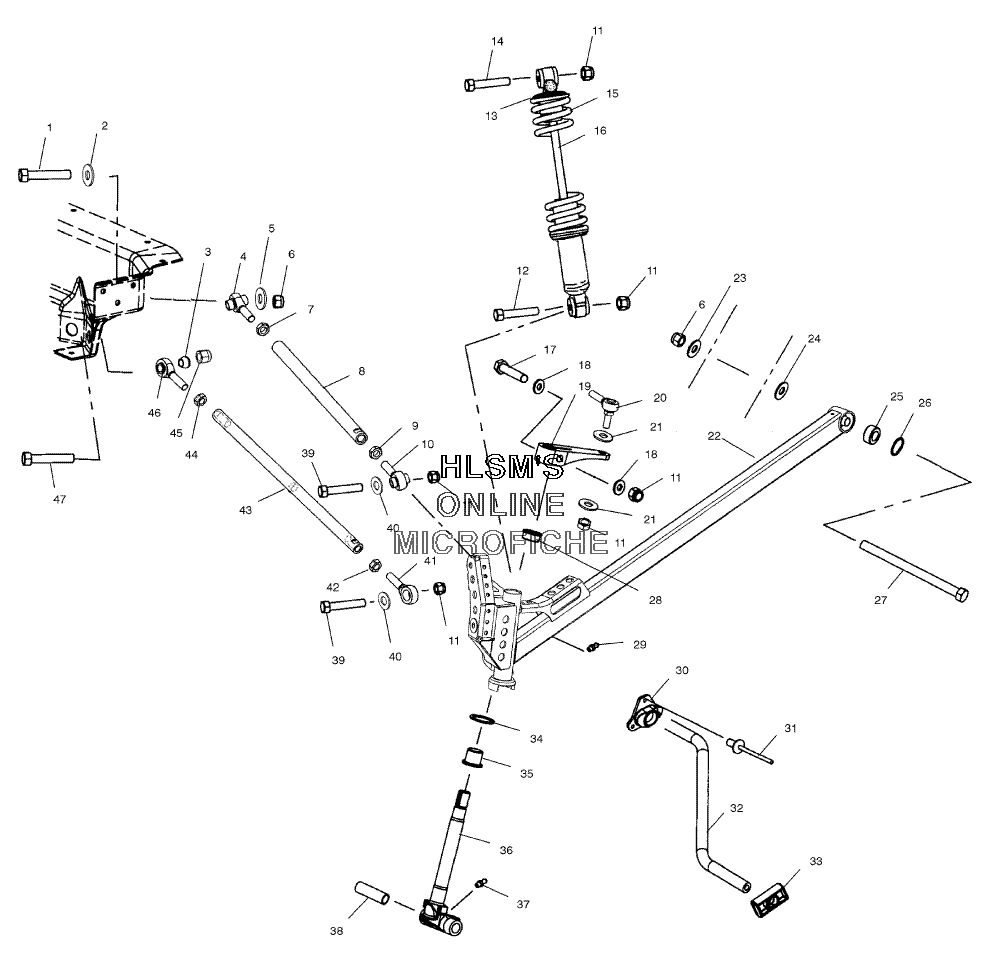

SUSPENSION - FRONT для Polaris 800 RMK 159 VERTICAL ESCAPE (S03NN8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517980 BOLT HEXAGON CAP GR5-Y
    BOLT HEXAGON CAP GR5-Y
  • 2
    7556212 WASHER 7/16 SAE, STF THRU-HRD-Y
    WASHER 7/16 SAE, STF THRU-HRD-Y
  • 3
    5132454 BUSHING, SPACER
    BUSHING, SPACER
  • 4
    7061081 ROD END RADIUS (LEFT)
    ROD END RADIUS (LEFT)
  • 5
    7555852 WASHER, FLAT
    WASHER, FLAT
  • 6
    7547066 NUT 7/16-20, NYLOK, Y
    NUT 7/16-20, NYLOK, Y
  • 7
    7547117 NUT (LEFT)
    NUT (LEFT)
  • 8
    5133691 TUBE RADIUS ROD (UPPER)
    TUBE RADIUS ROD (UPPER)
  • 9
    7542520 NUT JAM
    NUT JAM
  • 10
    7061104 ROD END (RIGHT)
    ROD END (RIGHT)
  • 11
    7542439 NUT NYLOK
    NUT NYLOK
  • 12
    7515433 SCREW
    SCREW
  • 13
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 14
    7515415 SCREW
    SCREW
  • 15
    7041576-293 SPRING COMP, IFS (INDY RED)
    SPRING COMP, IFS (INDY RED)
  • 16
    7042146 SHOCK-IFS
    SHOCK-IFS
  • 17
    7517583 SCREW HEXAGON/CAP GR5-Y-SP
    SCREW HEXAGON/CAP GR5-Y-SP
  • 18
    7555832 WASHER
    WASHER
  • 19
    5133060 ARM STEERING MACHINED
    ARM STEERING MACHINED
  • 20
    7061109 ROD END (RIGHT)
    ROD END (RIGHT)
  • 21
    7555797 WASHER, FLAT
    WASHER, FLAT
  • 22
    1821260-293 TRAILING ARM SERVICE, ASSY (LEFT/I RED) (INCL. 25, 26)
    TRAILING ARM SERVICE, ASSY (LEFT/I RED) (INCL. 25, 26)
  • 22
    1821261-293 TRAILING ARM SERVICE, ASSY (RIGHT/I RED) (INCL. 25, 26)
    TRAILING ARM SERVICE, ASSY (RIGHT/I RED) (INCL. 25, 26)
  • 23
    7555820 WASHER, FLAT
    WASHER, FLAT
  • 24
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 25
    7061042 BEARING SPHERICAL, 7/16 PLASTIC
    BEARING SPHERICAL, 7/16 PLASTIC
  • 26
    7710437 RING, RETAINING
    RING, RETAINING
  • 27
    7512099 SCREW
    SCREW
  • 28
    3573909 BUSHING FLANGE
    BUSHING FLANGE
  • 29
    7080433 FITTING, LUBRICATION THREADED
    FITTING, LUBRICATION THREADED
  • 30
    5433814 BUSHING, TORSION BAR (9/16")
    BUSHING, TORSION BAR (9/16")
  • 31
    7621452 RIVET
    RIVET
  • 32
    5246871-067 BAR TORSION (BLACK)
    BAR TORSION (BLACK)
  • 33
    5412063 SLIDE SWAY BAR 9/16
    SLIDE SWAY BAR 9/16
  • 34
    7556509 BUSHING
    BUSHING
  • 35
    3574208 BUSHING, FLANGED
    BUSHING, FLANGED
  • 36
    6230225-067 SHAFT SPINDLE, W/STEER STOP (BLACK)
    SHAFT SPINDLE, W/STEER STOP (BLACK)
  • 37
    7080306 FITTING, LUBE. W/BALL CHECK
    FITTING, LUBE. W/BALL CHECK
  • 38
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 39
    7512410 BOLT
    BOLT
  • 40
    7556153 WASHER, 3/8 FW
    WASHER, 3/8 FW
  • 41
    7061103 ROD END 1/2 (RIGHT)
    ROD END 1/2 (RIGHT)
  • 42
    7542711 NUT JAM
    NUT JAM
  • 43
    5132953 TUBE RADIUS ROD (LOWER)
    TUBE RADIUS ROD (LOWER)
  • 44
    7547028 NUT JAM (LEFT)
    NUT JAM (LEFT)
  • 45
    7547216 NUT 1/2-70, NYLOK-GR8-Y
    NUT 1/2-70, NYLOK-GR8-Y
  • 46
    7061087 ROD END RADIUS (LEFT/LOWER)
    ROD END RADIUS (LEFT/LOWER)
  • 47
    7518041 BOLT HEXAGON CAP GR8-Y
    BOLT HEXAGON CAP GR8-Y
