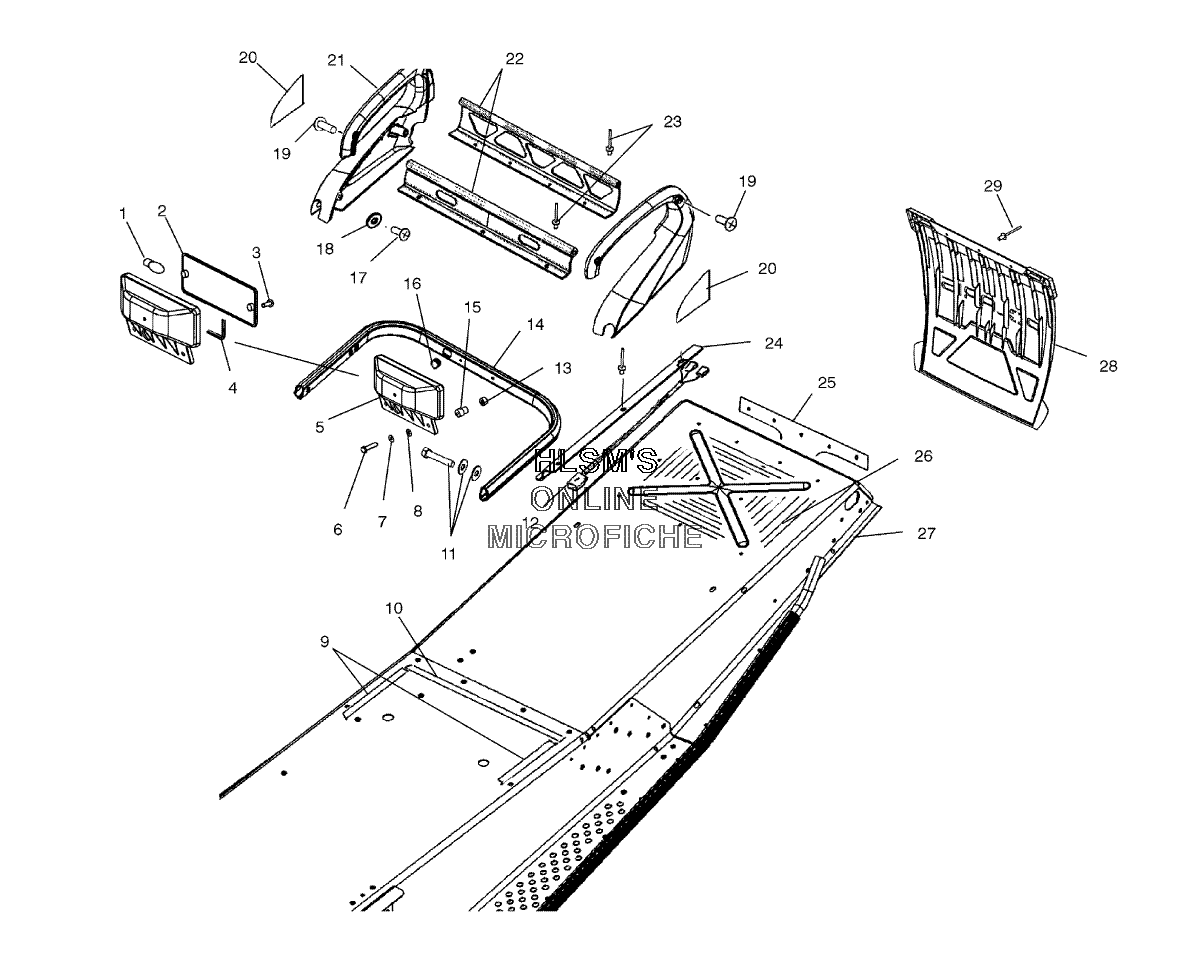

FRAME - CHASSIS #1 для Polaris 800 RMK 159 VERTICAL ESCAPE (S03NN8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    4030043 BULB
    BULB
  • 2
    4032014 LENS
    LENS
  • 3
    7518019 SCREW PUSH PIN/HI-LOW 2 (BLACK)
    SCREW PUSH PIN/HI-LOW 2 (BLACK)
  • 4
    4032015 GASKET
    GASKET
  • 5
    2410307 TAILLIGHT, ASSY (INCL. 1-4)
    TAILLIGHT, ASSY (INCL. 1-4)
  • 6
    7515140 SCREW
    SCREW
  • 7
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7556033 WASHER
    WASHER
  • 9
    5812290 GASKET SEAT BASE
    GASKET SEAT BASE
  • 10
    5812360 GASKET SEAT BASE (1/4")
    GASKET SEAT BASE (1/4")
  • 11
    7512113 BOLT
    BOLT
  • 11
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 11
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 12
    2461065 JUMPER SEAT, TAILLIGHT
    JUMPER SEAT, TAILLIGHT
  • 13
    7555916 WASHER, NYLON
    WASHER, NYLON
  • 14
    2632461-309 BUMPER, ASSY 151"/156" NATURAL (REAR)
    BUMPER, ASSY 151"/156" NATURAL (REAR)
  • 15
    3021186 MOUNT, RUBBER DURO 55
    MOUNT, RUBBER DURO 55
  • 16
    7081039 BUSHING SNAP (#2073)
    BUSHING SNAP (#2073)
  • 17
    7512094 SCREW
    SCREW
  • 18
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 19
    7517686 SCREW
    SCREW
  • 20
    7079667 DECAL REFLECTOR (RED/LEFT)
    DECAL REFLECTOR (RED/LEFT)
  • 20
    7079668 DECAL REFLECTOR (RED/RIGHT)
    DECAL REFLECTOR (RED/RIGHT)
  • 21
    2873764-216 SKIRT, SNOW RMK (SCREW YELLOW) (6, 7, 8)
    SKIRT, SNOW RMK (SCREW YELLOW) (6, 7, 8)
  • 22
    5133058 RACK MACHINED (FRONT)
    RACK MACHINED (FRONT)
  • 22
    5133059 RACK MACHINED (REAR)
    RACK MACHINED (REAR)
  • 23
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 24
    5245726 GUARD WIRE TAILLIGHT (INCL. RIVETS)
    GUARD WIRE TAILLIGHT (INCL. RIVETS)
  • 24
    7661079 RIVET
    RIVET
  • 25
    5812229 SUPPORT SNOW FLAP
    SUPPORT SNOW FLAP
  • 26
    5412033 PROTECTOR BED (FRONT/REAR
    PROTECTOR BED (FRONT/REAR
  • 26
    5412074 PROTECTOR, BED (LEFT)
    PROTECTOR, BED (LEFT)
  • 26
    5412134 PROTECTOR, BED (RIGHT)
    PROTECTOR, BED (RIGHT)
  • 27
    2202378 RMK CLOSEOFF, ASSY 151"/156"/159"
    RMK CLOSEOFF, ASSY 151"/156"/159"
  • 28
    5434356-1106 FLAP, SNOW (BLACK W/WHITE)
    FLAP, SNOW (BLACK W/WHITE)
  • 29
    7621418 RIVET, POP
    RIVET, POP
