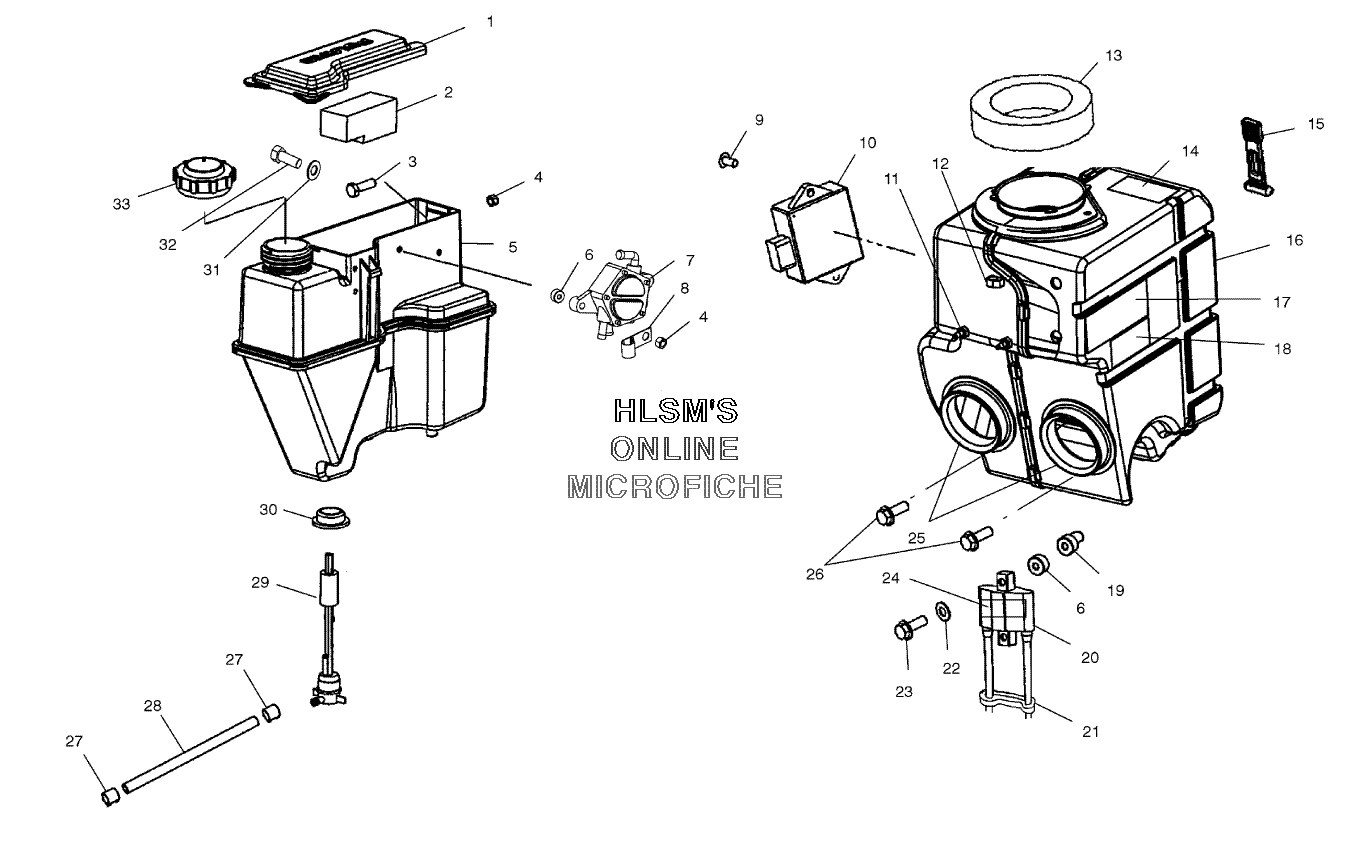

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 800 RMK 159 VERTICAL ESCAPE (S03NN8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5434089 COVER TOOL BOX
    COVER TOOL BOX
  • 2
    5812209 FOAM
    FOAM
  • 3
    7512297 SCREW
    SCREW
  • 4
    7542122 NUT NYLOK
    NUT NYLOK
  • 5
    1253453 WELD, OIL BOTTLE/TOOL BOX W/MOUNT (INCL. 1, 29)
    WELD, OIL BOTTLE/TOOL BOX W/MOUNT (INCL. 1, 29)
  • 5
    1261199 WELD OIL BOTTLE/TOOL BOX W/MOUNT
    WELD OIL BOTTLE/TOOL BOX W/MOUNT
  • 6
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 8
    7081069 CLIP-J
    CLIP-J
  • 9
    7512095 SCREW
    SCREW
  • 11
    7052127 FITTING, HOSE
    FITTING, HOSE
  • 12
    7670102 CLIP
    CLIP
  • 13
    5811983 FOAM, CHIMNEY
    FOAM, CHIMNEY
  • 14
    7075351 DECAL, CAUTION
    DECAL, CAUTION
  • 15
    5433150 STRAP
    STRAP
  • 16
    1253479 AIR SILENCER, ASSY EDGE (INCL. 25 & DECALS)
    AIR SILENCER, ASSY EDGE (INCL. 25 & DECALS)
  • 17
    7073820 DECAL, ADJUST DRIVEN CLUTCH
    DECAL, ADJUST DRIVEN CLUTCH
  • 18
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 19
    7547103 NUT WELL
    NUT WELL
  • 21
    7080471 CLIP, IGNITION CABLE
    CLIP, IGNITION CABLE
  • 22
    7552604 WASHER
    WASHER
  • 23
    7517610 SCREW
    SCREW
  • 24
    7077026 DECAL, SPARKPLUG REC.
    DECAL, SPARKPLUG REC.
  • 25
    5412157 BOOT CARBURETOR 70 DURO
    BOOT CARBURETOR 70 DURO
  • 26
    7511862 SCREW
    SCREW
  • 27
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    8450003-1525 LINE, FUEL (1/4 ID/1525 CM.)
    LINE, FUEL (1/4 ID/1525 CM.)
  • 29
    4010660 SENDER OIL, W/FRONT TERMINALS
    SENDER OIL, W/FRONT TERMINALS
  • 30
    7052305 GROMMET OIL SENDER
    GROMMET OIL SENDER
  • 31
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 32
    7512163 BOLT
    BOLT
  • 33
    1240094 CAP OIL, VENTED/CUSTOM COLOR
    CAP OIL, VENTED/CUSTOM COLOR
