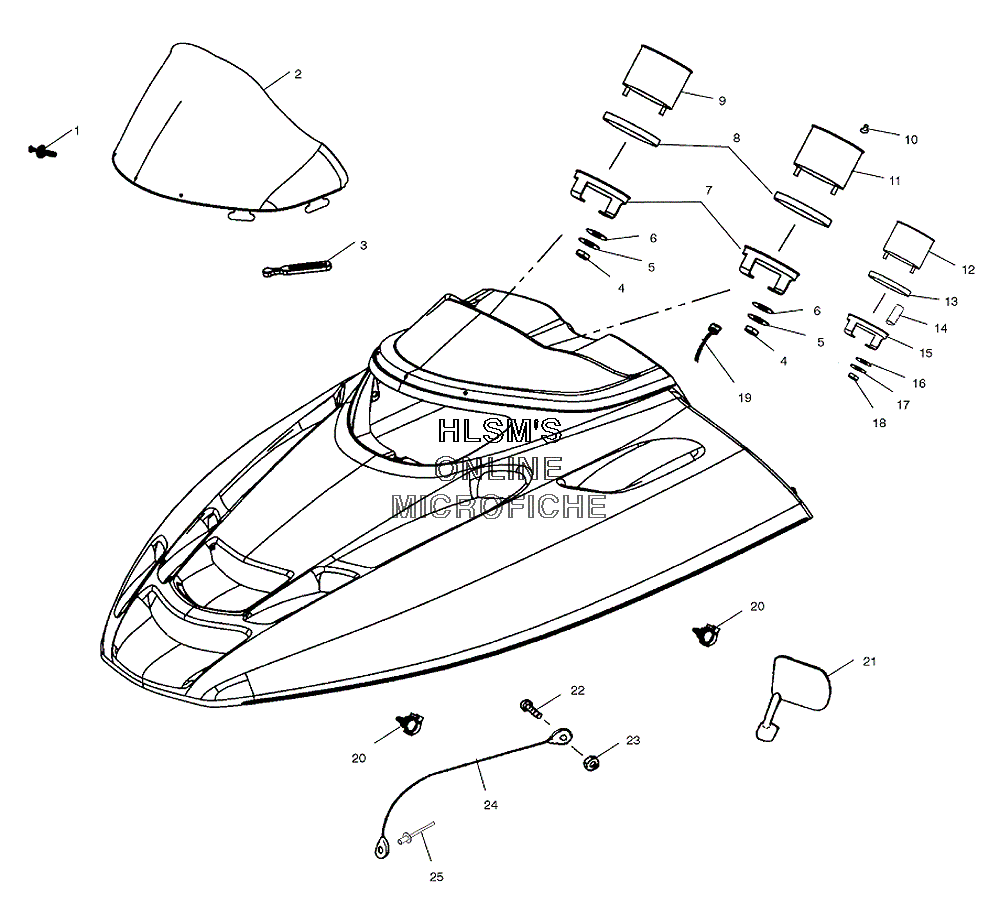

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25433517 WINDSHIELD, EDGE SMOKE (15")WINDSHIELD, EDGE SMOKE (15")
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280158 NUTNUT
-
53280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
63280157 WASHER, FLATWASHER, FLAT
-
73280210 BRACKET, TACHOMETER/SPEEDOMETER (5")BRACKET, TACHOMETER/SPEEDOMETER (5")
-
83280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
93280413 TACHOMETER, 5" 6P W/REV (WHITE/BLACK)TACHOMETER, 5" 6P W/REV (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280186 KNOB, TRIPODOMETER (THREADED LEFT)KNOB, TRIPODOMETER (THREADED LEFT)
-
113280411 SPEEDOMETER ASSY, 5" 120MPH (WHITE/BLACK W/ORANGE)SPEEDOMETER ASSY, 5" 120MPH (WHITE/BLACK W/ORANGE)
-
114030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
123280410 FUEL GAUGE ASSY, 2" BACK LIGHT (WHITE/BLACK)FUEL GAUGE ASSY, 2" BACK LIGHT (WHITE/BLACK)
-
124060139 FUSEFUSE
-
133280230 CUSHION, FUELGAUGE (2") (RUBBER)CUSHION, FUELGAUGE (2") (RUBBER)
-
143280228 SPACER, BRACKET (FUEL GAUGE)SPACER, BRACKET (FUEL GAUGE)
-
153280229 BRACKET, FUELGAUGE (2")BRACKET, FUELGAUGE (2")
-
163280231 WASHERWASHER
-
173280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
183280232 NUTNUT
-
193280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
204010589 CLIP, PLASTIC, DART NYLONCLIP, PLASTIC, DART NYLON
-
212632246-070 MIRROR ASSY (LEFT/BLACK)MIRROR ASSY (LEFT/BLACK)
-
212632247-070 MIRROR ASSY (RIGHT/BLACK)MIRROR ASSY (RIGHT/BLACK)
-
217556088 WASHER, FLATWASHER, FLAT
-
217546703 NUT, NYLOKNUT, NYLOK
-
227512018 SCREWSCREW
-
237541925 NUT, NYLOK (10 24 Y)NUT, NYLOK (10 24 Y)
-
247080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
257661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
