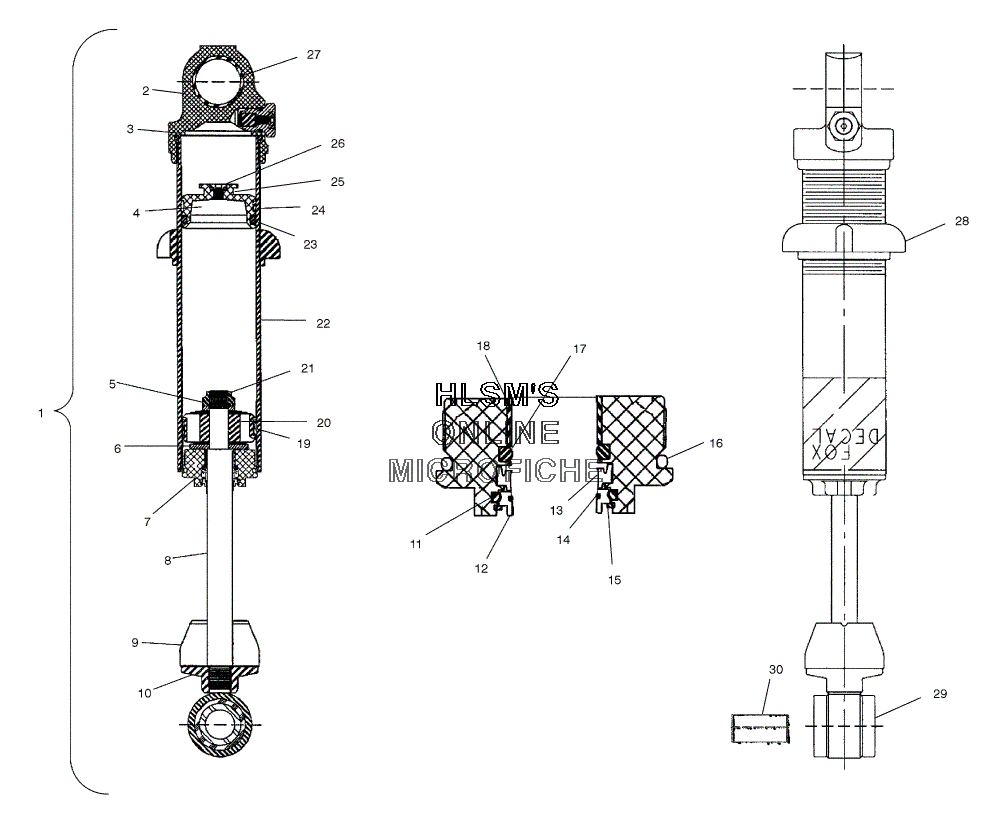

SUSPENSION - FRONT SHOCK TRACK для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17042223 SHOCK, FRONT TRACK (M-10)SHOCK, FRONT TRACK (M-10)
-
21500443 BODY CAP ASSYBODY CAP ASSY
-
31500108 O-RING (103W 1.549ID)O-RING (103W 1.549ID)
-
41500187 PISTON FLOATINGPISTON FLOATING
-
51500015 PLATE, BACKUPPLATE, BACKUP
-
61500017 PLATE, TOP (OUTER)PLATE, TOP (OUTER)
-
71500490 BEARING ASSYBEARING ASSY
-
81500247 SHAFTSHAFT
-
91500441 BUMPER (.498 ID X .883 TLG)BUMPER (.498 ID X .883 TLG)
-
101500164 EYELET, BASEEYELET, BASE
-
111500483 O-RING (.103X.73ID)O-RING (.103X.73ID)
-
121500485 SCRAPER FIST (BRONZE)SCRAPER FIST (BRONZE)
-
131500266 U CUP 4300 URETHU CUP 4300 URETH
-
141500484 O-RING (14MM IDX1 MM)O-RING (14MM IDX1 MM)
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500228 O-RINGO-RING
-
171500127 O-RINGO-RING
-
181500488 BEARING (.5 IDX.5 TLG)BEARING (.5 IDX.5 TLG)
-
191500002 BEARING, PISTONBEARING, PISTON
-
202200618 VALVE PISTON KITVALVE PISTON KIT
-
211500016 NUT, LOCKNUT, LOCK
-
221500458 BODY ASSYBODY ASSY
-
231500003 O-RING, ENDCAPO-RING, ENDCAP
-
241500006 BEARING, EXTERNALBEARING, EXTERNAL
-
251500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
261500018 SCREWSCREW
-
271500444 BEARING RBCBEARING RBC
-
285432304 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
291500309 BUSHING (.35ILG, .595TLG)BUSHING (.35ILG, .595TLG)
-
301500310 SLEEVESLEEVE
