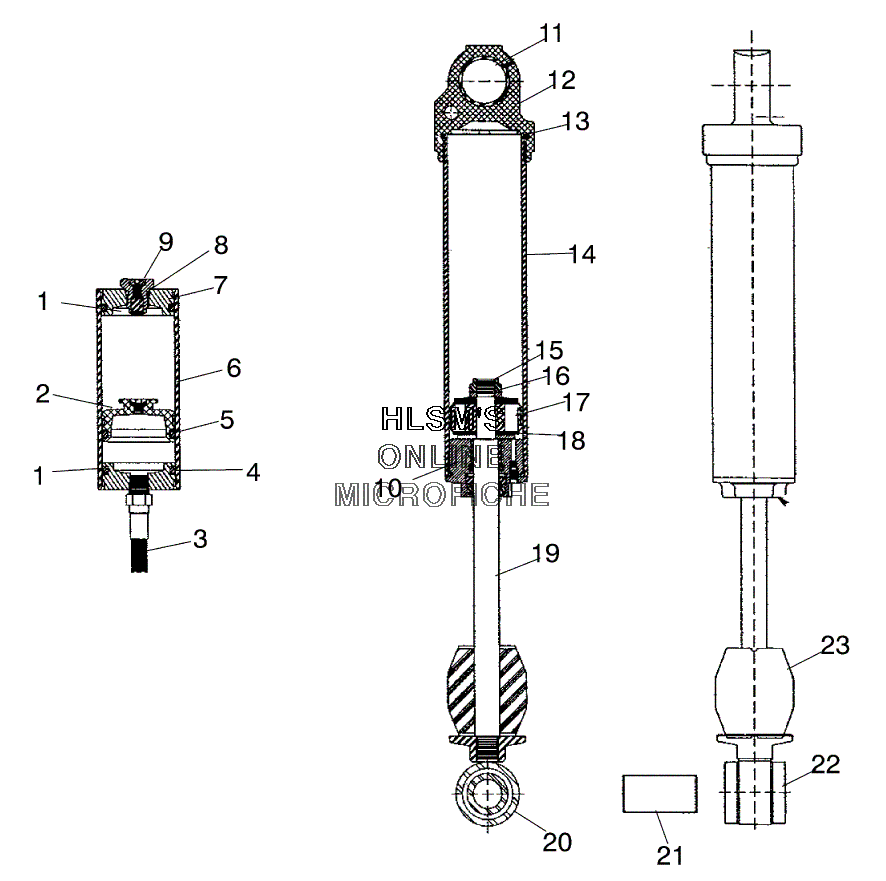

SUSPENSION - REAR SHOCK TRACK для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска
-
№АртикулНазвание
-
11500450 SEAL, O-RINGSEAL, O-RING
-
21500187 PISTON, FLOATINGPISTON, FLOATING
-
31500445 HOSE, 14.00 TLGHOSE, 14.00 TLG
-
41500163 ENDCAP ASSY, RESERVOIRENDCAP ASSY, RESERVOIR
-
51500003 O-RING, ENDCAPO-RING, ENDCAP
-
61500451 BODY ASSYBODY ASSY
-
71500160 RESERVOIR, ENDCAP ASSYRESERVOIR, ENDCAP ASSY
-
81500023 O-RING (OUTER)O-RING (OUTER)
-
91500014 VALVE ASSY, AIRVALVE ASSY, AIR
-
101500186 BEARING ASSEMBLYBEARING ASSEMBLY
-
101500266 U CUP 4300 URETH (036-01-006)U CUP 4300 URETH (036-01-006)
-
101500268 SEAL, WIPER URETHANESEAL, WIPER URETHANE
-
101500021 O-RING (INNER)O-RING (INNER)
-
101500020 O-RING (.103W-1.299ID)O-RING (.103W-1.299ID)
-
101500070 SCREWSCREW
-
101500071 BALL (FOX)BALL (FOX)
-
111500444 BEARING RBCBEARING RBC
-
121500448 BODY CAP ASSYBODY CAP ASSY
-
131500108 O-RING (.103W 1.549ID)O-RING (.103W 1.549ID)
-
141500446 BODY, THREADED (6.825 TLG, .58)BODY, THREADED (6.825 TLG, .58)
-
151500016 NUT, LOCKNUT, LOCK
-
161500015 PLATE, BACKUPPLATE, BACKUP
-
171500002 BEARING, PISTONBEARING, PISTON
-
181500017 PLATE, TOP OUTPLATE, TOP OUT
-
191500447 SHAFT (.498 X 7.525 TLG)SHAFT (.498 X 7.525 TLG)
-
201500164 EYELET, BASEEYELET, BASE
-
211500310 SLEEVESLEEVE
-
221500309 BUSHING (.35ILG, .595TLG)BUSHING (.35ILG, .595TLG)
-
235410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
237041934 SHOCK TRACK (REAR)SHOCK TRACK (REAR)
-
231500449 RESERVIOR, NON ADJUST ASSY (1.459)RESERVIOR, NON ADJUST ASSY (1.459)
