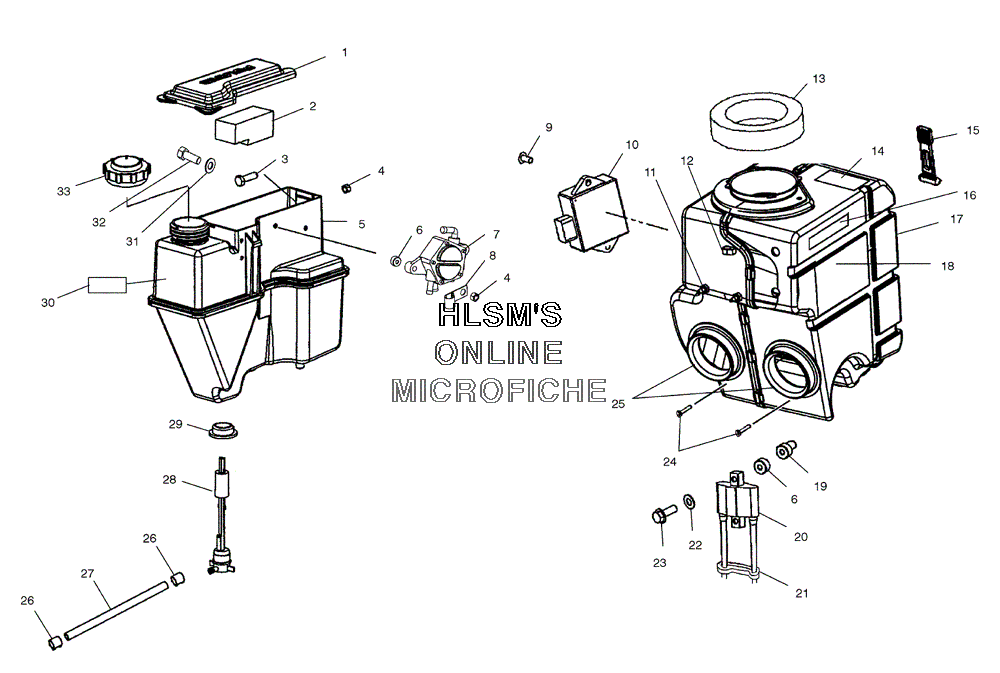

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска
-
№АртикулНазвание
-
15434089 COVER, TOOL BOXCOVER, TOOL BOX
-
25812209 FOAMFOAM
-
37512297 SCREWSCREW
-
47542122 NUT, NYLOKNUT, NYLOK
-
51253453 WELD, OIL BOTTLE/TOOL BOS W/MOUNT (INCL. 1, 28)WELD, OIL BOTTLE/TOOL BOS W/MOUNT (INCL. 1, 28)
-
51261199 WELD, OIL BOTTLE/TOOL BOX W/MNTWELD, OIL BOTTLE/TOOL BOX W/MNT
-
67555932 WASHER, NYLONWASHER, NYLON
-
87081069 CLIP-JCLIP-J
-
97512095 SCREWSCREW
-
117052127 FITTING, HOSEFITTING, HOSE
-
127670102 CLIPCLIP
-
135811983 FOAM, CHIMNEYFOAM, CHIMNEY
-
147075351 DECAL, CAUTIONDECAL, CAUTION
-
155433150 STRAPSTRAP
-
167073426 DECAL, GREASINGDECAL, GREASING
-
171253501 AIR SILENCER ASSY (INCL. 25 & DECALS)AIR SILENCER ASSY (INCL. 25 & DECALS)
-
187079934 DECAL, E/R BELT REM/SHEAVE ADJUSTDECAL, E/R BELT REM/SHEAVE ADJUST
-
197547103 NUT, WELLNUT, WELL
-
217080471 CLIP, IGNITION CABLECLIP, IGNITION CABLE
-
227552604 WASHERWASHER
-
237517610 SCREWSCREW
-
247511862 SCREWSCREW
-
255412157 BOOT, CARBURETOR 70 DUROBOOT, CARBURETOR 70 DURO
-
267080307 CLAMP, HOSECLAMP, HOSE
-
278450003-1525 LINE, FUEL (1/4 ID) (1525 CM.)LINE, FUEL (1/4 ID) (1525 CM.)
-
284010660 SENDER, OIL W/FRONT TERMINALSSENDER, OIL W/FRONT TERMINALS
-
297052305 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
307079003 DECAL, OIL VESDECAL, OIL VES
-
317555859 WASHER, FLATWASHER, FLAT
-
327512163 BOLTBOLT
-
331240094 CAP, OIL VENTED (CUSTOM COLOR)CAP, OIL VENTED (CUSTOM COLOR)
