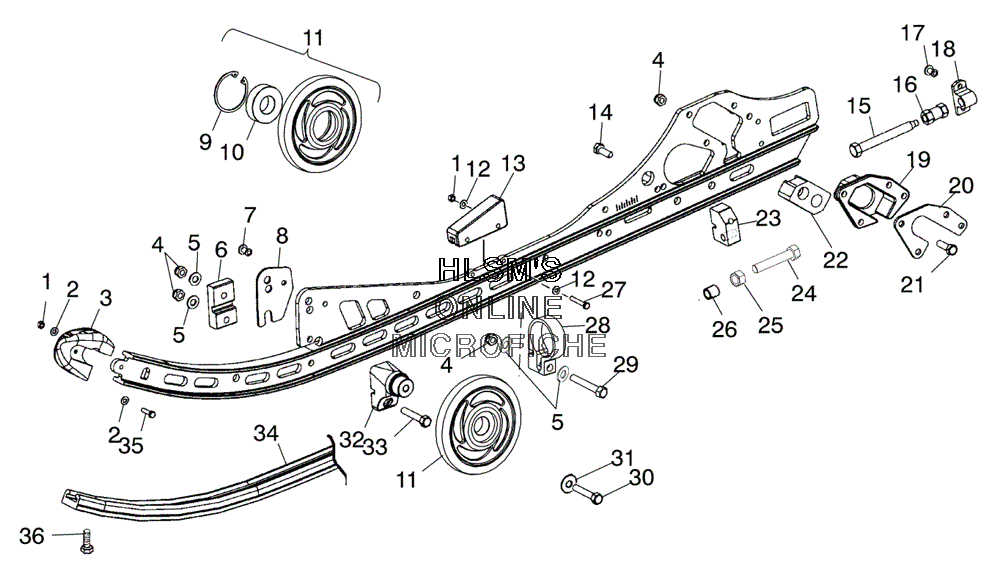

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK (10-24 Y)
    NUT, NYLOK (10-24 Y)
  • 2
    7555792 WASHER
    WASHER
  • 3
    5434374 CAP RAIL TIP
    CAP RAIL TIP
  • 4
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 5
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 6
    5132577 BLOCK, RAIL SUPPORT
    BLOCK, RAIL SUPPORT
  • 7
    7661845 RIVET
    RIVET
  • 8
    5244651 PLATE, RAIL SUPPORT
    PLATE, RAIL SUPPORT
  • 9
    7718407 RING RETAINING (1 PER WHEEL)
    RING RETAINING (1 PER WHEEL)
  • 10
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 11
    1590275-244 WHEEL SCRLLD ASSY (BRIGHT SILVER METALLIC) (INCL. 9, 10)
    WHEEL SCRLLD ASSY (BRIGHT SILVER METALLIC) (INCL. 9, 10)
  • 12
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 13
    5411947 BUMPER JOUNCE, RAIL
    BUMPER JOUNCE, RAIL
  • 14
    7512392 BOLT
    BOLT
  • 15
    7517773 SCREW, HEXAGON
    SCREW, HEXAGON
  • 16
    5132712 NUT, TENSION ADJUST
    NUT, TENSION ADJUST
  • 17
    7621501 RIVET
    RIVET
  • 18
    5132611 BLOCK, IDLER BOLT ADJUST THIN
    BLOCK, IDLER BOLT ADJUST THIN
  • 19
    5631188 GUIDE SLIDER, CAST (LEFT)
    GUIDE SLIDER, CAST (LEFT)
  • 19
    5631189 GUIDE SLIDER, CAST (RIGHT)
    GUIDE SLIDER, CAST (RIGHT)
  • 20
    5245045 PLATE COUPLER BLOCK
    PLATE COUPLER BLOCK
  • 21
    7512310 SCREW
    SCREW
  • 22
    5434239 BLOCK, SLIDER LONG (M-10) (LEFT)
    BLOCK, SLIDER LONG (M-10) (LEFT)
  • 22
    5434240 BLOCK, SLIDER LONG (M-10) (RIGHT)
    BLOCK, SLIDER LONG (M-10) (RIGHT)
  • 23
    5132584 BLOCK, SHOCK PIVOT THREADED
    BLOCK, SHOCK PIVOT THREADED
  • 24
    7515511 SCREW
    SCREW
  • 25
    7542404 NUT
    NUT
  • 26
    5133009 SPACER
    SPACER
  • 27
    7511967 BOLT
    BOLT
  • 28
    5132832 CLAMP, RESERVIOR
    CLAMP, RESERVIOR
  • 29
    7515319 BOLT
    BOLT
  • 30
    7515382 BOLT
    BOLT
  • 31
    7556179 WASHER SPRING, CON
    WASHER SPRING, CON
  • 32
    5631065 BLOCK WHEEL MOUNT, LWT
    BLOCK WHEEL MOUNT, LWT
  • 33
    7512329 BOLT
    BOLT
  • 34
    5521571 SLIDER, XL SERVICE BASIC
    SLIDER, XL SERVICE BASIC
  • 35
    7511975 SCREW
    SCREW
  • 36
    7515199 SCREW
    SCREW
  • 36
    1541676-309 RAIL ASSY (LEFT) (M-10) (INCL. 1-3, 13, 17, 18, 27, 35)
    RAIL ASSY (LEFT) (M-10) (INCL. 1-3, 13, 17, 18, 27, 35)
  • 36
    1541677-309 RAIL ASSY (RIGHT) (M-10) (INCL. 1-3, 13, 17, 18, 27, 35)
    RAIL ASSY (RIGHT) (M-10) (INCL. 1-3, 13, 17, 18, 27, 35)
