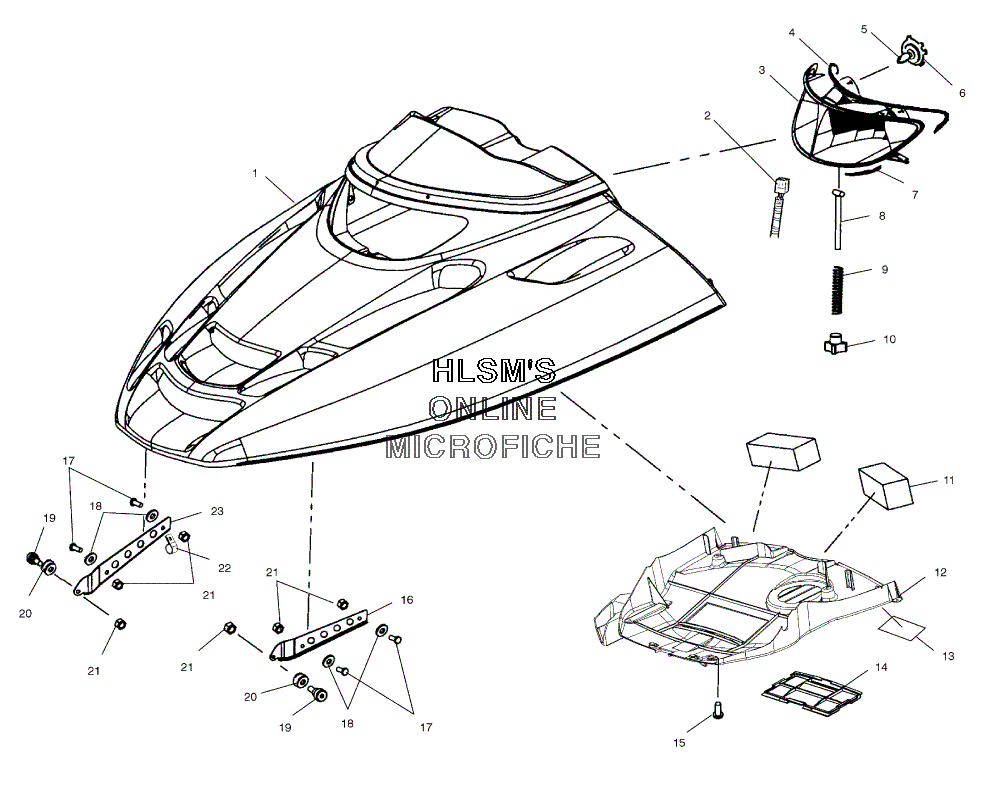

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 700 CLASSIC (S03ND7CS) - 2003 года выпуска`
-
№АртикулНазвание
-
12632521-382 HOOD, EDGE, 2H SERVICE (SILVER)HOOD, EDGE, 2H SERVICE (SILVER)
-
22461015 HARNESS HEADLIGHT (E/R)HARNESS HEADLIGHT (E/R)
-
32410132 HEADLAMP ASSY, 2 BULB (INCL. BULBS)HEADLAMP ASSY, 2 BULB (INCL. BULBS)
-
45812175 SEAL, HEADLIGHT ONE PIECESEAL, HEADLIGHT ONE PIECE
-
52870448 BULB, QUARTZ HEADLIGHT (H4, 60/55W)BULB, QUARTZ HEADLIGHT (H4, 60/55W)
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 SEAL, HEADLIGHT ONE PIECESEAL, HEADLIGHT ONE PIECE
-
87517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
97041954 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632491 PLENUM ASSY, FOILPLENUM ASSY, FOIL
-
125812324 FOILFOIL
-
125811948 FOILFOIL
-
137170931 DECAL, SUSPENSION SET UP (M-10)DECAL, SUSPENSION SET UP (M-10)
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/BLACK/LEFT)HINGE (UPPER/BLACK/LEFT)
-
177512240 BOLTBOLT
-
187558301 WASHER, FLATWASHER, FLAT
-
197512113 BOLTBOLT
-
205332403 SPACERSPACER
-
217542122 NUT, NYLOKNUT, NYLOK
-
227080367 CLAMP, CABLECLAMP, CABLE
-
235243568-067 HINGE (UPPER/BLACK/RIGHT)HINGE (UPPER/BLACK/RIGHT)
