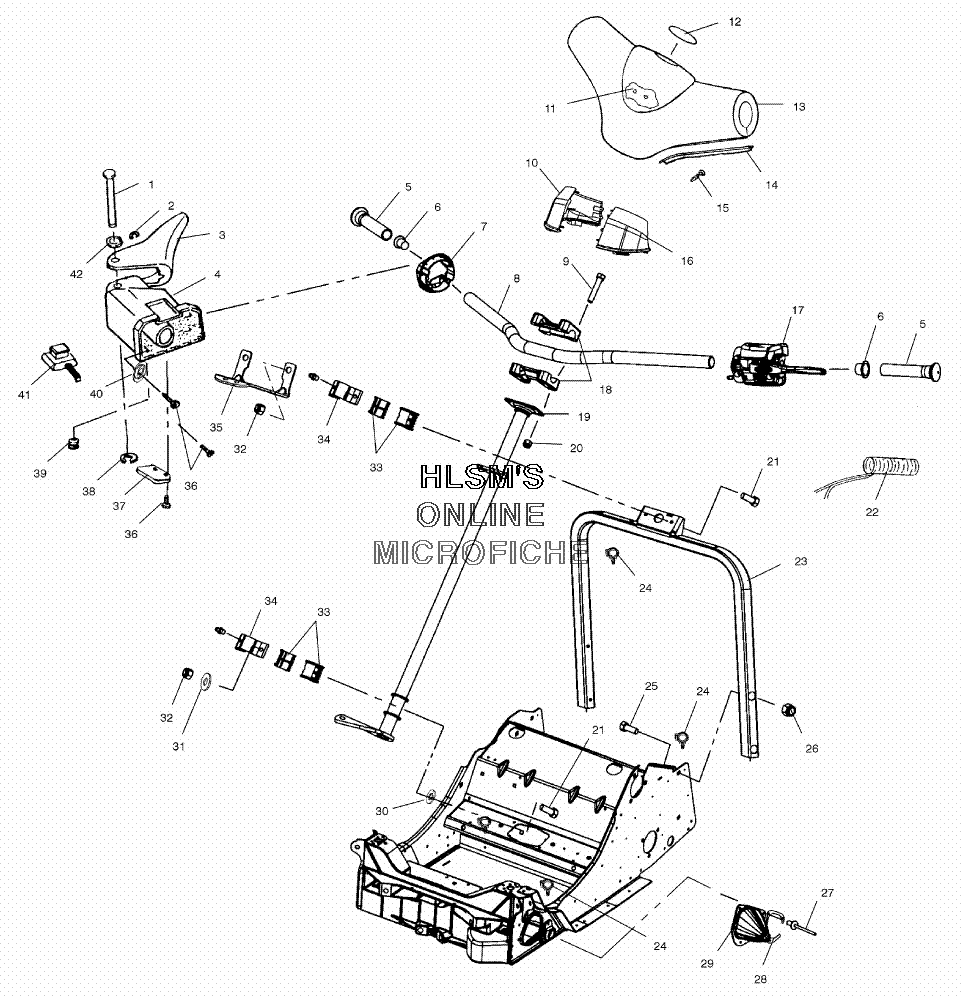

STEERING ASSY. W/ HANDLEBAR для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17661624 PIN, RETAININGPIN, RETAINING
-
27710503 RETAINING RINGRETAINING RING
-
35432970 THROTLE, LEVER, 35.5MMTHROTLE, LEVER, 35.5MM
-
32010171 LEVER ASSY., HTR, HI/LO 35.5MMLEVER ASSY., HTR, HI/LO 35.5MM
-
45431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
55432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
65431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
75433345 ADAPTER, BLOCK, THROTTLEADAPTER, BLOCK, THROTTLE
-
85243355-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
97517238 SCREWSCREW
-
105434488 COLLAR, CONSOLE, STD (RIGHT)COLLAR, CONSOLE, STD (RIGHT)
-
117670106 NUT, PUSH ON, .170, .180, YNUT, PUSH ON, .170, .180, Y
-
125434179 EMBLEM, ''STAR'' PLM.BEZEL, HNDLBREMBLEM, ''STAR'' PLM.BEZEL, HNDLBR
-
135433159-070 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
145433160-070 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
154010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
165434487 COLLAR, CONSOLE, STD (LEFT)COLLAR, CONSOLE, STD (LEFT)
-
185630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
191820965-067 WELD, STEERING POST (BLACK)WELD, STEERING POST (BLACK)
-
207542122 NUT, NYLOKNUT, NYLOK
-
217517579 BOLT, CARR 5/16, X1''GR5 Y LOBOLT, CARR 5/16, X1''GR5 Y LO
-
222460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
231013776-067 WELD, STEERING HOOP (BLACK)WELD, STEERING HOOP (BLACK)
-
244020139 CLIP, PLASTICCLIP, PLASTIC
-
257512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
267542343 NUT, FLANGENUT, FLANGE
-
277621433 RIVETRIVET
-
285244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
295433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
295433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
307547030 PALNUTPALNUT
-
317558402 WASHER FLATWASHER FLAT
-
327542324 NUT, NYLOKNUT, NYLOK
-
335432785 BUSHING, STEER.POSTBUSHING, STEER.POST
-
345133648 BRACKET, STEERING POST, MODBRACKET, STEERING POST, MOD
-
347080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
355245354 BRACKET, CONSOLE, FRONT NECK, STDBRACKET, CONSOLE, FRONT NECK, STD
-
367511848 SCREWSCREW
-
375432261 HOLDER, WIREHOLDER, WIRE
-
387710401 RING, RETAININGRING, RETAINING
-
397512465 SCREW, SETSCREW, SET
-
407555727 RIVET BURRRIVET BURR
-
414110106 SWITCH, AUX.SHUT, OFFSWITCH, AUX.SHUT, OFF
-
427555730 WASHERWASHER
