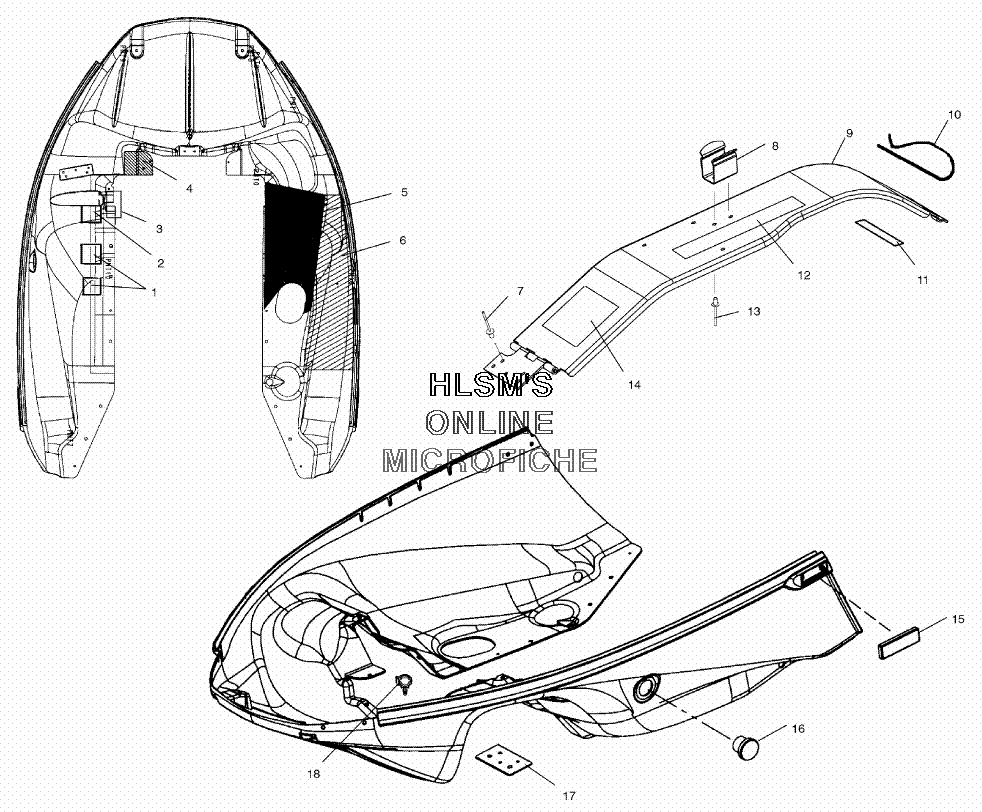

NOSEPAN ASSEMBLY #1 для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17670130 SPD, CLIP, ''U'' TYPE (C, 53791, 014)SPD, CLIP, ''U'' TYPE (C, 53791, 014)
-
27080963 RETAIN''J''CLPRETAIN''J''CLP
-
27621462 RIVETRIVET
-
35811948 FOIL, 4.5X1.0FOIL, 4.5X1.0
-
45812020 FOIL, TAPEFOIL, TAPE
-
55812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
65812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
77621402 POP RIVETPOP RIVET
-
85222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
91013069 CLUTCH GUARD, ASSY.CLUTCH GUARD, ASSY.
-
107080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
115812352 PAD, CLUTCH GUARDPAD, CLUTCH GUARD
-
127075350 DECAL 97, 99 ENG/CLUTCHDECAL 97, 99 ENG/CLUTCH
-
137621429 RIVETRIVET
-
147170046 DECAL, TRBL SHOOT, EDGE PPSDECAL, TRBL SHOOT, EDGE PPS
-
152670134 REFLECTOR ASSY. (AMBER)REFLECTOR ASSY. (AMBER)
-
165433926 PLUG, OBLONGPLUG, OBLONG
-
175211722 PLATE, BACKERPLATE, BACKER
-
184020139 CLIP, PLASTICCLIP, PLASTIC
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CHAINCASE ASSEMBLY
- CHASSIS
- CLUTCH- DRIVE
- CLUTCH- DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSY.
- CYLINDER ASSY.
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL- MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- • NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- REAR TORQUE ARM
- RECOIL STARTER
- SEAT AND GAS TANK
- SHOCK (FOX) (IFS)
- SKI
- STARTING MOTOR
- STEERING ASSY. W/ HANDLEBAR
- STEERING LINKAGE
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - REAR TRACK SHOCK
- SUSPENSION- FRONT
- SUSPENSION- FRONT TORQUE ARM ASSEMBLY
- SUSPENSION/TRACK
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
