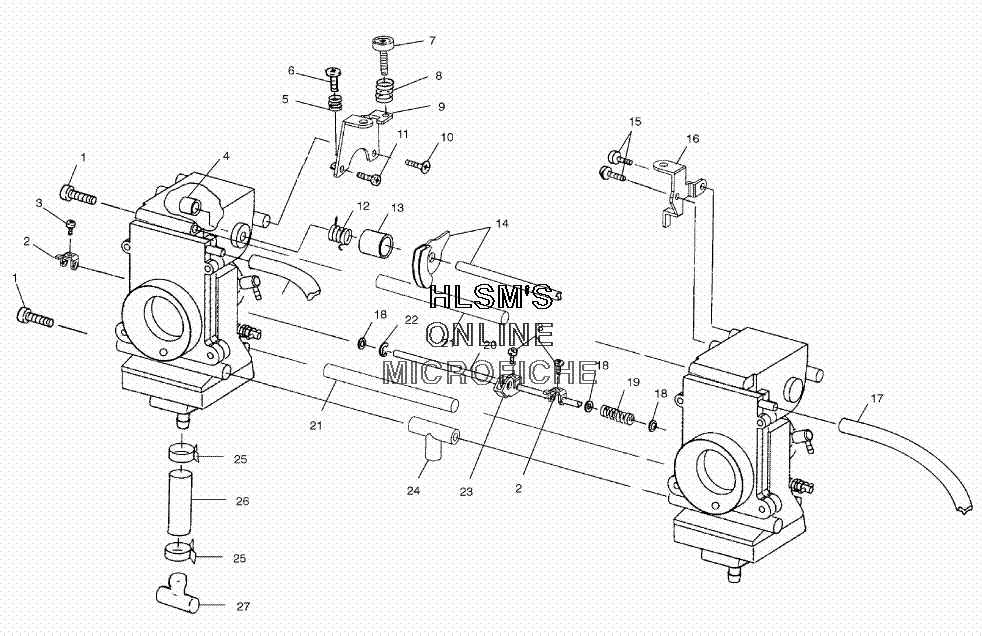

CARBURETOR LINKAGE для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска
-
№АртикулНазвание
-
13130834 BOLT, RACKBOLT, RACK
-
23130832 LEVER, STARTERLEVER, STARTER
-
33130833 SCREW, STARTERSCREW, STARTER
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73131285 ADJUSTERADJUSTER
-
83131284 SPRINGSPRING
-
93131380 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130950 SPRINGSPRING
-
133130853 RINGRING
-
143131370 SHAFT ASSY.SHAFT ASSY.
-
153130821 SCREWSCREW
-
163130820 BRACKETBRACKET
-
173130826 HOSEHOSE
-
183130842 PACKING, STARTER SHAFTPACKING, STARTER SHAFT
-
193130841 SPRING, STARTER SHAFTSPRING, STARTER SHAFT
-
203130840 SHAFTSHAFT
-
213130852 RING, RACKRING, RACK
-
223130839 E-RINGE-RING
-
233130819 LEVER, STARTERLEVER, STARTER
-
243131374 NIPPLE ASSY.NIPPLE ASSY.
-
257080003 CLAMP, HOSECLAMP, HOSE
-
268350017-600 FUEL, LINE, ETHER (RED) 5/16''FUEL, LINE, ETHER (RED) 5/16''
-
275431893 PLUG, TRAPPLUG, TRAP
