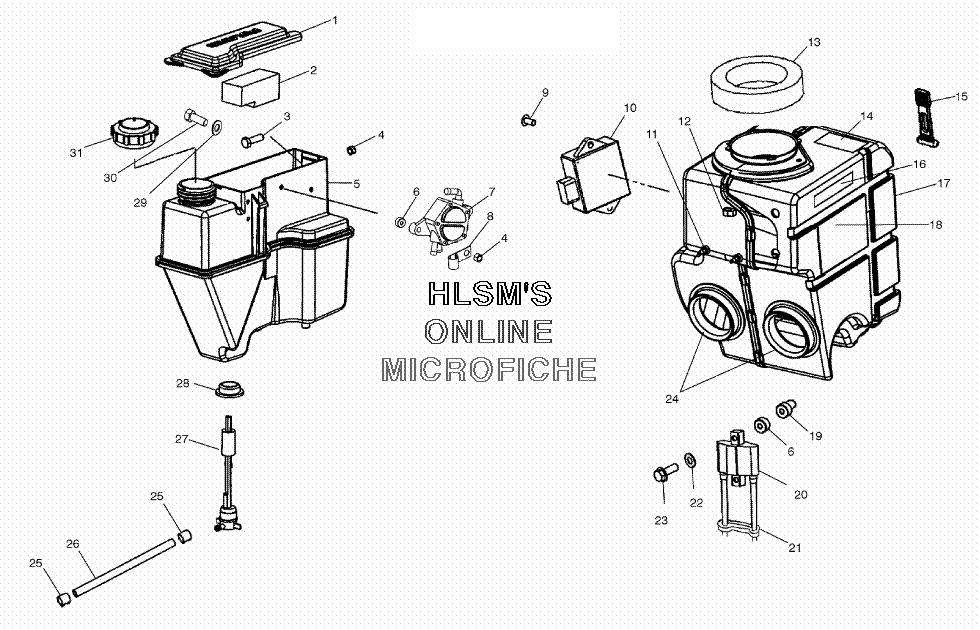

OIL TANK W/ AIR BOX для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5434089 COVER, TOOL BOX
    COVER, TOOL BOX
  • 2
    5812209 FOAM
    FOAM
  • 3
    7512297 SCREW
    SCREW
  • 4
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 5
    1253453 WELD, OIL BOTTLE/TOOL BOX W/MNT (INCL. 1, 27, 28)
    WELD, OIL BOTTLE/TOOL BOX W/MNT (INCL. 1, 27, 28)
  • 5
    1261199 WELD, OIL BOTTLE/TOOL BOX W/MNT
    WELD, OIL BOTTLE/TOOL BOX W/MNT
  • 6
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 8
    7081069 CLIP, J
    CLIP, J
  • 9
    7512095 SCREW
    SCREW
  • 11
    7052127 FITTING, HOSE
    FITTING, HOSE
  • 12
    7670102 CLIP
    CLIP
  • 13
    5811983 FOAM, CHIMNEY
    FOAM, CHIMNEY
  • 14
    7075351 DECAL, CAUTION
    DECAL, CAUTION
  • 15
    5433150 STRAP
    STRAP
  • 16
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 17
    1253498 AIR SILENCER ASSY., EDGE (INCL. 24 AND DECALS)
    AIR SILENCER ASSY., EDGE (INCL. 24 AND DECALS)
  • 18
    7079934 DECAL, E/R BELT REM/SHEAVE ADJ
    DECAL, E/R BELT REM/SHEAVE ADJ
  • 19
    7547103 NUT, WELL
    NUT, WELL
  • 21
    7080471 T, CLIP
    T, CLIP
  • 22
    7552604 WASHER
    WASHER
  • 23
    7517610 SCREW
    SCREW
  • 24
    5412169 BOOT, CARB, 70 DURO
    BOOT, CARB, 70 DURO
  • 25
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    8450003-1525 FUEL LINE, 1/4 ID (1525 CM.)
    FUEL LINE, 1/4 ID (1525 CM.)
  • 27
    4010660 SENDER, OIL, W/ FRONT TERMINALS
    SENDER, OIL, W/ FRONT TERMINALS
  • 28
    7052305 GROMMET, OIL SENDER
    GROMMET, OIL SENDER
  • 29
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 30
    7512163 BOLT
    BOLT
  • 31
    1240094 CAP, OIL, VENTED/CUSTOM COLOR
    CAP, OIL, VENTED/CUSTOM COLOR
