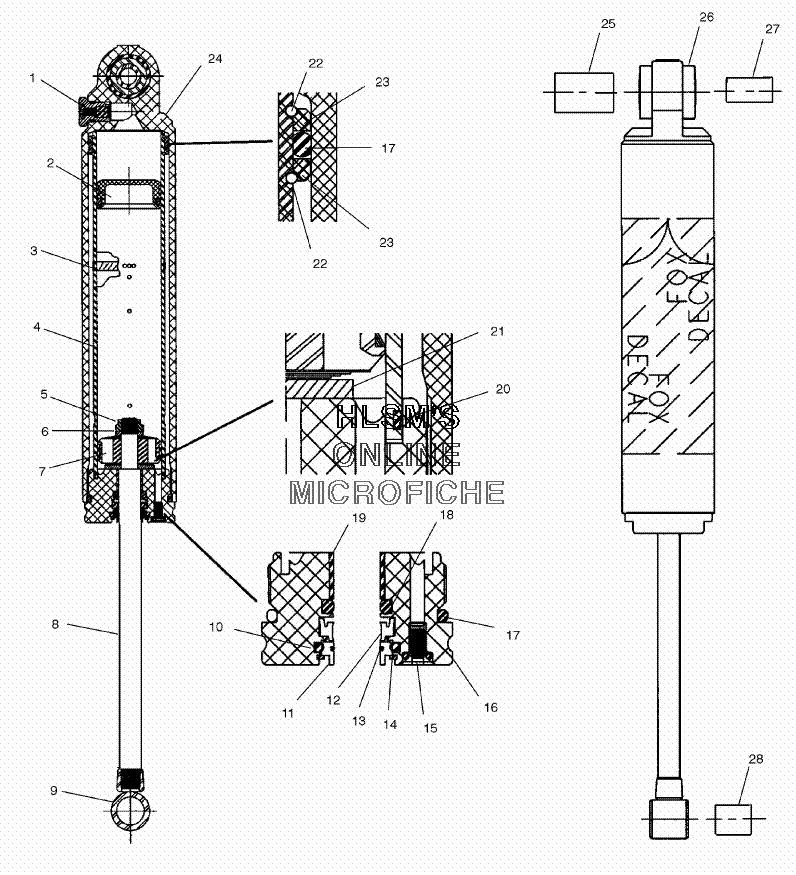

SUSPENSION - REAR TRACK SHOCK для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1500295 SCREW, #10, 24X.375 800, 10, 000
    SCREW, #10, 24X.375 800, 10, 000
  • 1
    1500022 O-RING, DRUM OUTER
    O-RING, DRUM OUTER
  • 2
    1500481 FLOATING PISTON ASSY.
    FLOATING PISTON ASSY.
  • 2
    1500006 RING, PISTON, FLOATING, FOX
    RING, PISTON, FLOATING, FOX
  • 2
    1500003 O-RING, ENDCAP, FOX,
    O-RING, ENDCAP, FOX,
  • 3
    1500306 VALVE, CHECK, NBR DURO A 90
    VALVE, CHECK, NBR DURO A 90
  • 4
    1500331 BODY, ASSY., INNER P.S.
    BODY, ASSY., INNER P.S.
  • 5
    1500016 NUT, LOCK
    NUT, LOCK
  • 6
    1500015 BUSHING, BACKUP
    BUSHING, BACKUP
  • 7
    1500489 PISTON
    PISTON
  • 7
    1500002 DAMPER, PISTONRING, FOX
    DAMPER, PISTONRING, FOX
  • 8
    1500487 SHAFT
    SHAFT
  • 9
    1500302 EYELET, .88W 1.38TLG 808, 05, 002
    EYELET, .88W 1.38TLG 808, 05, 002
  • 10
    1500483 O-RING
    O-RING
  • 11
    1500485 SCRAPER, F.I.S.T.
    SCRAPER, F.I.S.T.
  • 12
    1500266 U, CUP, 4300 URETH, 036, 01, 006
    U, CUP, 4300 URETH, 036, 01, 006
  • 13
    1500484 O-RING
    O-RING
  • 14
    1500486 RING, SNAP, INTERNAL
    RING, SNAP, INTERNAL
  • 15
    1500295 SCREW, #10, 24X.375 800, 10, 000
    SCREW, #10, 24X.375 800, 10, 000
  • 15
    1500022 O-RING, DRUM OUTER
    O-RING, DRUM OUTER
  • 16
    1500482 BEARING ASSY. (INCL. 10, 15, 17, 19)
    BEARING ASSY. (INCL. 10, 15, 17, 19)
  • 17
    1500228 SEAL, O-RING
    SEAL, O-RING
  • 18
    1500127 O-RING
    O-RING
  • 19
    1500488 BEARING, .5 IDX.5 TLG
    BEARING, .5 IDX.5 TLG
  • 20
    1500459 O-RING, .070CSX1.489ID
    O-RING, .070CSX1.489ID
  • 21
    1500228 SEAL, O-RING
    SEAL, O-RING
  • 22
    1500097 RING, RETAIN. (FOX) , ATV
    RING, RETAIN. (FOX) , ATV
  • 23
    1500336 COLLAR, ALUM
    COLLAR, ALUM
  • 24
    1500480 BODY ASSY. (INCL. 1)
    BODY ASSY. (INCL. 1)
  • 25
    1500311 SLEEVE, .56X.81X1.28
    SLEEVE, .56X.81X1.28
  • 26
    1500307 BUSHING, .35ILG, .63TLG
    BUSHING, .35ILG, .63TLG
  • 27
    5333907 SLEEVE, .385X.560X1.30
    SLEEVE, .385X.560X1.30
  • 28
    5010422 BUSHING
    BUSHING
  • 28
    7042129 SHOCK, R/T, ALUM, PPS
    SHOCK, R/T, ALUM, PPS
