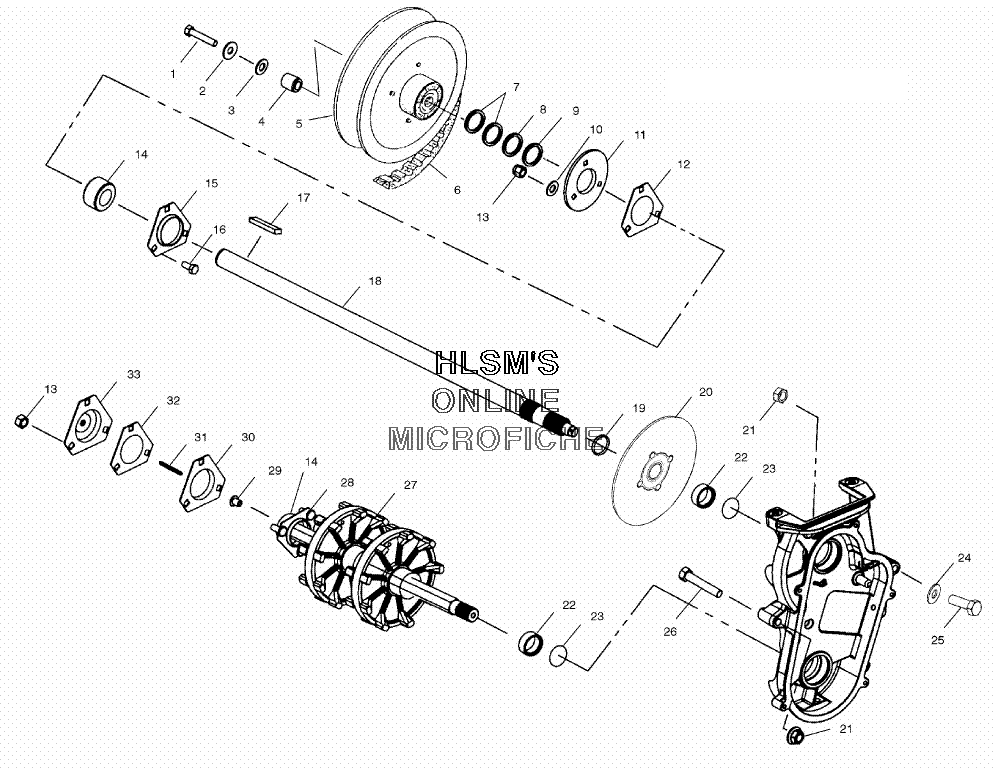

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACER (ELECTRIC START)SPACER (ELECTRIC START)
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
75020837 SPACERSPACER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107558402 WASHER FLATWASHER FLAT
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
137542324 NUT, NYLOKNUT, NYLOK
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEY, 1/4X3/16X2.75KEY, 1/4X3/16X2.75
-
181332220 JACKSHAFT ASSY., 15 SPL W/M15 BRG (INCL. 14, 19)JACKSHAFT ASSY., 15 SPL W/M15 BRG (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910612 DISC, BRAKE, FORGEDDISC, BRAKE, FORGED
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O RING,O RING,
-
247558403 WASHER WROUGHTWASHER WROUGHT
-
257518002 SCR, 3/8, 16X2.25 HX/CP, G5, YSCR, 3/8, 16X2.25 HX/CP, G5, Y
-
267515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
271590346 DRSHAFT ASSY., 1.06, 2DR W (SMOOTH) (INCL. 28, 29)DRSHAFT ASSY., 1.06, 2DR W (SMOOTH) (INCL. 28, 29)
-
281012945 FLANGETTE, W/SCREWS ASSY.FLANGETTE, W/SCREWS ASSY.
-
293280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
305243529 FLANGETTE, OFFSET, W/HOLEFLANGETTE, OFFSET, W/HOLE
-
313280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
325830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
333280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
