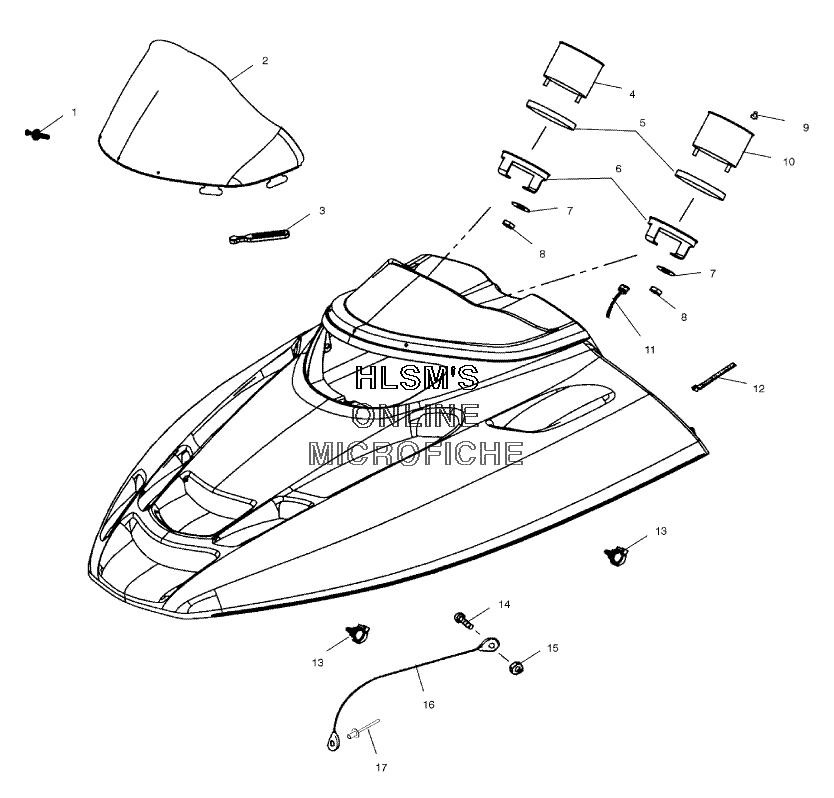

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25434194 WINDSHIELD 13" FLR SMOKEWINDSHIELD 13" FLR SMOKE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280409 TACHOMETER, W/FUEL, 6P (WHITE/BLACK)TACHOMETER, W/FUEL, 6P (WHITE/BLACK)
-
44030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
53280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
63280210 BRACKET, TACHOMETER/SPEEDOMETER (5")BRACKET, TACHOMETER/SPEEDOMETER (5")
-
73280157 WASHER, FLATWASHER, FLAT
-
87546703 NUT, NYLOKNUT, NYLOK
-
93280186 KNOB, TRIP ODOMETER THD (LEFT)KNOB, TRIP ODOMETER THD (LEFT)
-
103280411 SPEEDOMETER ASSY 5" 120MPH W/O AN (WHITE/BLACK)SPEEDOMETER ASSY 5" 120MPH W/O AN (WHITE/BLACK)
-
104030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
113280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
127080138 CABLE TIECABLE TIE
-
134010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
147512018 SCREWSCREW
-
157541925 NUT, NYLOK (10 24 Y)NUT, NYLOK (10 24 Y)
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING LINKAGE
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK SHOCK
- SUSPENSION - RYDE FX - FRONT TRACK SHOCK
- SUSPENSION - RYDE FX - IFS SHOCK
- SUSPENSION/TRACK
- TOOL KIT
- • WINDSHIELD W/ GUAGES AND HOOD RETAINER
