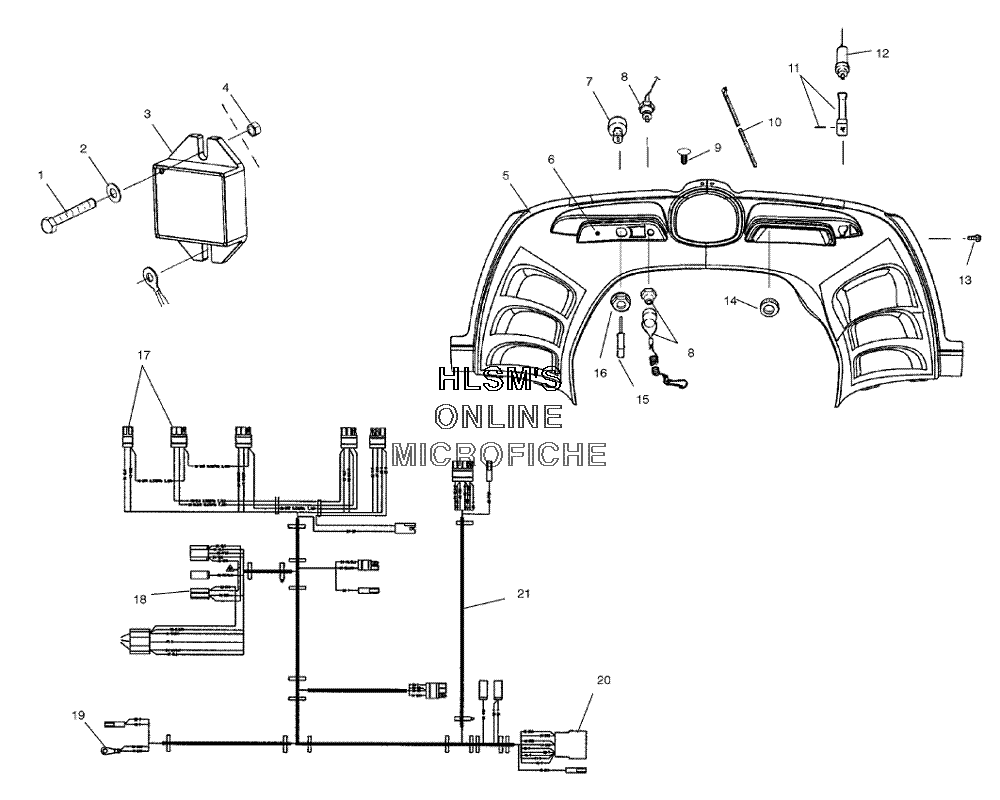

CONSOLE для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска
-
№АртикулНазвание
-
17512031 SCREWSCREW
-
27555746 WASHERWASHER
-
34010793 REGULATOR AC, 14.3VREGULATOR AC, 14.3V
-
47541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
55434103 CONSOLE, SRPCONSOLE, SRP
-
64110263 SWITCH, HEATER, HI/LOSWITCH, HEATER, HI/LO
-
67661124 HAIRPIN COTTERHAIRPIN COTTER
-
72201614 IGNITION SWITCH KIT ES FUELIGNITION SWITCH KIT ES FUEL
-
84010849 SWITCH TETHERSWITCH TETHER
-
97670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
107080138 CABLE TIECABLE TIE
-
112200188 CHOKE CONTROL KIT (INCL. PIN)CHOKE CONTROL KIT (INCL. PIN)
-
127080290 CABLE, CHOKE (INCL. 11, 14)CABLE, CHOKE (INCL. 11, 14)
-
137515199 SCREWSCREW
-
145432944 NUT, CHOKENUT, CHOKE
-
155410611 N/A, USE COMPONENTS (SEE NOTE)N/A, USE COMPONENTS (SEE NOTE)
-
167547035 NUT,IGNITIONNUT,IGNITION
-
174010193 HOUSING CONNECTOR, PACKARD #12186213HOUSING CONNECTOR, PACKARD #12186213
-
184020063 HOUSING, PACKHOUSING, PACK
-
194020092 TERMINAL, RINGTERMINAL, RING
-
204020057 HOUSINGHOUSING
-
212461121 HARNESS, MAIN E/RHARNESS, MAIN E/R
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- • CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING LINKAGE
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK SHOCK
- SUSPENSION - RYDE FX - FRONT TRACK SHOCK
- SUSPENSION - RYDE FX - IFS SHOCK
- SUSPENSION/TRACK
- TOOL KIT
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
