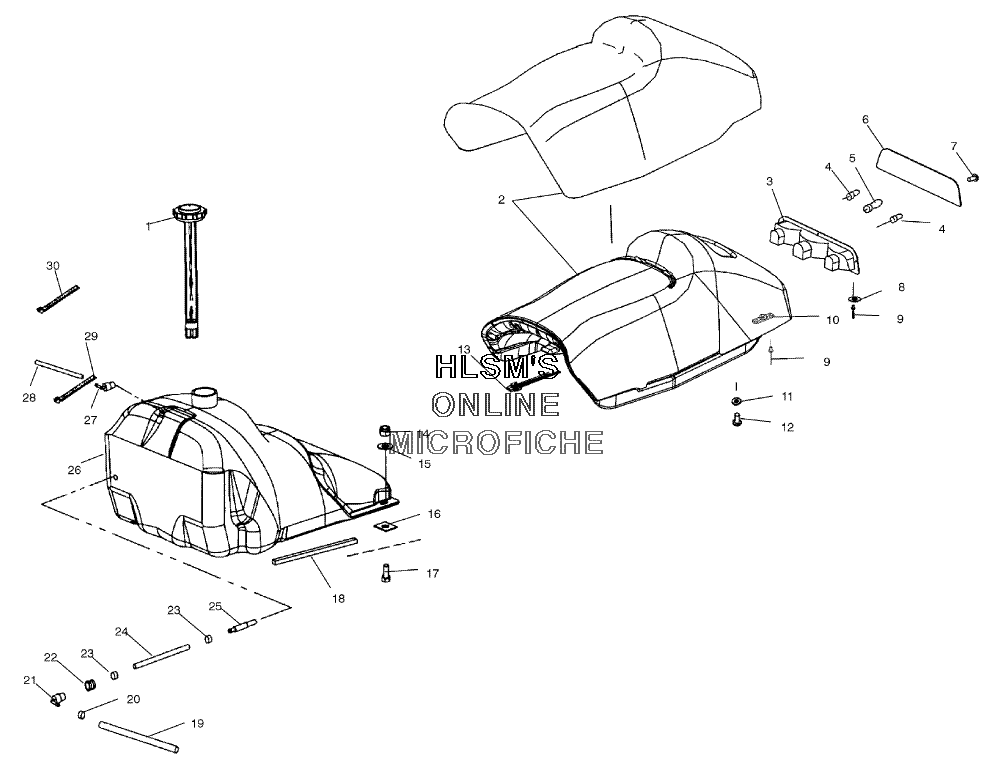

SEAT W/ GAS TANK ASSEMBLY для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2520323 CAP FUEL, 12 GAL W/GAUGE
    CAP FUEL, 12 GAL W/GAUGE
  • 2
    2683114 SEAT ASSY (INCL. 2-3, 13)
    SEAT ASSY (INCL. 2-3, 13)
  • 2
    2683115 SEAT COVER ASSY, EDGE
    SEAT COVER ASSY, EDGE
  • 3
    5433341 HOUSING TAILLIGHT
    HOUSING TAILLIGHT
  • 4
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 5
    4030045 BULB
    BULB
  • 6
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 7
    7511840 SCREW
    SCREW
  • 8
    7555727 WASHER
    WASHER
  • 9
    7621319 RIVET
    RIVET
  • 10
    5631194 NUT SEAT
    NUT SEAT
  • 11
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 12
    7517219 SCREW
    SCREW
  • 13
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 14
    7542122 NUT NYLOK
    NUT NYLOK
  • 15
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 16
    7670021 NUT, SPEED
    NUT, SPEED
  • 17
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 18
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 19
    8350018-600 TUBING, ETHER ERETHNE (160CM) (SVC)
    TUBING, ETHER ERETHNE (160CM) (SVC)
  • 20
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    7052259 FITTING, 1/4" 90Ш DEX
    FITTING, 1/4" 90Ш DEX
  • 22
    7052028 GROMMET
    GROMMET
  • 23
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 24
    8350019-600 FUEL LINE, ESTER
    FUEL LINE, ESTER
  • 25
    7052301 PICK UP FUEL, W/FILTER 105 MICRON
    PICK UP FUEL, W/FILTER 105 MICRON
  • 26
    2520287 FUEL TANK ASSY (BLACK) (INCL. 25-27)
    FUEL TANK ASSY (BLACK) (INCL. 25-27)
  • 27
    7052095 FITTING (90 DEG) (1/8)
    FITTING (90 DEG) (1/8)
  • 28
    8450061-600 LINE, FUEL
    LINE, FUEL
  • 29
    7080804 CABLE TIE RELEASABLE (5 1/2")
    CABLE TIE RELEASABLE (5 1/2")
  • 30
    7080138 CABLE TIE
    CABLE TIE
