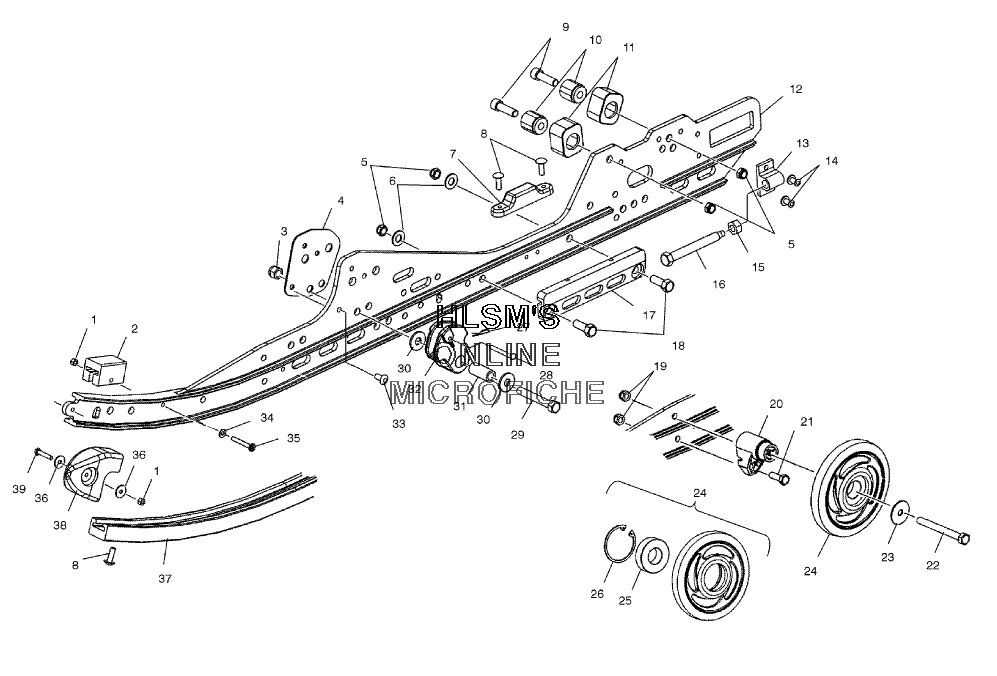

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 2
    5521499 BUMPER, JOUNCE FRONT
    BUMPER, JOUNCE FRONT
  • 3
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 4
    5245991 BRKT RAIL REINF
    BRKT RAIL REINF
  • 5
    7542411 NUT, FLEXLOC
    NUT, FLEXLOC
  • 6
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 7
    5432166 BUMPER
    BUMPER
  • 8
    7515199 SCREW
    SCREW
  • 9
    7515545 BOLT
    BOLT
  • 10
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 11
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 12
    1541827 RAIL ASSY, 121 (LEFT) (INCL. 2, 7, 11, 13, 38)
    RAIL ASSY, 121 (LEFT) (INCL. 2, 7, 11, 13, 38)
  • 12
    1541828 RAIL ASSY, 121 (RIGHT) (INCL. 2, 7, 11, 13, 38)
    RAIL ASSY, 121 (RIGHT) (INCL. 2, 7, 11, 13, 38)
  • 13
    5132444 BLOCK, IDLER BOLT ADJUST (7/16)
    BLOCK, IDLER BOLT ADJUST (7/16)
  • 14
    7621501 RIVET
    RIVET
  • 15
    7547156 NUT
    NUT
  • 16
    7517773 SCREW HEXAGON HEAD
    SCREW HEXAGON HEAD
  • 17
    5133359 PLATE, RAIL REINFORCEMENT MODULE
    PLATE, RAIL REINFORCEMENT MODULE
  • 18
    7512457 BOLT
    BOLT
  • 19
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 20
    5631065 BLOCK WHEEL MOUNT, LWT
    BLOCK WHEEL MOUNT, LWT
  • 21
    7515317 BOLT
    BOLT
  • 22
    7515346 SCREW
    SCREW
  • 23
    7556179 WASHER SPRING, CON
    WASHER SPRING, CON
  • 24
    1590317 WHEEL ASSY, BOGIE PLAIN (5.62 DIA.) (INCL. 25, 26)
    WHEEL ASSY, BOGIE PLAIN (5.62 DIA.) (INCL. 25, 26)
  • 25
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 26
    7718407 RING RETAINING (1 PER WHEEL)
    RING RETAINING (1 PER WHEEL)
  • 27
    7661644 PIN, HITCH
    PIN, HITCH
  • 28
    7661123 PIN CLEVIS
    PIN CLEVIS
  • 29
    7515438 BOLT
    BOLT
  • 30
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 31
    5333948 SPACER
    SPACER
  • 32
    5434389 GUIDE SPRING WIRE
    GUIDE SPRING WIRE
  • 33
    7661845 RIVET
    RIVET
  • 34
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 35
    7510504 SCREW
    SCREW
  • 36
    7555792 WASHER
    WASHER
  • 37
    5521632 SLIDER, SERVICE BASIC ( .45/61")
    SLIDER, SERVICE BASIC ( .45/61")
  • 38
    5434355 CAP RAIL TIP UHMW
    CAP RAIL TIP UHMW
  • 39
    7512007 BOLT
    BOLT
