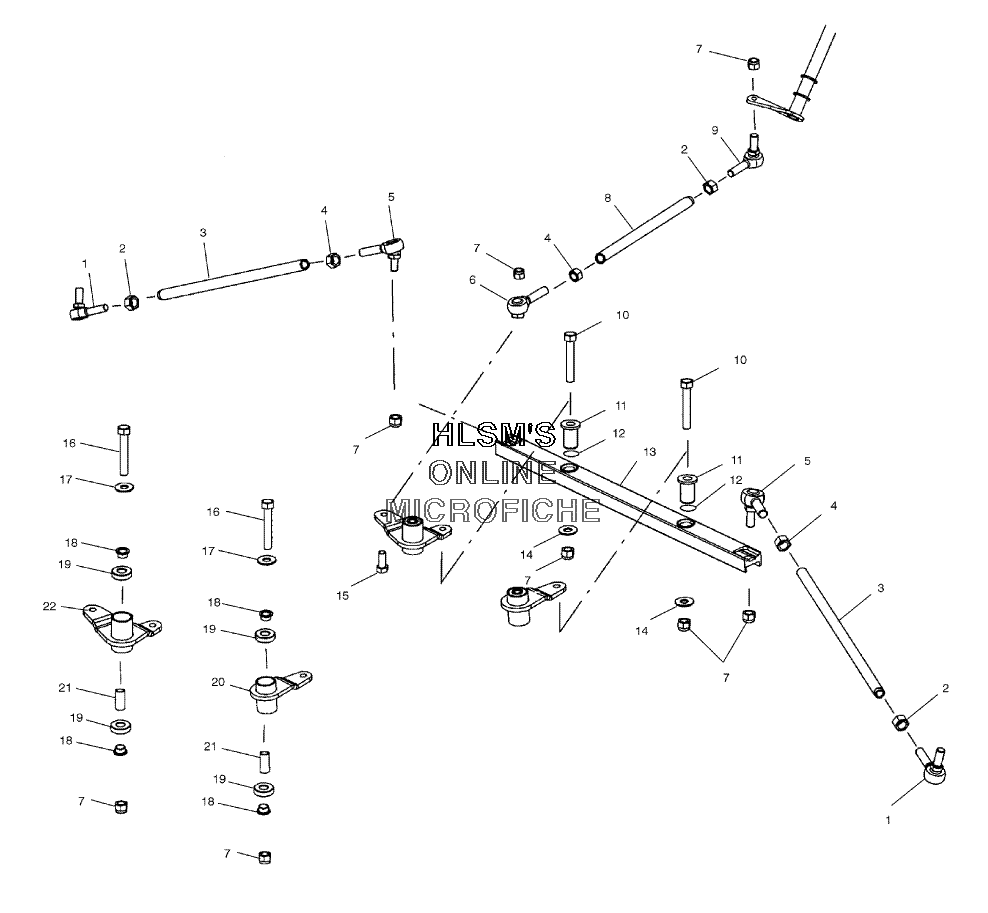

STEERING LINKAGE для Polaris 440 PRO X FAN COOLED (S03NX4FS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7061057 ROD END (RIGHT)
    ROD END (RIGHT)
  • 2
    7542401 NUT, HEXAGON (RIGHT)
    NUT, HEXAGON (RIGHT)
  • 3
    5333983 ROD TIE
    ROD TIE
  • 4
    7542424 NUT (LEFT)
    NUT (LEFT)
  • 5
    7061055 ROD END (LEFT) (750 STUD)
    ROD END (LEFT) (750 STUD)
  • 6
    7061083 ROD END, LRT (LEFT)
    ROD END, LRT (LEFT)
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    5333982-067 ROD DRAGLINK, STEEL (BLACK)
    ROD DRAGLINK, STEEL (BLACK)
  • 9
    7061084 ROD END LRT (RIGHT)
    ROD END LRT (RIGHT)
  • 10
    7517583 SCREW, HEXAGON CAP
    SCREW, HEXAGON CAP
  • 11
    5133906 BUSHING, SPACER STERRING RACK
    BUSHING, SPACER STERRING RACK
  • 12
    5411220 O-RING
    O-RING
  • 13
    1821157 STEERING RACK ASSY
    STEERING RACK ASSY
  • 14
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 15
    7512404 BOLT
    BOLT
  • 16
    7512435 SCREW
    SCREW
  • 17
    7555797 WASHER, FLAT
    WASHER, FLAT
  • 18
    5132106 BUSHING REDUCER (12MM TO .385)
    BUSHING REDUCER (12MM TO .385)
  • 19
    3514320 BEARING BALL (600ILLU)
    BEARING BALL (600ILLU)
  • 20
    1821045 IDLER ARM ASSY (INCL. 18, 19, 21)
    IDLER ARM ASSY (INCL. 18, 19, 21)
  • 21
    5133057 SPACER TUBE, PITMAN/IDLER ARMS
    SPACER TUBE, PITMAN/IDLER ARMS
  • 22
    1821043 PITMAN ARM ASSY (INCL. 18, 19, 21)
    PITMAN ARM ASSY (INCL. 18, 19, 21)
