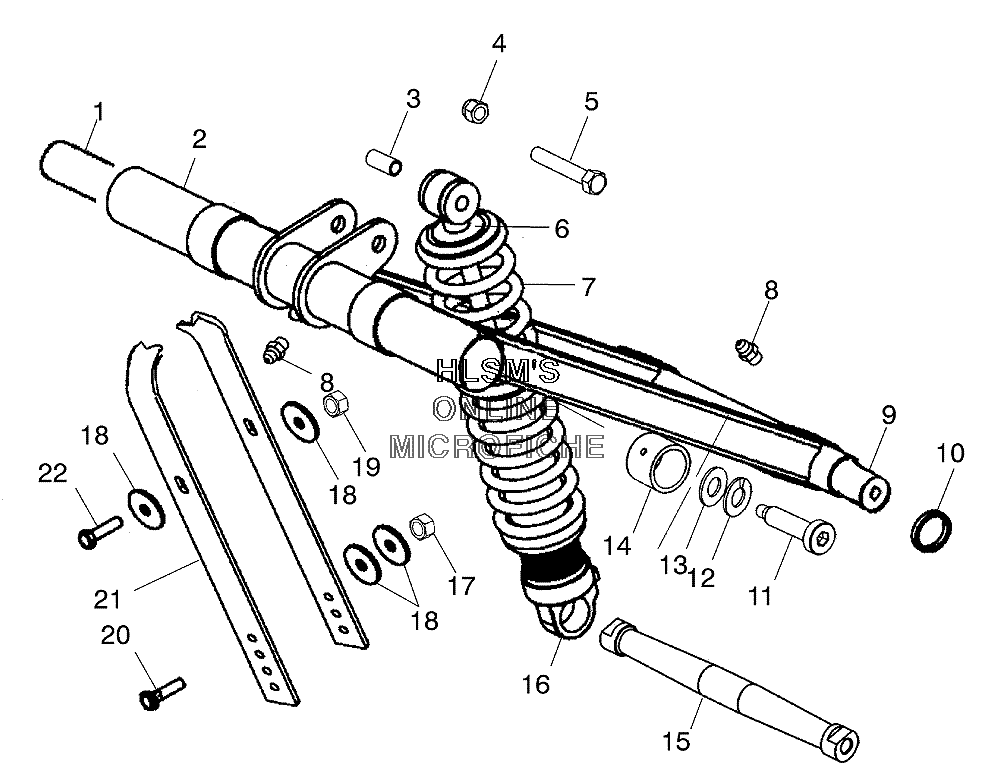

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5132675 SHAFT (UPPER)
    SHAFT (UPPER)
  • 2
    1541527-216 TORQUE ARM, M-10 (YELLOW)
    TORQUE ARM, M-10 (YELLOW)
  • 3
    5333905 SLEEVE
    SLEEVE
  • 4
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 5
    7515415 SCREW
    SCREW
  • 6
    5020618 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 7
    7041671-216 SPRING COMP (YELLOW)
    SPRING COMP (YELLOW)
  • 8
    7080424 FITTING LUBRICATION
    FITTING LUBRICATION
  • 9
    5132579 SHAFT PIVOT (LOWER)
    SHAFT PIVOT (LOWER)
  • 10
    5132783 SPACER (LOWER)
    SPACER (LOWER)
  • 11
    7517815 SCREW SOCKET HEAD
    SCREW SOCKET HEAD
  • 12
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 13
    7555984 WASHER, FLAT
    WASHER, FLAT
  • 14
    5132595 SPACER (UPPER)
    SPACER (UPPER)
  • 14
    7512257 SCREW SOCKET SET
    SCREW SOCKET SET
  • 16
    7041933 SHOCK, FRONT TRACK M-10
    SHOCK, FRONT TRACK M-10
  • 17
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 18
    7556175 WASHER
    WASHER
  • 19
    7542344 NUT, NYLOK
    NUT, NYLOK
  • 20
    7515316 BOLT
    BOLT
  • 21
    5411940 STRAP LIMITER, M-10
    STRAP LIMITER, M-10
  • 22
    7512392 BOLT
    BOLT
