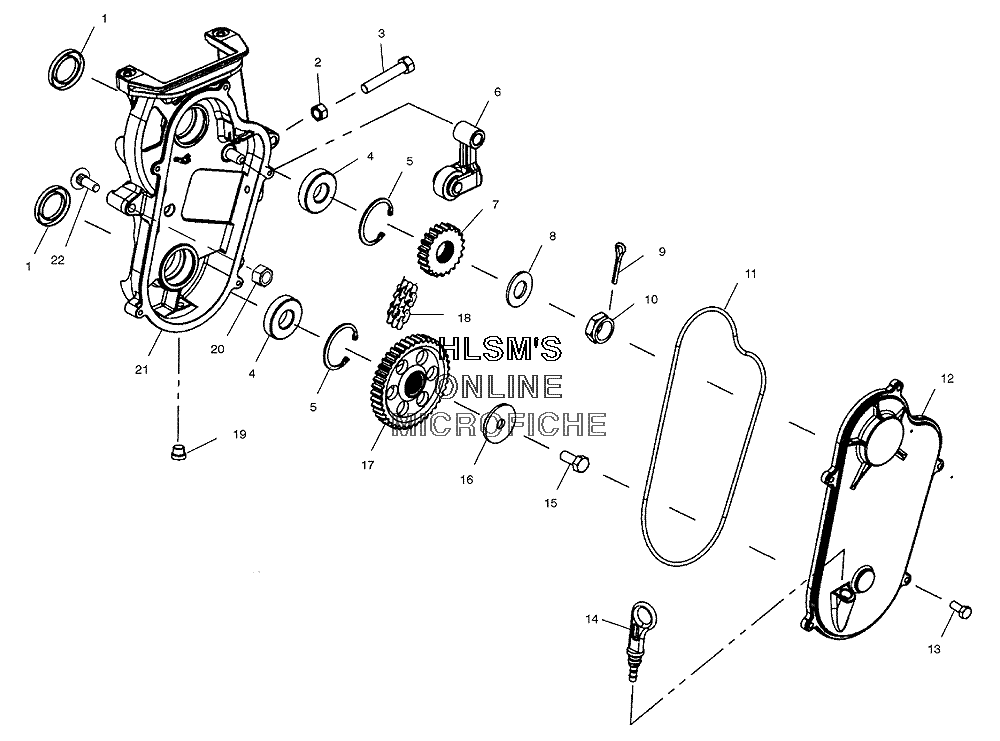

CHAINCASE ASSEMBLY для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    5132237 NUT CHAIN ADJUSTER
    NUT CHAIN ADJUSTER
  • 3
    7512470 SCREW
    SCREW
  • 4
    3514309 BEARING BALL
    BEARING BALL
  • 5
    7718406 RING RETAINING
    RING RETAINING
  • 6
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 6
    3553002 BEARING
    BEARING
  • 6
    5630123 WHEEL C/C IDLER
    WHEEL C/C IDLER
  • 6
    7558702 WASHER THRUST
    WASHER THRUST
  • 6
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 6
    5630958 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 7
    3221102 SPROCKET (25T, 3/4W, 15 SPLINE HYVO PM)
    SPROCKET (25T, 3/4W, 15 SPLINE HYVO PM)
  • 8
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 9
    7661401 PIN, COTTER
    PIN, COTTER
  • 10
    7542811 NUT, THIN NYLON INSERT-Y
    NUT, THIN NYLON INSERT-Y
  • 11
    5411497 GASKET, O-RING
    GASKET, O-RING
  • 12
    5132368 COVER CHAINCASE, ALUMINUM (7.92 CD)
    COVER CHAINCASE, ALUMINUM (7.92 CD)
  • 13
    7512242 SCREW
    SCREW
  • 14
    1332250 DIPSTICK, W/MAGNET ASSY. (EDGE)
    DIPSTICK, W/MAGNET ASSY. (EDGE)
  • 15
    7512325 BOLT
    BOLT
  • 16
    7571618 WASHER, SPRING
    WASHER, SPRING
  • 17
    3222099 SPROCKET (40T/15T SPLINE HYVO PM)
    SPROCKET (40T/15T SPLINE HYVO PM)
  • 18
    3221108 CHAIN, HYVO (76P, 3/4W)
    CHAIN, HYVO (76P, 3/4W)
  • 19
    7052115 PLUG
    PLUG
  • 20
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 21
    5132773 CHAINCASE 7.92 CD ALUMINUM
    CHAINCASE 7.92 CD ALUMINUM
  • 22
    7515477 SCREW, CARRIAGE
    SCREW, CARRIAGE
