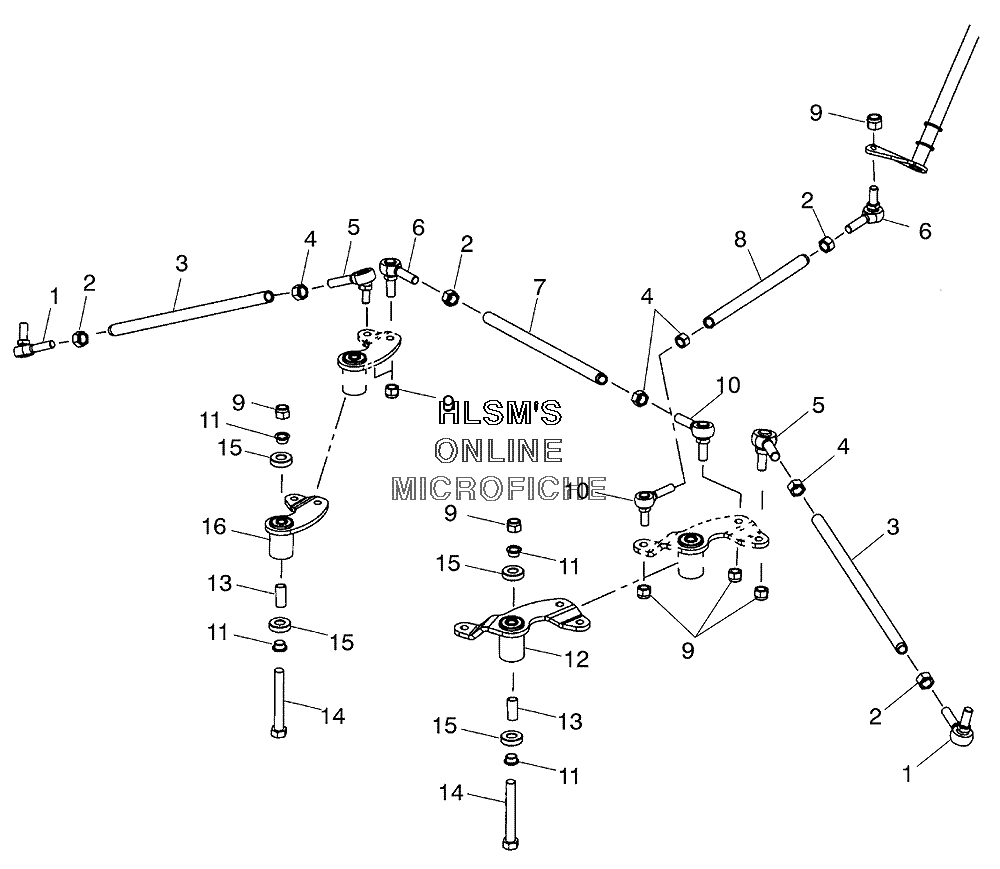

STEERING ASSEMBLY для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7061057 ROD END (RIGHT)
    ROD END (RIGHT)
  • 2
    7542401 NUT, HEXAGON (RIGHT)
    NUT, HEXAGON (RIGHT)
  • 3
    5333949-293 ROD TIE (RED)
    ROD TIE (RED)
  • 3
    5333949-216 ROD TIE (YELLOW)
    ROD TIE (YELLOW)
  • 4
    7542424 NUT (LEFT)
    NUT (LEFT)
  • 5
    7061055 ROD END 750 STUD (LEFT)
    ROD END 750 STUD (LEFT)
  • 6
    7061076 ROD END HI-ANGLE, PR (RIGHT)
    ROD END HI-ANGLE, PR (RIGHT)
  • 7
    5333772 ROD, STEERING RACK
    ROD, STEERING RACK
  • 8
    5333773-067 ROD, DRAGLINK
    ROD, DRAGLINK
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7061075 ROD END HI-ANGLE, PR (LEFT)
    ROD END HI-ANGLE, PR (LEFT)
  • 11
    5132106 BUSHING REDUCER (12MM TO .385)
    BUSHING REDUCER (12MM TO .385)
  • 12
    1820957 PITMAN ARM, ASSY. (INCL. 11, 13, 15)
    PITMAN ARM, ASSY. (INCL. 11, 13, 15)
  • 13
    5133368 SPACER TUBE PITMAN/IDLER ARMS
    SPACER TUBE PITMAN/IDLER ARMS
  • 14
    7512435 SCREW
    SCREW
  • 15
    3514320 BEARING BALL, 600ILLU
    BEARING BALL, 600ILLU
  • 16
    1820959 IDLER ARM, ASSY. (INCL. 11, 13, 15)
    IDLER ARM, ASSY. (INCL. 11, 13, 15)
