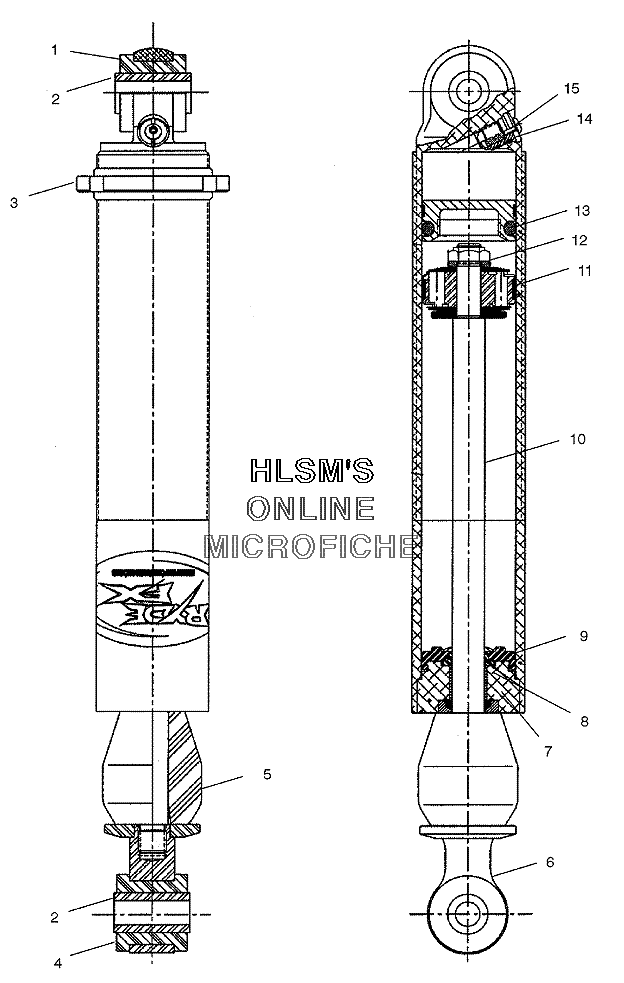

SUSPENSION - FOX SHOCK - IFS для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 27
    7041976 SHOCK-IFS, IFP ALUMINUM
    SHOCK-IFS, IFP ALUMINUM
  • 27
    2200618 VALVE PISTON KIT
    VALVE PISTON KIT
  • 1
    1700036 BUSHING
    BUSHING
  • 2
    1700037 SLEEVE
    SLEEVE
  • 3
    1700033 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 4
    1700072 BUSHING
    BUSHING
  • 5
    1700042 BUMPER, COMPRESSION
    BUMPER, COMPRESSION
  • 6
    1700010 MOUNT (UPPER)
    MOUNT (UPPER)
  • 7
    1700007 CYLINDER HEAD ASSY. (1/2" ROD)
    CYLINDER HEAD ASSY. (1/2" ROD)
  • 8
    1700021 ROD SEAL
    ROD SEAL
  • 9
    1700022 CAP SEAL
    CAP SEAL
  • 10
    1700025 SHAFT
    SHAFT
  • 11
    1700109 BANDED PISTON (.094" ORIFICE)
    BANDED PISTON (.094" ORIFICE)
  • 11
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 11
    1700077 WASHER (TOP/OUTER)
    WASHER (TOP/OUTER)
  • 11
    1700078 BACK-UP WASHER
    BACK-UP WASHER
  • 12
    1700057 NUT
    NUT
  • 13
    1700023 IFP
    IFP
  • 13
    1700032 IFP WEAR BAND
    IFP WEAR BAND
  • 13
    1700048 IFP O-RING
    IFP O-RING
  • 14
    1700076 PRESS VALVE ASSY.
    PRESS VALVE ASSY.
  • 14
    1700047 PRESS VALVE O-RING
    PRESS VALVE O-RING
  • 15
    1700056 VALVE SCREW
    VALVE SCREW
