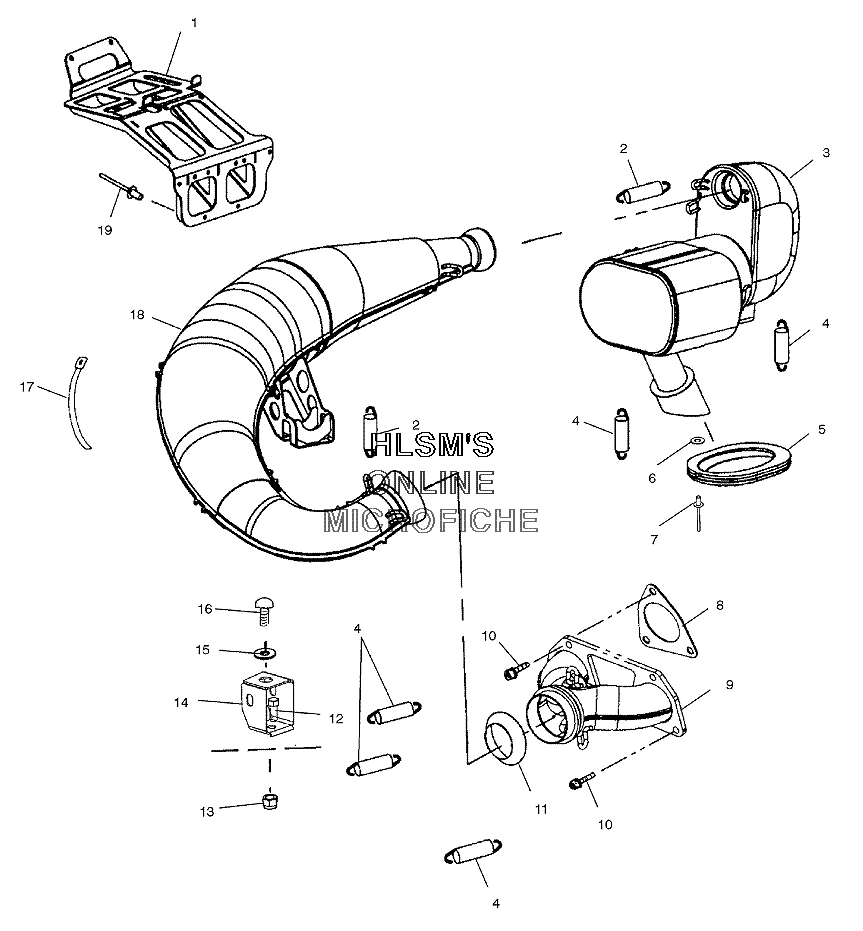

EXHAUST SYSTEM для Polaris 700 XC SP EDGE F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1261008-029 WELD, BRACKET CHASSIS/RESONATOR
    WELD, BRACKET CHASSIS/RESONATOR
  • 2
    7042029 SPRING
    SPRING
  • 3
    1261130-029 WELD RESONATOR (BLACK)
    WELD RESONATOR (BLACK)
  • 4
    7041687 SPRING
    SPRING
  • 5
    5411684 BOOT, EXHAUST OUTLET
    BOOT, EXHAUST OUTLET
  • 6
    7555904 WASHER
    WASHER
  • 7
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 8
    5811799 GASKET EXHAUST
    GASKET EXHAUST
  • 9
    1261124-029 WELD MANIFOLD (BLACK)
    WELD MANIFOLD (BLACK)
  • 10
    7517322 SCREW
    SCREW
  • 11
    3610046 SEAL, EXHAUST SOCKET
    SEAL, EXHAUST SOCKET
  • 12
    7515440 BOLT
    BOLT
  • 13
    7547180 NUT FLANGED, 3/8-16 NYLON-Z
    NUT FLANGED, 3/8-16 NYLON-Z
  • 14
    5245498 BRACKET CHASSIS/PIPE
    BRACKET CHASSIS/PIPE
  • 15
    7556004 WASHER
    WASHER
  • 16
    5411576 DAMPENER VIBRATION, W/RIBS
    DAMPENER VIBRATION, W/RIBS
  • 17
    7080739 CLAMP WORM DRIVE (.44X3.13 DIA)
    CLAMP WORM DRIVE (.44X3.13 DIA)
  • 17
    7080740 CLAMP WORM DRIVE (.44WX3.69DIA)
    CLAMP WORM DRIVE (.44WX3.69DIA)
  • 17
    7080741 CLAMP WORM DRIVE (.44WX4.25DIA)
    CLAMP WORM DRIVE (.44WX4.25DIA)
  • 17
    7080742 CLAMP WORM DRIVE (.44WX6.38DIA)
    CLAMP WORM DRIVE (.44WX6.38DIA)
  • 18
    1261123 TUNED PIPE ASSY.
    TUNED PIPE ASSY.
  • 18
    5245929 COVER TUNED PIPE (TOP)
    COVER TUNED PIPE (TOP)
  • 18
    5245930 COVER TUNED PIPE (BOTTOM)
    COVER TUNED PIPE (BOTTOM)
  • 18
    5830215 MATTE SOUND (TOP)
    MATTE SOUND (TOP)
  • 18
    5830216 MATTE SOUND (BOTTOM)
    MATTE SOUND (BOTTOM)
  • 19
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
