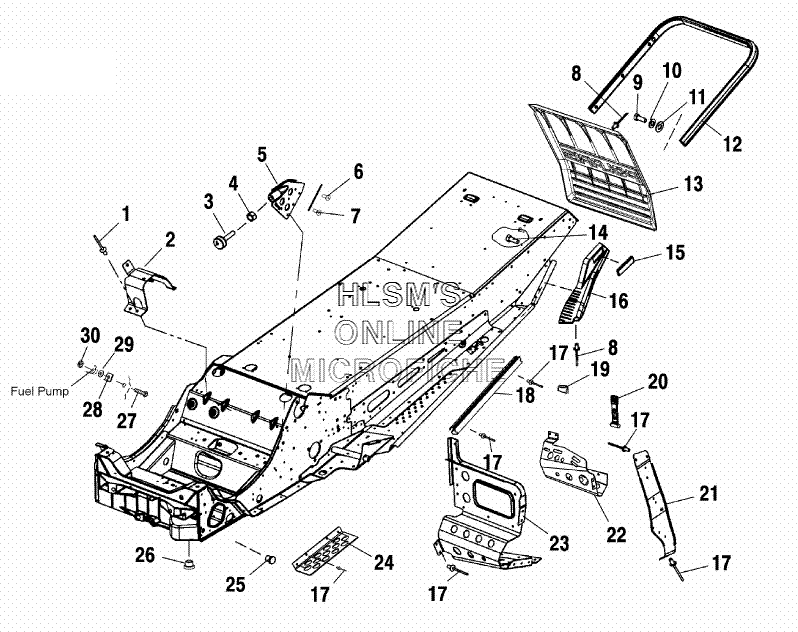

FRAME - CHASSIS для Polaris 700 CLASSIC BUILT AFTER 1/1/01 (S02ND7CS) - 2002 года выпуска

№

Артикул

Название
1

7621432 RIVET (3/16X.402)

RIVET (3/16X.402)

110 ₽
2

5245003 BRACKET, JACKSHAFT, SHIELD

BRACKET, JACKSHAFT, SHIELD

3 330 ₽
3

3021081 STOP, TORQUE

STOP, TORQUE

6 450 ₽
4

7542404 NUT

NUT

460 ₽
5

1013377 WELD, TORQUE STOP, EDGE (700/800)

WELD, TORQUE STOP, EDGE (700/800)

6 870 ₽
6

7517632 SCREW

SCREW

790 ₽
7

7517854 SCREW (3/8, 16X1, P30, SPEC, Y)

SCREW (3/8, 16X1, P30, SPEC, Y)

830 ₽
8

7621472 RIVET

RIVET

250 ₽
9

7512240 BOLT

BOLT

460 ₽
10

7552801 LOCK WASHER

LOCK WASHER

460 ₽
11

7558301 WASHER

WASHER

110 ₽
12

2632165-309 BUMPER, REAR

BUMPER, REAR

29 120 ₽
13

5433961-1118 FLAP, SHORT, EDGE (BLUE W/WHITE)

FLAP, SHORT, EDGE (BLUE W/WHITE)

19 760 ₽
14

7517441 SCREW

SCREW

630 ₽
15

2670133 REFLECTOR ASSY. (RED)

REFLECTOR ASSY. (RED)

1 460 ₽
16

2632443-070 SNOWSKIRT/REFL ASSY. (LEFT, BLACK) [INCL. 15]

SNOWSKIRT/REFL ASSY. (LEFT, BLACK) [INCL. 15]

12 480 ₽
16

2632444-070 SNOWSKIRT/REFL ASSY. (RIGHT, BLACK) [INCL. 15]

SNOWSKIRT/REFL ASSY. (RIGHT, BLACK) [INCL. 15]

12 480 ₽
17

7661637 RIVET, INTERLOCK, Z

RIVET, INTERLOCK, Z

150 ₽
18

5245118 BRACE, TUNNEL ROLL

BRACE, TUNNEL ROLL

5 410 ₽
19

5521238 EXTRUSION, CLUTCH GUARD

EXTRUSION, CLUTCH GUARD

1 040 ₽
20

5433150 STRAP, RUBBER

STRAP, RUBBER

4 160 ₽
21

5246310 SUPPORT, FOOTREST (LEFT)

SUPPORT, FOOTREST (LEFT)

4 990 ₽
21

5242742 SUPPORT, FOOTREST (RIGHT)

SUPPORT, FOOTREST (RIGHT)

4 990 ₽
22

5245457 MOUNT, CONSOLE, TOE CLIP (LEFT)

MOUNT, CONSOLE, TOE CLIP (LEFT)

6 870 ₽
22

5245458 MOUNT, CONSOLE, TOE CLIP (RIGHT)

MOUNT, CONSOLE, TOE CLIP (RIGHT)

6 870 ₽
23

5245288 FOOTREST (LEFT, .080)

FOOTREST (LEFT, .080)

35 360 ₽
23

5242740 FOOTREST (RIGHT)

FOOTREST (RIGHT)

18 720 ₽
24

5245836 GUARD, BELT, EDGE (W/BEND)

GUARD, BELT, EDGE (W/BEND)

6 240 ₽
25

5244997-067 BRACE, LOWER, TUNNEL (LEFT, BLACK)

BRACE, LOWER, TUNNEL (LEFT, BLACK)

4 990 ₽
25

5244998-067 BRACE, LOWER, TUNNEL (RIGHT, BLACK)

BRACE, LOWER, TUNNEL (RIGHT, BLACK)

4 990 ₽
26

5244999-067 PAD, SUSP, FRONT (LEFT, BLACK)

PAD, SUSP, FRONT (LEFT, BLACK)

0 ₽
26

5245001-067 PAD, SUSP, FRONT (RIGHT, BLACK)

PAD, SUSP, FRONT (RIGHT, BLACK)

2 910 ₽
27

2202059 MOUNT, TRAILING ARM KIT (LEFT)

MOUNT, TRAILING ARM KIT (LEFT)

37 440 ₽
27

2202060 MOUNT, TRAILING ARM KIT (RIGHT)

MOUNT, TRAILING ARM KIT (RIGHT)

0 ₽
28

7080416 PLUG, HOLE

PLUG, HOLE

750 ₽
29

7661130 RIVET (3/16-.214-.420)

RIVET (3/16-.214-.420)

250 ₽
30

5132292 BULKHEAD, FRONT (MACH)

BULKHEAD, FRONT (MACH)

29 120 ₽
31

7512275 BOLT, CARRIAGE

BOLT, CARRIAGE

460 ₽
32

7670021 SPEED NUT

SPEED NUT

460 ₽
33

7555932 WASHER, NYLON

WASHER, NYLON

540 ₽
34

7542122 NUT, LOCK

NUT, LOCK

110 ₽
34

1013687-309 CHASSIS ASSY. (SVC, M, 10, NATURAL)

CHASSIS ASSY. (SVC, M, 10, NATURAL)

0 ₽
