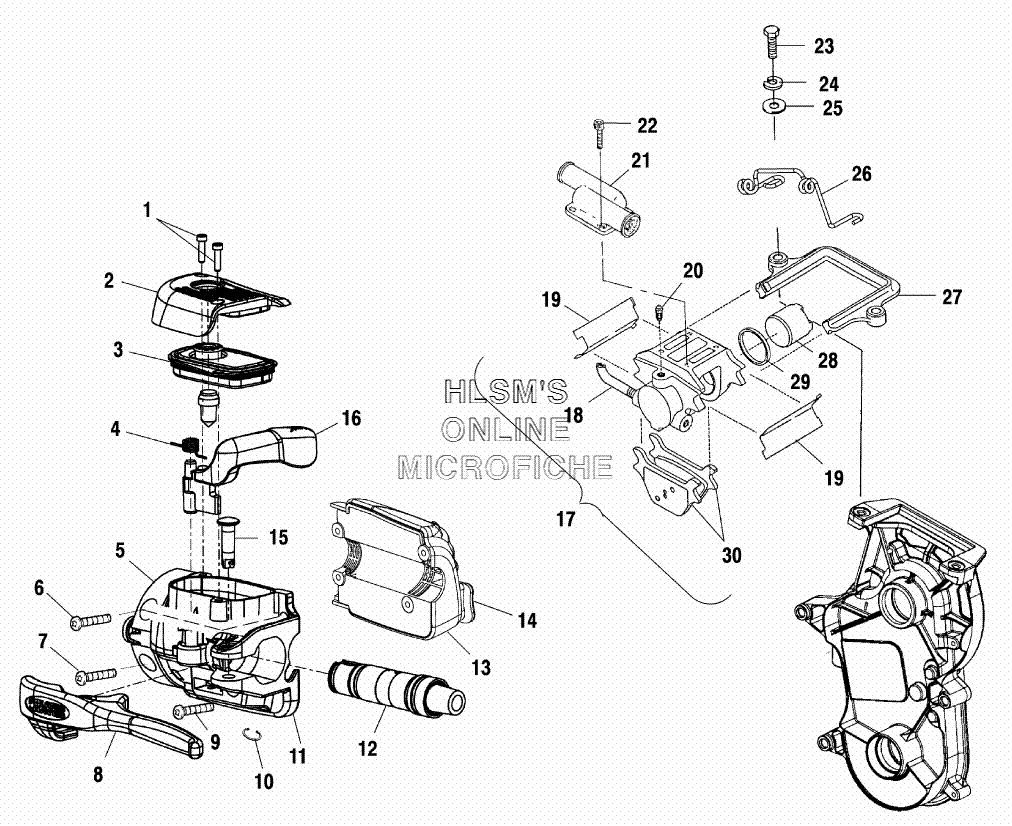

BRAKE ASSEMBLY для Polaris 700 CLASSIC BUILT AFTER 1/1/01 (S02ND7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT (HAYES)
    COVER SCREW KIT (HAYES)
  • 2
    2201255 COVER ASSY. KIT (HAYES) [INCL. 1, 3]
    COVER ASSY. KIT (HAYES) [INCL. 1, 3]
  • 4
    2201250 PARKLEVER SPRING KIT
    PARKLEVER SPRING KIT
  • 5
    2202146 MASTER CYLINDER ASSY. KIT (HAYES) [INCL. 2, 4, 8, 11, 12, 15]
    MASTER CYLINDER ASSY. KIT (HAYES) [INCL. 2, 4, 8, 11, 12, 15]
  • 6
    7517441 SCREW
    SCREW
  • 7
    7512078 SCREW
    SCREW
  • 8
    2201943 LEVER KIT (3 NOTCH/PIN/RING)
    LEVER KIT (3 NOTCH/PIN/RING)
  • 9
    7517566 SCREW
    SCREW
  • 10
    2201945 SNAP RING KIT
    SNAP RING KIT
  • 11
    2202146 MASTER CYLINDER ASSY. KIT (HAYES)
    MASTER CYLINDER ASSY. KIT (HAYES)
  • 11
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 12
    2201944 5/8'' CARTRIDGE SUB ASSY. KIT
    5/8'' CARTRIDGE SUB ASSY. KIT
  • 13
    2010167 CONTROL ASSY. (LEFT, BASIC)
    CONTROL ASSY. (LEFT, BASIC)
  • 14
    5433291 BUTTON SWITCH HI/LO
    BUTTON SWITCH HI/LO
  • 15
    2201946 PIVOT PIN KIT (ALUM W/SNAP RING)
    PIVOT PIN KIT (ALUM W/SNAP RING)
  • 16
    2201251 PARKLEVER AND SPRING KIT [INCL. 4]
    PARKLEVER AND SPRING KIT [INCL. 4]
  • 17
    1910344 BRAKE CALIPER (HD, LIQ, NOSW) [INCL. 28, 29, 30]
    BRAKE CALIPER (HD, LIQ, NOSW) [INCL. 28, 29, 30]
  • 18
    1910546 LINE, BRAKE, EDGE, BRAIDED
    LINE, BRAKE, EDGE, BRAIDED
  • 19
    2200467 CLIP SPRING KIT [QTY. 2]
    CLIP SPRING KIT [QTY. 2]
  • 20
    1930735 INLET KIT
    INLET KIT
  • 21
    1930728 COOLER, WATER, BRAKE
    COOLER, WATER, BRAKE
  • 21
    2201024 GASKET, BRK.COOLER
    GASKET, BRK.COOLER
  • 22
    1930729 SCREW SET [PKG. OF 4]
    SCREW SET [PKG. OF 4]
  • 23
    7515521 BOLT
    BOLT
  • 24
    7552603 WASHER
    WASHER
  • 25
    7555801 WASHER
    WASHER
  • 25
    7555801 WASHER
    WASHER
  • 26
    5244413 GUIDE, ROPE
    GUIDE, ROPE
  • 27
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 28
    1930734 PISTON SEAL KIT [INCL. 29]
    PISTON SEAL KIT [INCL. 29]
  • 29
    2200466 SEAL
    SEAL
  • 30
    2201430 BRAKE KIT (PAD TYPE 81 LARGE) [INCL. 19]
    BRAKE KIT (PAD TYPE 81 LARGE) [INCL. 19]
