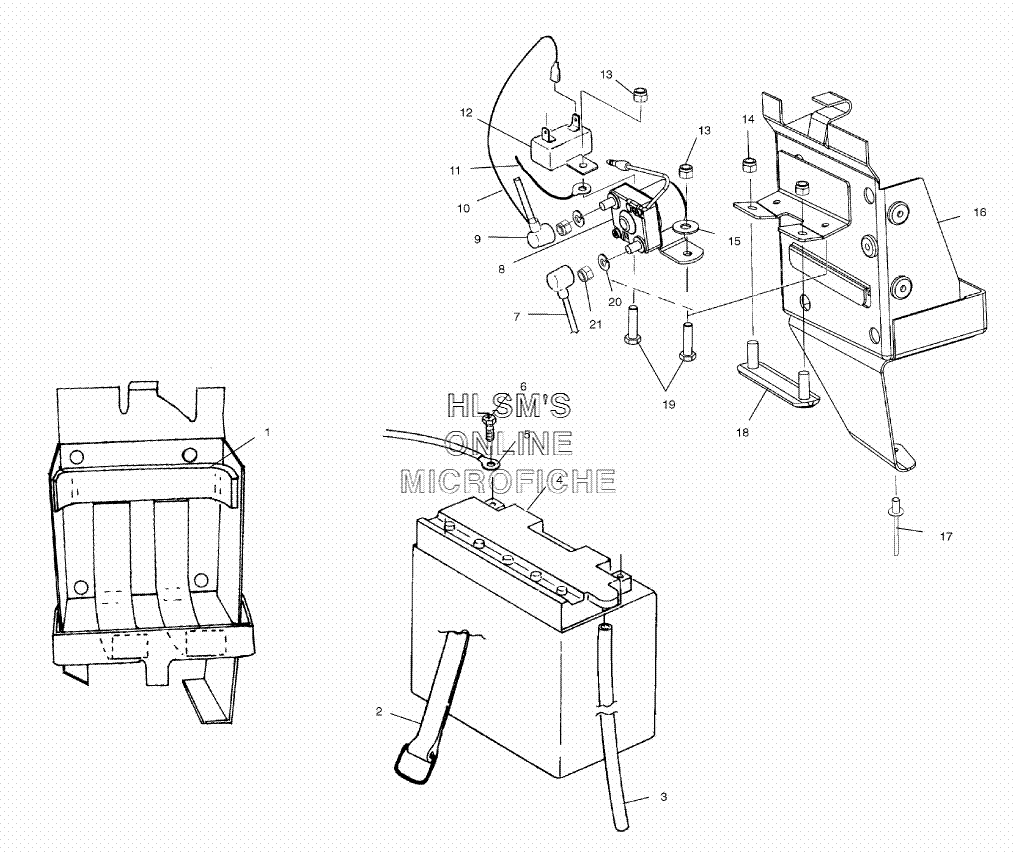

BATTERY BOX для Polaris 700 CLASSIC BUILT AFTER 1/1/01 (S02ND7CS) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7541925 NUT
    NUT
  • 2
    7555904 BURR, RIVET
    BURR, RIVET
  • 3
    4010355 REGULATOR (AC/DC 14.3V)
    REGULATOR (AC/DC 14.3V)
  • 4
    7517263 SCREW (HX/SEMS)
    SCREW (HX/SEMS)
  • 5
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 6
    2450020 STRAP ASSY. BATTERY HOLD.
    STRAP ASSY. BATTERY HOLD.
  • 7
    5432077 TUBE, BATTERY VENT
    TUBE, BATTERY VENT
  • 8
    4140006 BATTERY
    BATTERY
  • 9
    4010114 CABLE (11'', BATT., BLACK)
    CABLE (11'', BATT., BLACK)
  • 10
    2200361 BOLT, BATTERY, KIT (SHORT)
    BOLT, BATTERY, KIT (SHORT)
  • 11
    4010107 CABLE, SOL/STRT (BLACK, 16.5'')
    CABLE, SOL/STRT (BLACK, 16.5'')
  • 12
    4010930 SWITCH, MAGNETIC [SEE STARTING MOTOR REF. 18]
    SWITCH, MAGNETIC [SEE STARTING MOTOR REF. 18]
  • 13
    5410346 INSUL.CABLE SOL.
    INSUL.CABLE SOL.
  • 14
    2460393 CABLE ASSY., SOLENOID
    CABLE ASSY., SOLENOID
  • 15
    4010108 WIRE, JUMPER, (SOL/BATT, 8.5'')
    WIRE, JUMPER, (SOL/BATT, 8.5'')
  • 16
    2434008 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 17
    7542122 NUT, LOCK
    NUT, LOCK
  • 18
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 19
    1013679-067 WELD, BATTERY BOX, EDGE (BLACK)
    WELD, BATTERY BOX, EDGE (BLACK)
  • 20
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 21
    1013385 WELD, STUD PLATE, BATTERY BOX
    WELD, STUD PLATE, BATTERY BOX
  • 22
    7511930 SCREW
    SCREW
  • 23
    3080077 WASHER, SPRING [SEE STARTING MOTOR REF. 17]
    WASHER, SPRING [SEE STARTING MOTOR REF. 17]
  • 24
    3082939 NUT [SEE STARTING MOTOR REF. 16]
    NUT [SEE STARTING MOTOR REF. 16]
