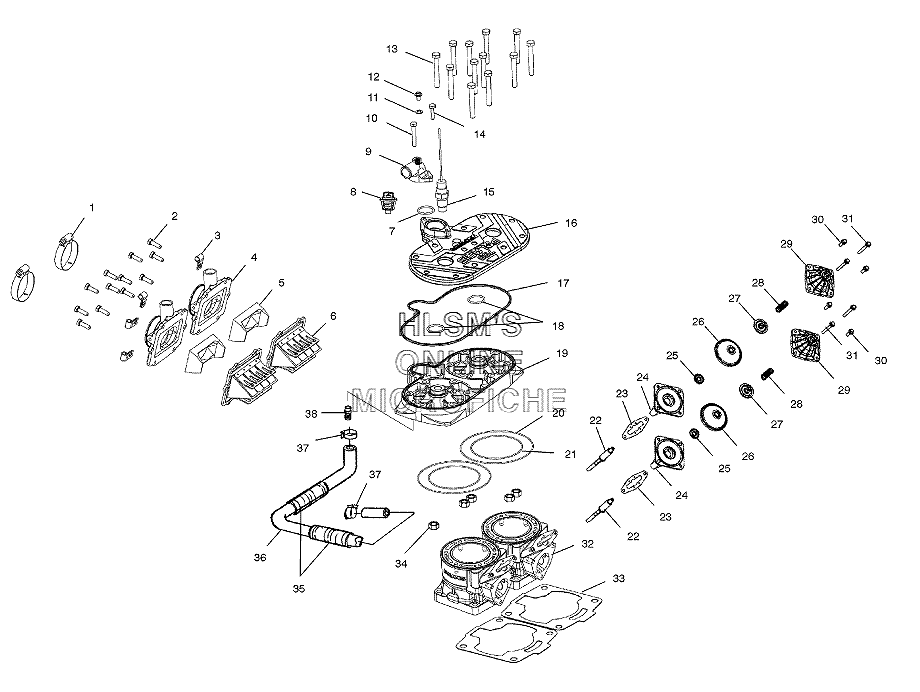

CYLINDER ASSEMBLY для Polaris 700 CLASSIC BUILT AFTER 1/1/01 (S02ND7CS) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE (S.S.)
    CLAMP, HOSE (S.S.)
  • 2
    7517398 SCREW
    SCREW
  • 3
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    1253327 ADAPTER, CARB. (40MM, SNO)
    ADAPTER, CARB. (40MM, SNO)
  • 5
    5433151 STUFFER, REED BLOCK (NOK)
    STUFFER, REED BLOCK (NOK)
  • 6
    1201825 VALVE, REED, ASSY.
    VALVE, REED, ASSY.
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    7052258 THERMOSTAT (120ШF W/O BYPASS)
    THERMOSTAT (120ШF W/O BYPASS)
  • 9
    5630992 COVER, THERMOSTAT (M6 BLEED LG)
    COVER, THERMOSTAT (M6 BLEED LG)
  • 10
    7516822 SCREW
    SCREW
  • 11
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 12
    7517679 SCREW (M6X1.0 X 13, SL/HX/FL, Z)
    SCREW (M6X1.0 X 13, SL/HX/FL, Z)
  • 13
    7517534 SCREW (M8X1.25X60)
    SCREW (M8X1.25X60)
  • 14
    7516818 SCREW
    SCREW
  • 15
    4010398 SENSOR, THERMISTER (ESX8477A)
    SENSOR, THERMISTER (ESX8477A)
  • 16
    5631201-366 COVER, HEAD (81MM 700 RED E, COAT)
    COVER, HEAD (81MM 700 RED E, COAT)
  • 17
    5411294 SEAL, RUBBER, HEAD
    SEAL, RUBBER, HEAD
  • 18
    5410917 O-RING
    O-RING
  • 19
    3021210 HEAD, CYL (81MM, TWIN SNOW, EV)
    HEAD, CYL (81MM, TWIN SNOW, EV)
  • 20
    5410931 O-RING
    O-RING
  • 21
    5410932 O-RING
    O-RING
  • 22
    5132669 VALVE, GUILLOTINE (GEN 3.5, 700EV)
    VALVE, GUILLOTINE (GEN 3.5, 700EV)
  • 23
    5812350 GASKET, BASE TO CYL EXH VALVE
    GASKET, BASE TO CYL EXH VALVE
  • 24
    1202216 BASE EXH VALVE DOM ASSY.
    BASE EXH VALVE DOM ASSY.
  • 25
    5132950 WASHER, BELLOWS, EXH VALVE, DOM
    WASHER, BELLOWS, EXH VALVE, DOM
  • 26
    5412147 BELLOWS, EXHAUST VALVE (FABRIC)
    BELLOWS, EXHAUST VALVE (FABRIC)
  • 27
    5631381 CAP/NUT, BELLOWS, EXH VALVE DOM
    CAP/NUT, BELLOWS, EXH VALVE DOM
  • 28
    7041786-08 SPRING, COMP (GEN 3.5EV, GRN/YLW)
    SPRING, COMP (GEN 3.5EV, GRN/YLW)
  • 29
    5434599 HOUSING, BELLOWS EXH VALVE BUSH
    HOUSING, BELLOWS EXH VALVE BUSH
  • 30
    7516820 SCREW
    SCREW
  • 31
    7517932 SCREW (M6X1.0X50.0 HX/FL, YD)
    SCREW (M6X1.0X50.0 HX/FL, YD)
  • 32
    3021340 CYLINDER (81MM SNO EV)
    CYLINDER (81MM SNO EV)
  • 33
    5811538 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 34
    7547013 NUT
    NUT
  • 35
    5521398-96 CONDUIT, FLEX (.75''ID)
    CONDUIT, FLEX (.75''ID)
  • 36
    5411536 HOSE, BYPASS
    HOSE, BYPASS
  • 37
    7081030 CLAMP, BYPASS (NORMA #24, 15)
    CLAMP, BYPASS (NORMA #24, 15)
  • 38
    7052222 FITTING (1/2 ID.HOSE)
    FITTING (1/2 ID.HOSE)
