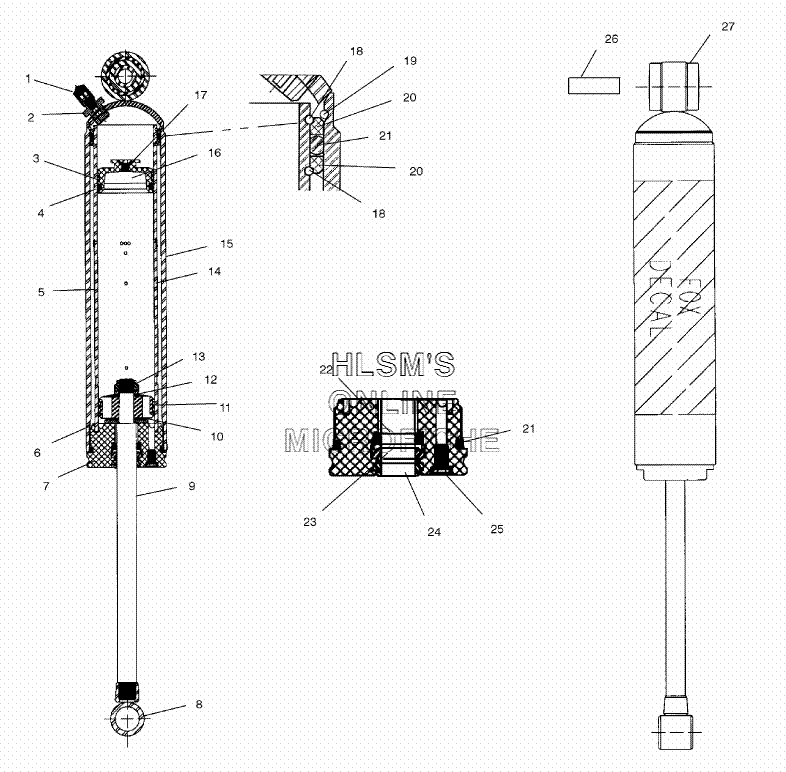

SUSPENSION - REAR SHOCK для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска`
-
№АртикулНазвание
-
1A7041846 SHOCK, REAR TORSIONSHOCK, REAR TORSION
-
11500210 CAP, SHARADER VALVECAP, SHARADER VALVE
-
21500206 VALVE-AIR, COMP.VALVE-AIR, COMP.
-
31500006 RING, PISTON FLOATINGRING, PISTON FLOATING
-
41500003 O-RING, ENDCAPO-RING, ENDCAP
-
51500306 VALVE, CHECKVALVE, CHECK
-
61500459 O-RINGO-RING
-
71500334 BEARING, W/P.S. GROOVEBEARING, W/P.S. GROOVE
-
81500302 EYELETEYELET
-
91500333 SHAFTSHAFT
-
101500017 PLATE, TOP OUTPLATE, TOP OUT
-
111500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
121500015 BUSHING, BACKUPBUSHING, BACKUP
-
131500016 NUT, LOCKNUT, LOCK
-
141500331 BODY ASSY. (INNER)BODY ASSY. (INNER)
-
151500332 BODY ASSY. (OUTER)BODY ASSY. (OUTER)
-
161500187 PISTON, FLOATINGPISTON, FLOATING
-
171500161 SCREW W/O-RING ASSY.SCREW W/O-RING ASSY.
-
181500097 RING, RETAINERRING, RETAINER
-
191500236 RING, RETAININGRING, RETAINING
-
201500336 COLLARCOLLAR
-
211500228 SEAL, O-RINGSEAL, O-RING
-
221500297 SEAL, Q-RINGSEAL, Q-RING
-
231500025 U-CUPU-CUP
-
241500024 WIPER (CLEAR/OUTER)WIPER (CLEAR/OUTER)
-
251500295 SCREWSCREW
-
251500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
261500311 SLEEVESLEEVE
-
271500307 BUSHINGBUSHING
