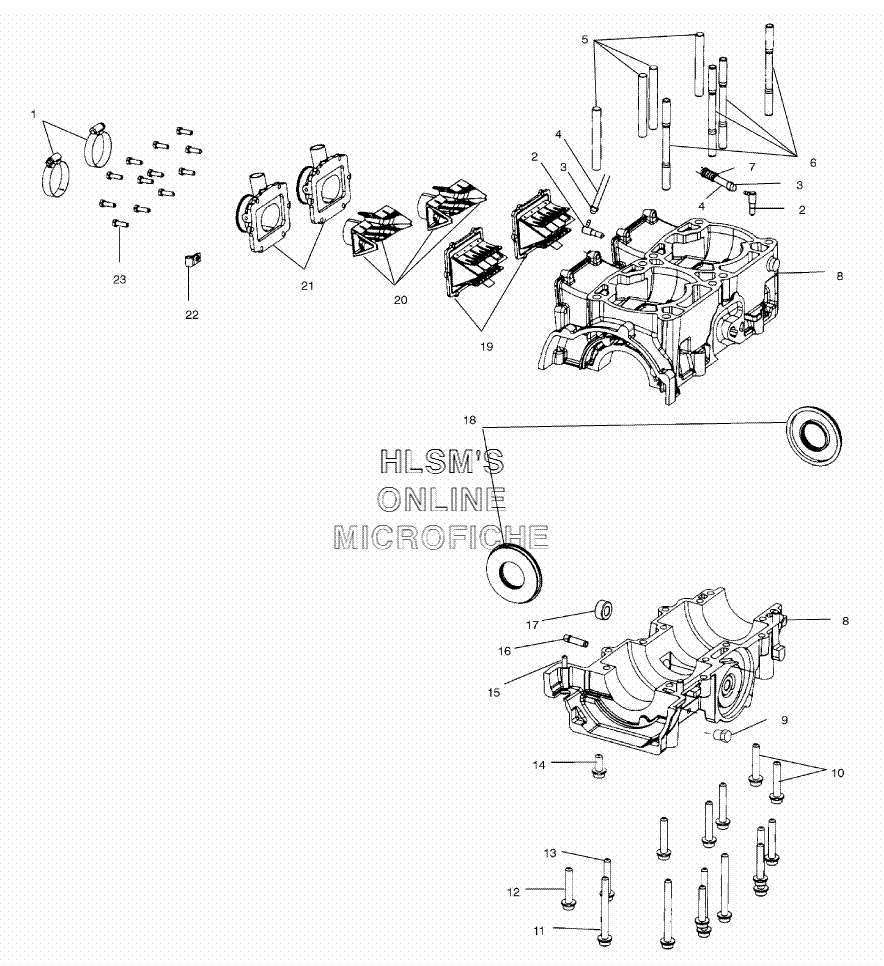

CRANKCASE ASSEMBLY для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27051020 VALVE, CHECKVALVE, CHECK
-
37080603 CLAMPCLAMP
-
48450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
55132196 STUD, CYLINDERSTUD, CYLINDER
-
65132197 STUD, CYLINDERSTUD, CYLINDER
-
78360056-25 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
82201931 CRANKCASE KIT (INCL. 2,3,5-10)CRANKCASE KIT (INCL. 2,3,5-10)
-
97051529 PLUGPLUG
-
107517785 BOLTBOLT
-
117517784 BOLTBOLT
-
127516825 SCREWSCREW
-
137517786 BOLTBOLT
-
147517577 SCREWSCREW
-
157663001 PIN, DOWELPIN, DOWEL
-
167052145 FITTINGFITTING
-
175010390 SPACERSPACER
-
185411394 SEAL, FLANGEDSEAL, FLANGED
-
191201825 VALVE, REED ASSY.VALVE, REED ASSY.
-
205432852 STUFFER, REEDSTUFFER, REED
-
211253217 ADAPTER, CARBADAPTER, CARB
-
227080683 CLAMP, HOSECLAMP, HOSE
-
237516822 SCREWSCREW
