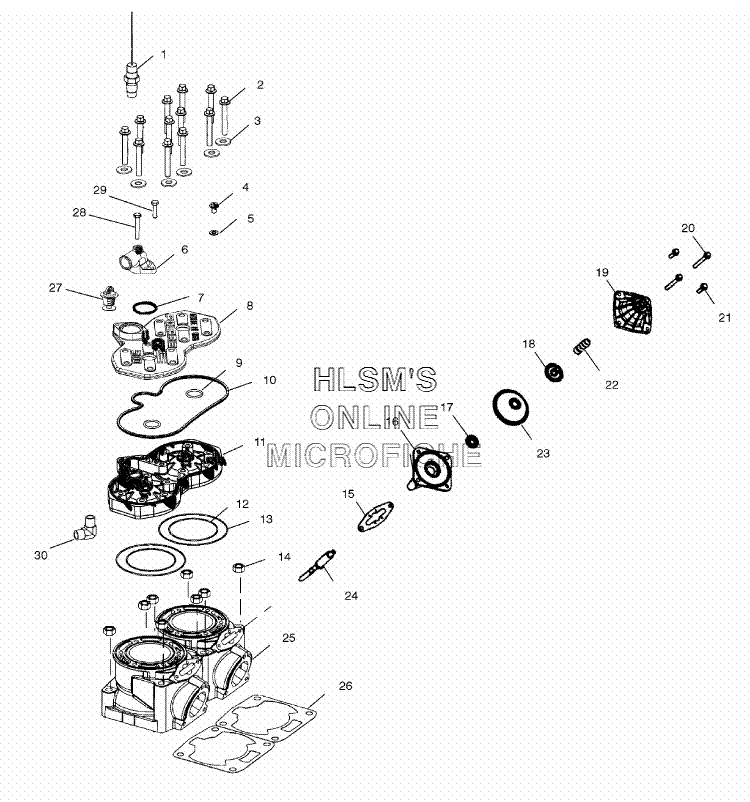

CYLINDER ASSEMBLY для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска`
-
№АртикулНазвание
-
14010614 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
27517533 SCREWSCREW
-
37556082 WASHERWASHER
-
47517679 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
65630992 COVER, THERMISTERCOVER, THERMISTER
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85631199-366 COVER, HEADCOVER, HEAD
-
95411411 O-RINGO-RING
-
105411465 SEAL, HEAD (MIDDLE)SEAL, HEAD (MIDDLE)
-
113021278 HEAD, CYLINDERHEAD, CYLINDER
-
125410932 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
155812350 GASKET, BASE TO CYLINDER EXHAUST VALVEGASKET, BASE TO CYLINDER EXHAUST VALVE
-
161202216 BASE ASSY., EXHAUST VALVEBASE ASSY., EXHAUST VALVE
-
175132950 WASHER, BELLOWS EXHAUST VALVEWASHER, BELLOWS EXHAUST VALVE
-
185631152 CAP/NUT, BELLOWS EXHAUST VALVECAP/NUT, BELLOWS EXHAUST VALVE
-
195434175 HOUSING ASSY. W/BUSHINGHOUSING ASSY. W/BUSHING
-
207516820 SCREWSCREW
-
217517932 SCREWSCREW
-
227041704-03 SPRING (PINK)SPRING (PINK)
-
235412056 BELLOWS, EXHAUST MODIFIEDBELLOWS, EXHAUST MODIFIED
-
241201958 VALVE, GUILLOTINEVALVE, GUILLOTINE
-
253021257 CYLINDERCYLINDER
-
265811916 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
277052267 THERMOSTATTHERMOSTAT
-
287516818 SCREWSCREW
-
297516822 SCREWSCREW
-
307052221 FITTINGFITTING
