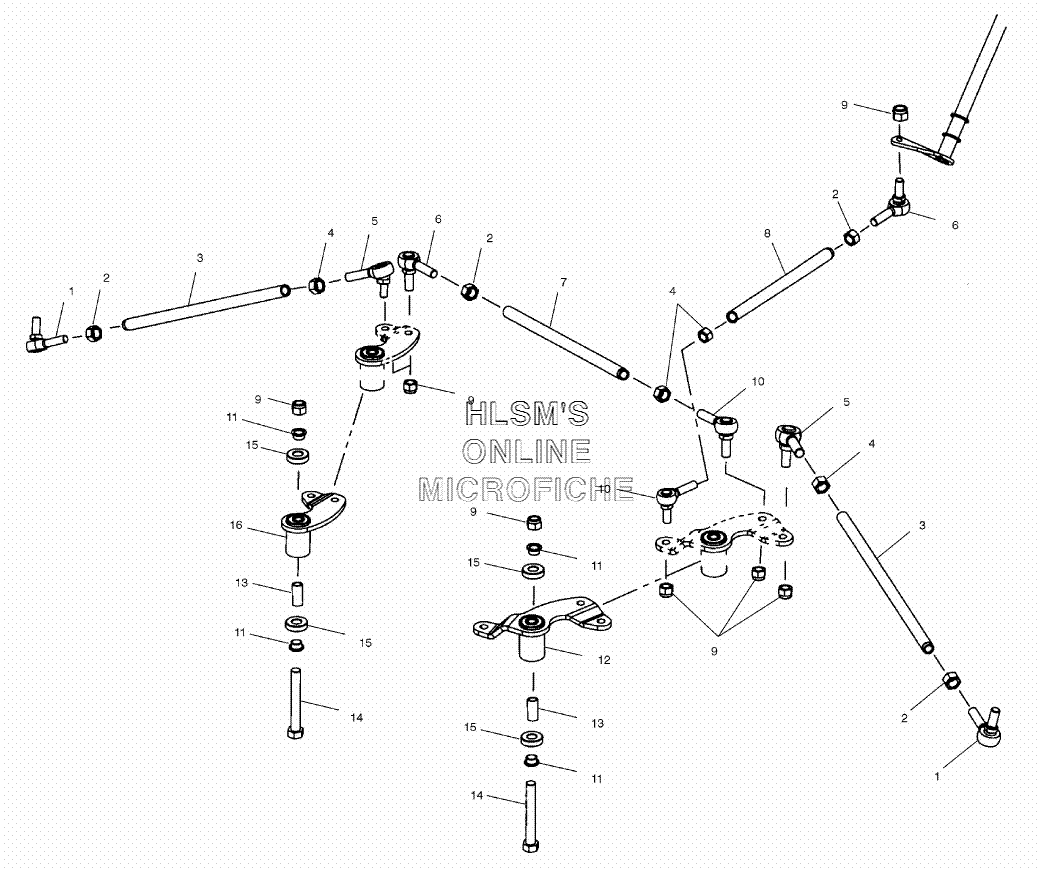

STEERING ASSEMBLY для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска
-
№АртикулНазвание
-
17061057 ROD, END (RIGHT)ROD, END (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35333949-293 ROD, TIE (RED)ROD, TIE (RED)
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD, END (LEFT)ROD, END (LEFT)
-
67061076 ROD END (RIGHT)ROD END (RIGHT)
-
75333772 STEERING, ROD RACKSTEERING, ROD RACK
-
85333773-067 ROD, DRAGLINK (BLACK)ROD, DRAGLINK (BLACK)
-
97542439 NUT, NYLOCKNUT, NYLOCK
-
107061075 ROD, END (LEFT)ROD, END (LEFT)
-
115132106 BUSHING, REDUCERBUSHING, REDUCER
-
121820957 PITMAN ARM ASSY. (INCL. 11,13,15)PITMAN ARM ASSY. (INCL. 11,13,15)
-
135132495 SPACER, TUBE PITMAN/IDLER ARMSSPACER, TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING, BALLBEARING, BALL
-
161820959 IDLER ARM ASSY. (INCL. 11,13,15)IDLER ARM ASSY. (INCL. 11,13,15)
