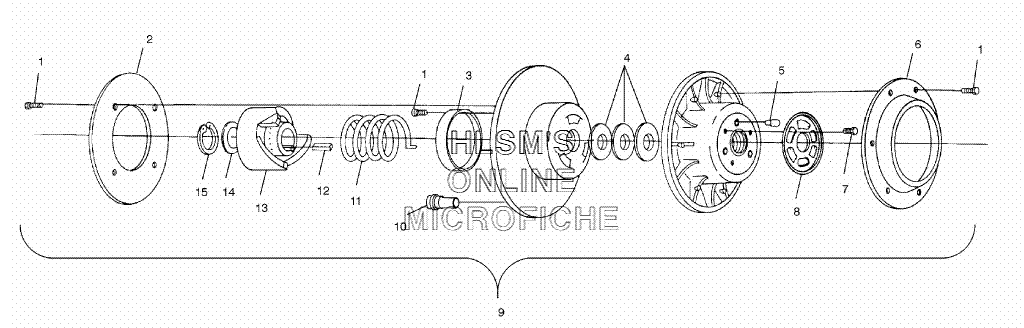

CLUTCH - DRIVEN для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    5243158 PLATE, DRIVEN
    PLATE, DRIVEN
  • 3
    3569803 BUSHING, D.U.
    BUSHING, D.U.
  • 4
    7556804 WASHER (.03)
    WASHER (.03)
  • 4
    7555898 WASHER
    WASHER
  • 4
    7556076 WASHER (.025)
    WASHER (.025)
  • 4
    7555865 WASHER, DRIVE CLUTCH (.075)
    WASHER, DRIVE CLUTCH (.075)
  • 5
    5020653 PIN, CLUTCH
    PIN, CLUTCH
  • 6
    5243157 CAP, DRIVEN
    CAP, DRIVEN
  • 7
    7515133 SCREW
    SCREW
  • 8
    5222878 CAM, DRIVEN ADJUSTABLE
    CAM, DRIVEN ADJUSTABLE
  • 9
    1321927 DRIVEN CLUTCH ASSY. (INCL. 1,3,4,5,7,8,10,12,13,14,15)
    DRIVEN CLUTCH ASSY. (INCL. 1,3,4,5,7,8,10,12,13,14,15)
  • 10
    5430466 BUTTON, RAMP
    BUTTON, RAMP
  • 11
    7041646 SPRING, CLUTCH (BLUE)
    SPRING, CLUTCH (BLUE)
  • 12
    7721103 KEY, SQUARE
    KEY, SQUARE
  • 13
    5131297 RAMP, DRIVEN
    RAMP, DRIVEN
  • 14
    7556804 WASHER
    WASHER
  • 15
    7714804 RING, RETAINING
    RING, RETAINING
