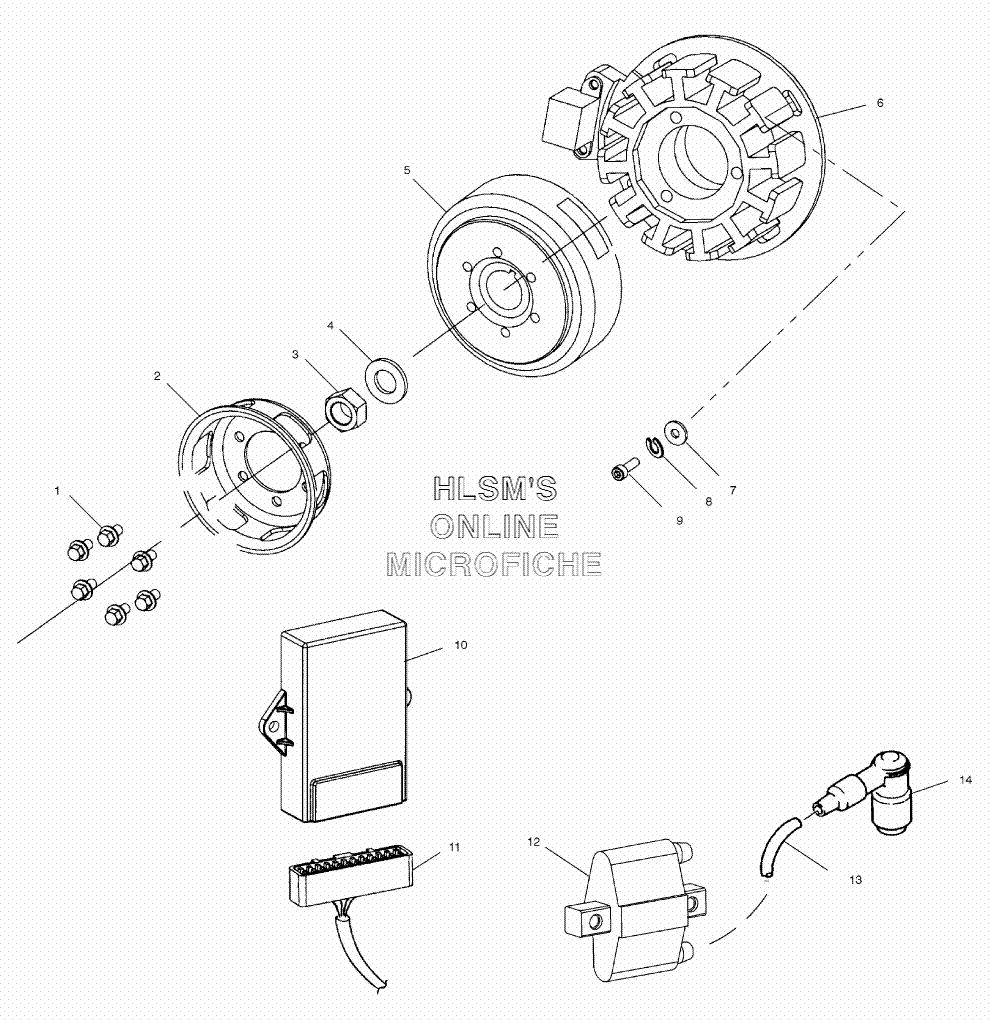

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010523 FLYWHEEL, IGNITION W/O GLUEFLYWHEEL, IGNITION W/O GLUE
-
64060222 STATOR, IGNITIONSTATOR, IGNITION
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102201927 CDI KIT (INCL. NYOGEL AND DECAL)CDI KIT (INCL. NYOGEL AND DECAL)
-
114010549 HARNESS, IGNITIONHARNESS, IGNITION
-
124060229 COIL, IGNITIONCOIL, IGNITION
-
134010124-305 WIRE, IGNITION BULK (305CM.)WIRE, IGNITION BULK (305CM.)
-
144020159 CAP, SPARK PLUGCAP, SPARK PLUG
