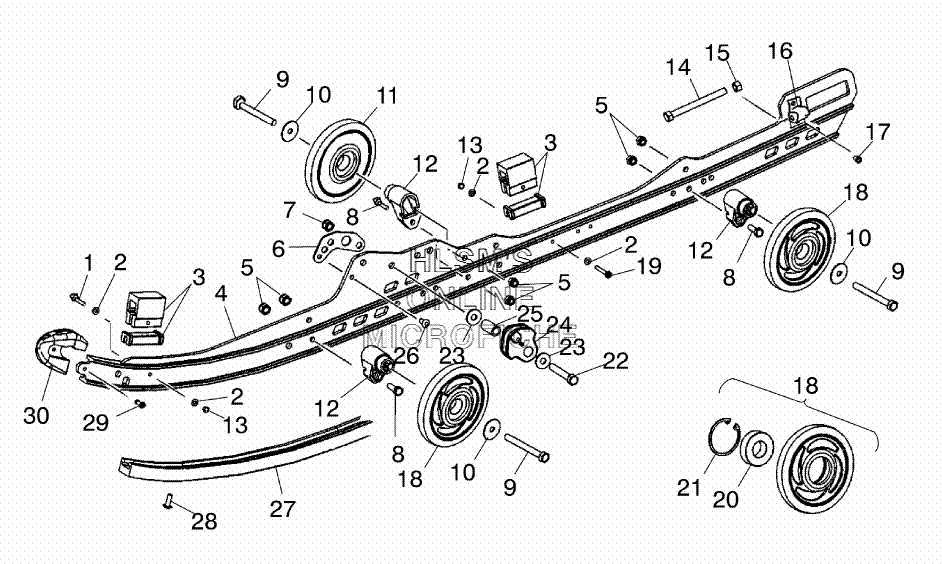

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7510504 SCREW
    SCREW
  • 2
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 3
    5521498 BUMPER, JOUNCE (REAR)
    BUMPER, JOUNCE (REAR)
  • 3
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 4
    1541668 RAIL, ASSY. (LEFT) (INCL. 1, 2, 3, 4, 16, 17, 29, 30)
    RAIL, ASSY. (LEFT) (INCL. 1, 2, 3, 4, 16, 17, 29, 30)
  • 4
    1541669 RAIL, ASSY. (RIGHT) (INCL. 1, 2, 3, 4, 16, 17, 29, 30)
    RAIL, ASSY. (RIGHT) (INCL. 1, 2, 3, 4, 16, 17, 29, 30)
  • 5
    7542324 NUT, NYLOCK
    NUT, NYLOCK
  • 6
    5245411 BRACKET, RAIL REINFORCEMENT
    BRACKET, RAIL REINFORCEMENT
  • 7
    7542439 NUT, NYLOCK
    NUT, NYLOCK
  • 8
    7515317 BOLT
    BOLT
  • 9
    7515346 SCREW
    SCREW
  • 10
    7556179 WASHER, SPRING
    WASHER, SPRING
  • 11
    1590317 WHEEL, ASSY. BOGIE PLAIN
    WHEEL, ASSY. BOGIE PLAIN
  • 12
    5631065 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 13
    7541925 NUT, NYLOCK
    NUT, NYLOCK
  • 14
    7517227 SCREW
    SCREW
  • 15
    7542404 NUT
    NUT
  • 16
    5130530 BLOCK, IDLER BOLT ADJUST
    BLOCK, IDLER BOLT ADJUST
  • 17
    7621501 RIVET
    RIVET
  • 18
    1590318-293 WHEEL SCROLLED ASSY. (RED) (INCL. 20, 21)
    WHEEL SCROLLED ASSY. (RED) (INCL. 20, 21)
  • 19
    7510504 SCREW
    SCREW
  • 20
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 21
    7718407 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 22
    7515438 BOLT
    BOLT
  • 23
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 24
    5433922 GUIDE, SPRING SQUARE
    GUIDE, SPRING SQUARE
  • 25
    5333948 SPACER
    SPACER
  • 26
    7661845 RIVET
    RIVET
  • 27
    5521580-309 HI-FAX
    HI-FAX
  • 28
    7515199 SCREW
    SCREW
  • 29
    7621435 RIVET
    RIVET
  • 30
    5434168 CAP, RAIL TIP
    CAP, RAIL TIP
