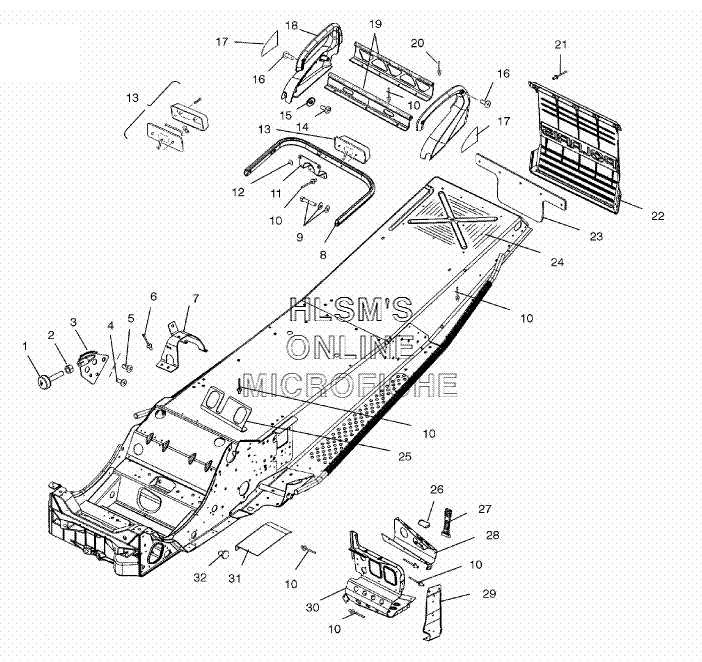

FRAME - CHASSIS для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    1013452-309 CHASSIS, ASSY. SVC EDGE NATURAL
    CHASSIS, ASSY. SVC EDGE NATURAL
  • 1
    3021104 STOP, TORQUE COURSE
    STOP, TORQUE COURSE
  • 2
    7542404 NUT
    NUT
  • 3
    1013379 WELD, TORQUE STOP
    WELD, TORQUE STOP
  • 4
    7517854 SCREW
    SCREW
  • 5
    7517632 SCREW
    SCREW
  • 6
    7621432 RIVET
    RIVET
  • 7
    5245003 BRACKET, JACKSHAFT SHIELD
    BRACKET, JACKSHAFT SHIELD
  • 8
    2632413-309 BUMPER, ASSY. (REAR)
    BUMPER, ASSY. (REAR)
  • 9
    7512113 BOLT
    BOLT
  • 9
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 9
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 10
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 11
    5245419-067 BRACKET, TAILLIGHT (BLACK)
    BRACKET, TAILLIGHT (BLACK)
  • 12
    7670093 CLIP, RETAINER
    CLIP, RETAINER
  • 13
    2410267 ASSY. TAILLIGHT
    ASSY. TAILLIGHT
  • 13
    7512088 SCREW, TAILLIGHT
    SCREW, TAILLIGHT
  • 13
    4032085 LENS, STOP AND TAILLIGHT
    LENS, STOP AND TAILLIGHT
  • 13
    4032086 GASKET, TAILLIGHT AND STOP/LIGHT
    GASKET, TAILLIGHT AND STOP/LIGHT
  • 13
    4032087 BACKING (STOP AND TAIL)
    BACKING (STOP AND TAIL)
  • 13
    4030043 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 14
    7512094 SCREW
    SCREW
  • 15
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 16
    7517686 SCREW
    SCREW
  • 17
    7079667 DECAL, REFLECTOR (RED) (LEFT)
    DECAL, REFLECTOR (RED) (LEFT)
  • 17
    7079668 DECAL, REFLECTOR (RED) (RIGHT)
    DECAL, REFLECTOR (RED) (RIGHT)
  • 18
    5434097-070 SKIRT, SNOW EDGE (LEFT) (BLACK)
    SKIRT, SNOW EDGE (LEFT) (BLACK)
  • 18
    5434098-070 SKIRT, SNOW EDGE (RIGHT) (BLACK)
    SKIRT, SNOW EDGE (RIGHT) (BLACK)
  • 19
    5133058 RACK MACHINED, EDGE RMK (FRONT)
    RACK MACHINED, EDGE RMK (FRONT)
  • 19
    5133059 RACK MACHINED, EDGE RMK (REAR)
    RACK MACHINED, EDGE RMK (REAR)
  • 20
    7661130 RIVET
    RIVET
  • 21
    7621418 POP RIVET
    POP RIVET
  • 22
    5434356-1106 FLAP, SNOW (BLACK W/CHROME)
    FLAP, SNOW (BLACK W/CHROME)
  • 23
    5812229 SUPPORT, SNOW FLAP
    SUPPORT, SNOW FLAP
  • 24
    5412033 PROTECTOR, BED RMK EDGE F/R
    PROTECTOR, BED RMK EDGE F/R
  • 24
    5412074 PROTECTOR, BED, RMK EDGE (LEFT)
    PROTECTOR, BED, RMK EDGE (LEFT)
  • 24
    5412075 PROTECTOR, BED (RIGHT)
    PROTECTOR, BED (RIGHT)
  • 25
    5245725 BRACKET, AIRBOX EDGE
    BRACKET, AIRBOX EDGE
  • 26
    5521238 EXTRUSION, CLUTCH GUARD
    EXTRUSION, CLUTCH GUARD
  • 27
    5433150 STRAP
    STRAP
  • 28
    5245457 MOUNT, CONSOLE TOE CLIP (LEFT)
    MOUNT, CONSOLE TOE CLIP (LEFT)
  • 28
    5245458 MOUNT, CONSOLE TOE CLIP (RIGHT)
    MOUNT, CONSOLE TOE CLIP (RIGHT)
  • 29
    5242741 SUPPORT, FOOTREST (LEFT)
    SUPPORT, FOOTREST (LEFT)
  • 29
    5242742 SUPPORT, FOOTREST (RIGHT)
    SUPPORT, FOOTREST (RIGHT)
  • 30
    5245288 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 30
    5242740 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 31
    5221583 GUARD, ADAPTER DRIVE
    GUARD, ADAPTER DRIVE
  • 32
    7080416 PLUG, HOLE
    PLUG, HOLE
