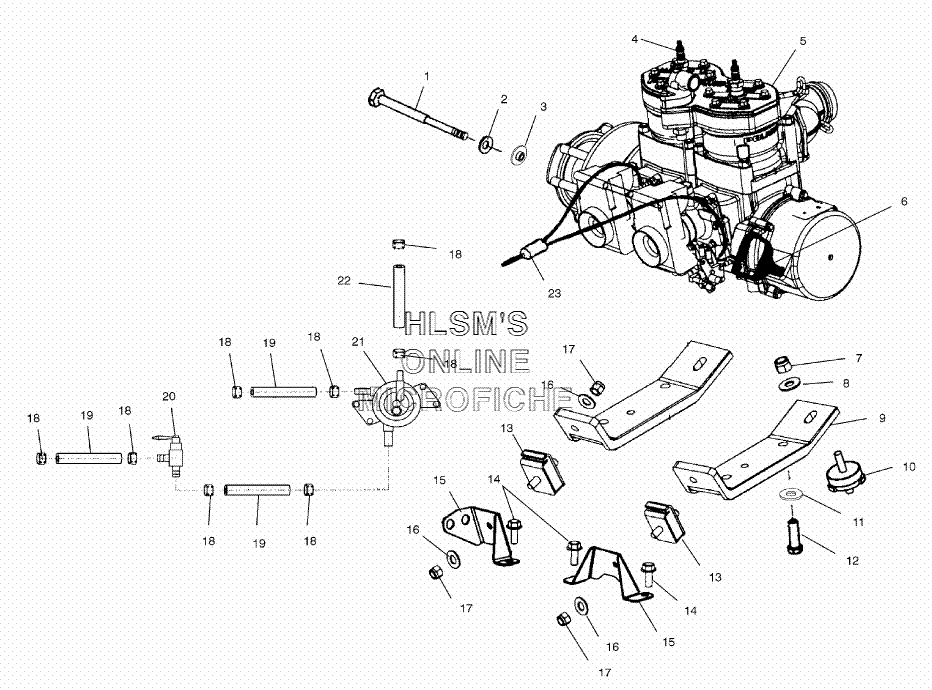

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517501 SCREW
    SCREW
  • 2
    7556003 WASHER
    WASHER
  • 3
    5131872 WASHER, CLUTCH RET.
    WASHER, CLUTCH RET.
  • 4
    3070190 SPARKPLUG, CHAMPION (RN57Y CC)
    SPARKPLUG, CHAMPION (RN57Y CC)
  • 5
    2201935 ENGINE, SHORT BLOCK ASSY.
    ENGINE, SHORT BLOCK ASSY.
  • 6
    5431499-070 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 7
    7542451 NUT, NYLOCK
    NUT, NYLOCK
  • 8
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 9
    5244951 STRAP, ENGINE MOUNT (LEFT)
    STRAP, ENGINE MOUNT (LEFT)
  • 9
    5244952 STRAP, ENGINE MOUNT (RIGHT)
    STRAP, ENGINE MOUNT (RIGHT)
  • 10
    3021116 ENGINE, MOUNTING
    ENGINE, MOUNTING
  • 11
    7553101 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    7512539 BOLT
    BOLT
  • 13
    3021206 MOUNT, ENGINE
    MOUNT, ENGINE
  • 14
    7517854 SCREW
    SCREW
  • 15
    1013397 WELD, ENGINE MOUNT BRACKET (LEFT)
    WELD, ENGINE MOUNT BRACKET (LEFT)
  • 15
    5245044 BRACKET, ENGINE MOUNT FORMED (RIGHT)
    BRACKET, ENGINE MOUNT FORMED (RIGHT)
  • 16
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 17
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 18
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    8350017-600 FUEL LINE, ETHER 5/16'' (RED)
    FUEL LINE, ETHER 5/16'' (RED)
  • 20
    7052268 VALVE, FUEL SHUTOFF 5/16 ID
    VALVE, FUEL SHUTOFF 5/16 ID
  • 21
    2520243 PUMP, FUEL ALUM. SM BLOCK
    PUMP, FUEL ALUM. SM BLOCK
  • 22
    8450040-600 FUEL LINE (1/4 ID/600 CM.)
    FUEL LINE (1/4 ID/600 CM.)
  • 23
    7080867 CABLE, THROTTLE TWIN
    CABLE, THROTTLE TWIN
