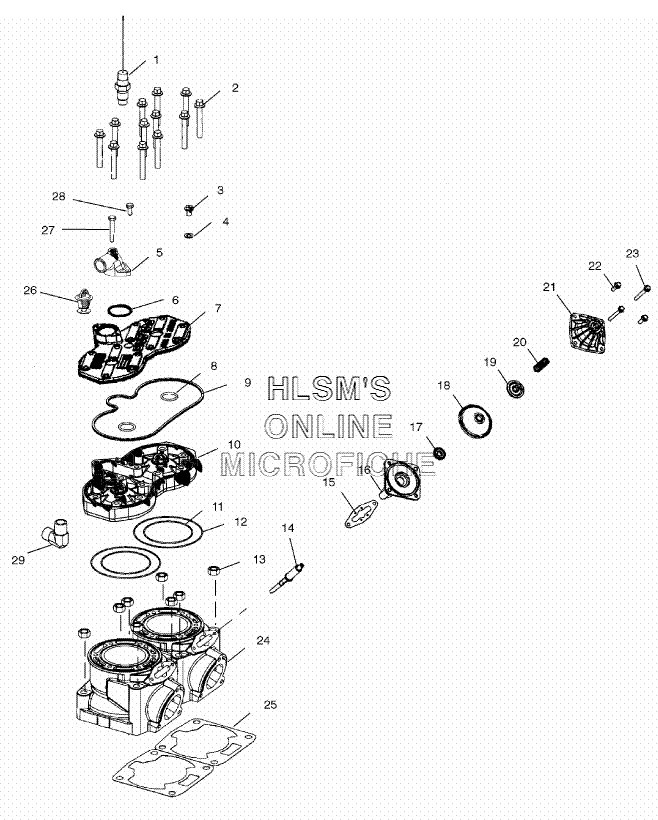

CYLINDER ASSEMBLY для Polaris 600 RMK 136 BUILT BEFORE 3/1/01 (S02NJ6ESB) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    4010251 SENSOR, THERMISTER
    SENSOR, THERMISTER
  • 2
    7517533 SCREW
    SCREW
  • 3
    7517679 SCREW
    SCREW
  • 4
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 5
    5631391 HOUSING, THERMOSTAT
    HOUSING, THERMOSTAT
  • 6
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 7
    5631199-366 COVER, HEAD
    COVER, HEAD
  • 8
    5411411 O-RING
    O-RING
  • 9
    5411465 SEAL, MLDD.HEAD, TWIN
    SEAL, MLDD.HEAD, TWIN
  • 10
    3021278 CYLINDER, HEAD
    CYLINDER, HEAD
  • 11
    5410932 O-RING
    O-RING
  • 12
    5411359 O-RING
    O-RING
  • 13
    7547013 NUT
    NUT
  • 14
    1201958 VALVE, GUILLOTINE
    VALVE, GUILLOTINE
  • 15
    5812241 GASKET, BASE TO CYLINDER EXHAUST VALVE
    GASKET, BASE TO CYLINDER EXHAUST VALVE
  • 16
    1202216 BASE EXHAUST VALVE DOM, ASSY.
    BASE EXHAUST VALVE DOM, ASSY.
  • 17
    5132950 WASHER, BELLOWS EXHAUST VALVE
    WASHER, BELLOWS EXHAUST VALVE
  • 18
    5412056 BELLOWS, EXHAUST MODIFIED
    BELLOWS, EXHAUST MODIFIED
  • 19
    5631152 CAP/NUT, BELLOWS EXHAUST VALVE DOM
    CAP/NUT, BELLOWS EXHAUST VALVE DOM
  • 20
    7041704-03 SPRING, PINK
    SPRING, PINK
  • 21
    5434175 HOUSING, W/BUSHING ASSY.
    HOUSING, W/BUSHING ASSY.
  • 22
    7516820 SCREW
    SCREW
  • 23
    7517932 SCREW
    SCREW
  • 24
    3021257 CYLINDER, 77.25 SNO EV
    CYLINDER, 77.25 SNO EV
  • 25
    5811916 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 26
    7052267 THERMOSTAT (50C)
    THERMOSTAT (50C)
  • 27
    7516818 SCREW
    SCREW
  • 28
    7516822 SCREW
    SCREW
  • 29
    7052221 FITTING
    FITTING
