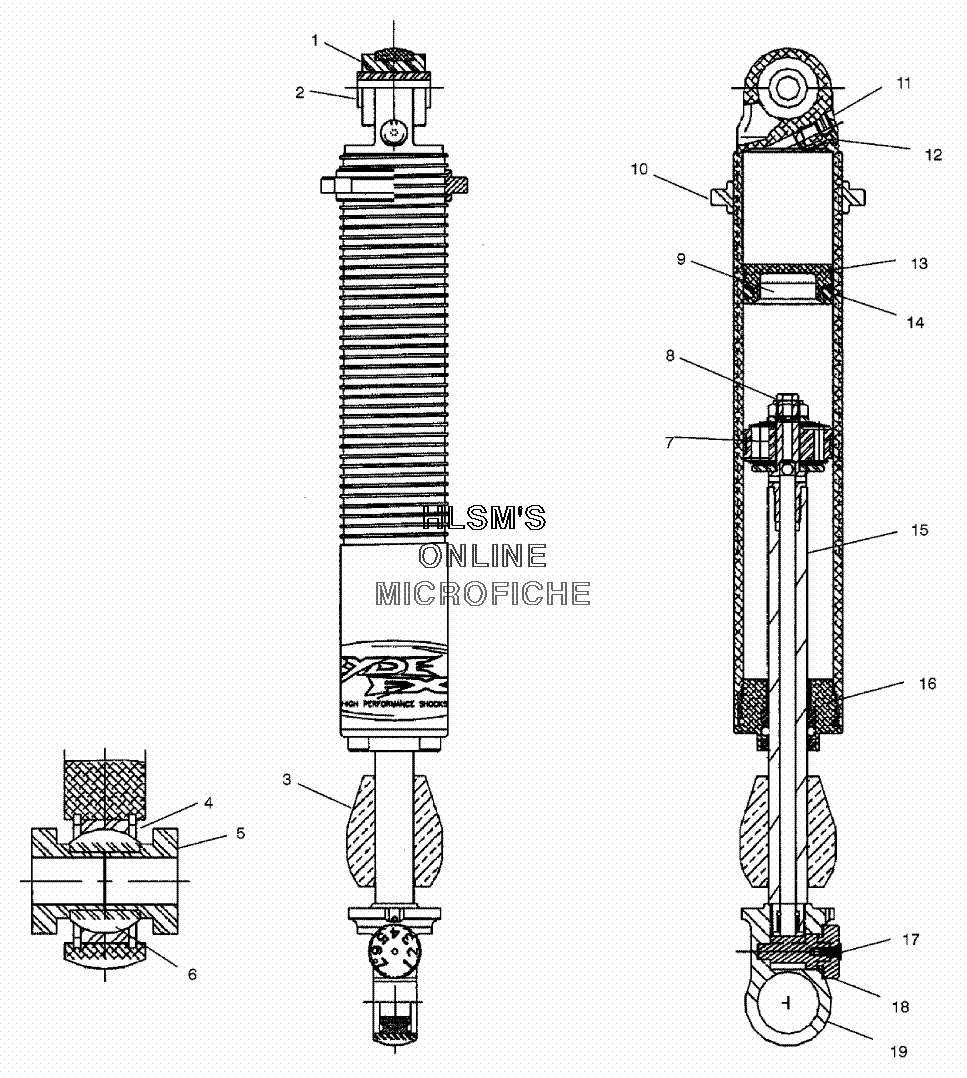

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 25
    7042109 SHOCK, IFS, COMPRESSION
    SHOCK, IFS, COMPRESSION
  • 25
    2200618 VALV.PISTON KIT
    VALV.PISTON KIT
  • 1
    1700036 BUSHING
    BUSHING
  • 2
    1700037 SLEEVE .38"IDX.63"ODX1.18 STEEL
    SLEEVE .38"IDX.63"ODX1.18 STEEL
  • 3
    1700042 COMP, BUMPER
    COMP, BUMPER
  • 4
    1700067 SNAP RING
    SNAP RING
  • 5
    1700066 SPACER
    SPACER
  • 6
    1700068 SPHERICAL BEARING
    SPHERICAL BEARING
  • 7
    1700109 BANDED PISTON .094" ORIFICE
    BANDED PISTON .094" ORIFICE
  • 7
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 7
    1700077 TOP-OUT WASHER
    TOP-OUT WASHER
  • 7
    1700078 BACK-UP WASHER
    BACK-UP WASHER
  • 8
    1700057 NUT
    NUT
  • 9
    1700023 IFP
    IFP
  • 10
    1700030 SPRING-RET NUT
    SPRING-RET NUT
  • 11
    1700056 VALVE SCREW
    VALVE SCREW
  • 12
    1700184 PRESS, VALVE ASSY
    PRESS, VALVE ASSY
  • 13
    1700032 IFP WEAR BAND
    IFP WEAR BAND
  • 14
    1700048 IFP-O-RING
    IFP-O-RING
  • 15
    1700189 SHAFT ASSY.
    SHAFT ASSY.
  • 16
    1700190 CYL. HEAD ASSY.
    CYL. HEAD ASSY.
  • 16
    1700051 CYL, HEAD O-RING
    CYL, HEAD O-RING
  • 16
    1700019 ROD SCRAPER
    ROD SCRAPER
  • 16
    1700046 CYL, HEAD O-RING
    CYL, HEAD O-RING
  • 16
    1700020 ROD SEAL
    ROD SEAL
  • 17
    1700192 SCREW
    SCREW
  • 18
    1700193 KNOB
    KNOB
  • 19
    1700191 MOUNT ASSY. (INCL. 17, 18) (UPPER)
    MOUNT ASSY. (INCL. 17, 18) (UPPER)
