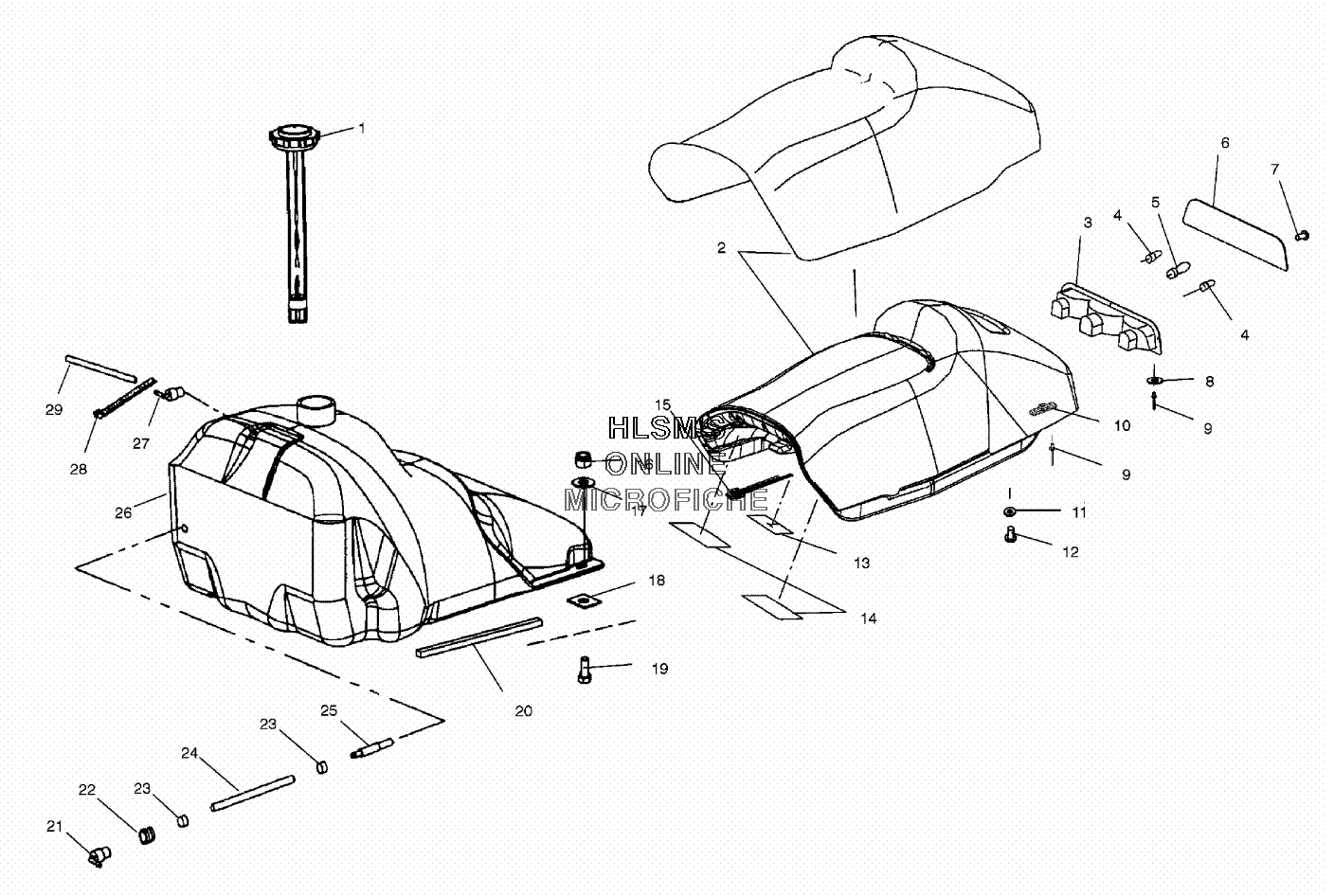

SEAT W/ GAS TANK ASSEMBLY для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240066 CAP, FUEL, 12.5, W/GAUGE
    CAP, FUEL, 12.5, W/GAUGE
  • 2
    2683107 SEAT ASSY., PRO X (INCL. 2-7, 10)
    SEAT ASSY., PRO X (INCL. 2-7, 10)
  • 2
    2683102 SEAT COVER ASSY. EDGE, PRO X
    SEAT COVER ASSY. EDGE, PRO X
  • 3
    5433341 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 4
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 5
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 6
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 7
    7511840 SCREW
    SCREW
  • 8
    7555727 RIVET BURR
    RIVET BURR
  • 9
    7621319 RIVET
    RIVET
  • 10
    5631194 NUT-SEAT
    NUT-SEAT
  • 11
    7558301 WASHER,
    WASHER,
  • 12
    7517219 SCREW
    SCREW
  • 13
    5812291 GASKET, WIREHARNESS
    GASKET, WIREHARNESS
  • 14
    5812289 PATCH 3.00 X 4.00
    PATCH 3.00 X 4.00
  • 15
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 16
    7542122 NUT, LOCK
    NUT, LOCK
  • 17
    7555960 WASHER
    WASHER
  • 18
    7670021 SPEED NUT
    SPEED NUT
  • 19
    7512193 BOLT
    BOLT
  • 20
    5810947 SEAL, FOAM, COOLER (REAR)
    SEAL, FOAM, COOLER (REAR)
  • 21
    7052259 FITTING, 1/4" 90Ш DEX
    FITTING, 1/4" 90Ш DEX
  • 22
    7052028 GROMMET, TANK FITTING
    GROMMET, TANK FITTING
  • 23
    7080402 RING, COMPRESSION,
    RING, COMPRESSION,
  • 24
    8350019-600 FUEL LINE, ESTER
    FUEL LINE, ESTER
  • 25
    7052301 PICK-UP-FUEL, W/FILTER, 105MICRN
    PICK-UP-FUEL, W/FILTER, 105MICRN
  • 26
    2520287 FUEL TANK ASSY., EDGE (INCL. 20-22) (BLACK)
    FUEL TANK ASSY., EDGE (INCL. 20-22) (BLACK)
  • 27
    7052095 FITTING, 90 DEG, 1/8
    FITTING, 90 DEG, 1/8
  • 28
    7080804 CABLE TIE, RELEASABLE 5 1/2"
    CABLE TIE, RELEASABLE 5 1/2"
  • 29
    8450061-600 FUELLINE 3MMX7MM
    FUELLINE 3MMX7MM
