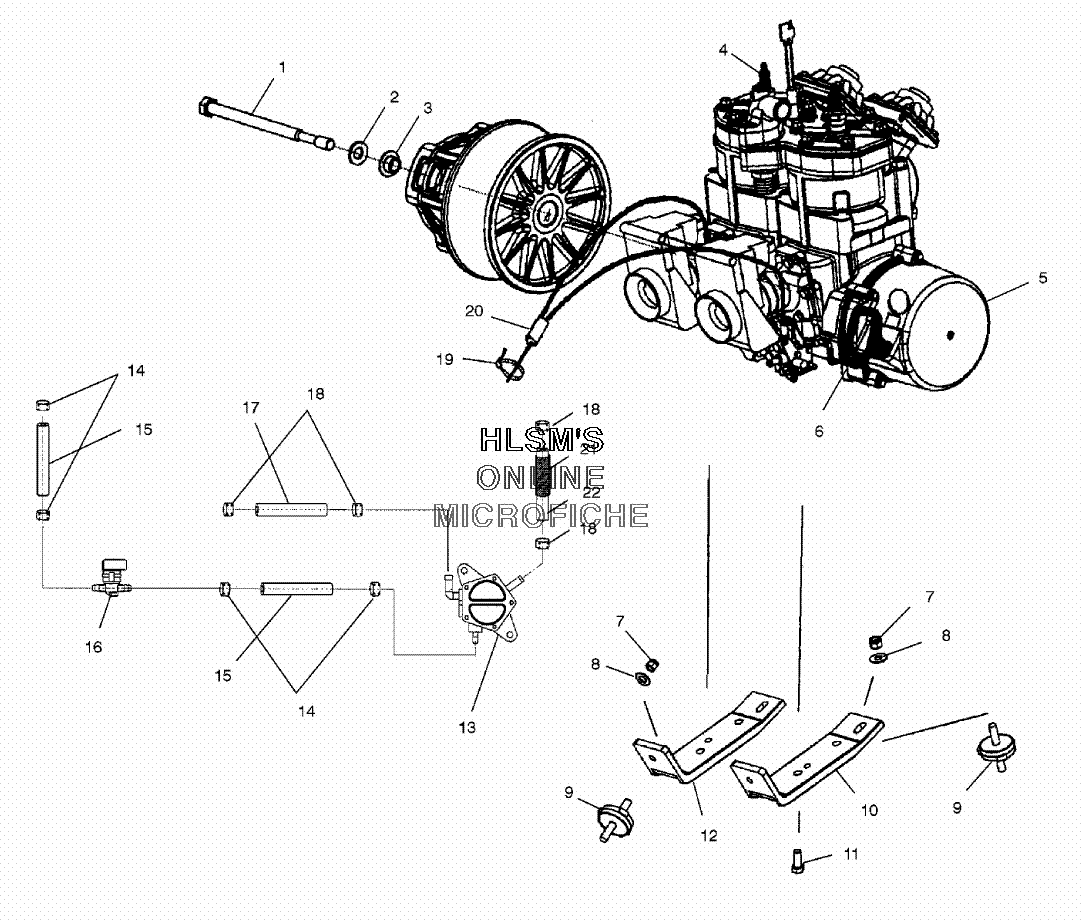

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517501 SCREW
    SCREW
  • 2
    7556003 WASHER
    WASHER
  • 3
    5131872 WASHER, CLUTCH RET
    WASHER, CLUTCH RET
  • 4
    3070190 SPARK. PLUG, CHAMPION RN57Y CC
    SPARK. PLUG, CHAMPION RN57Y CC
  • 5
    2202151 SHORT BLOCK ASSY (BLACK)
    SHORT BLOCK ASSY (BLACK)
  • 6
    5431499-070 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 7
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 8
    7555893 WASHER
    WASHER
  • 9
    3021244 MOUNT, ENGINE 3/8-16, 65 DUR
    MOUNT, ENGINE 3/8-16, 65 DUR
  • 10
    5245271 STRAP, ENGINE MOUNT 440, BASE (RIGHT)
    STRAP, ENGINE MOUNT 440, BASE (RIGHT)
  • 11
    7517399 SCREW
    SCREW
  • 12
    5245270 STRAP, ENGINE MOUNT 440, BASE (LEFT)
    STRAP, ENGINE MOUNT 440, BASE (LEFT)
  • 13
    2520278 PUMP, FUEL
    PUMP, FUEL
  • 14
    7080307 CLAMP
    CLAMP
  • 15
    8350018-600 TUBING, ETHER ERETHNE 160CM SVC
    TUBING, ETHER ERETHNE 160CM SVC
  • 16
    7052248 VALVE-FUEL, PLASTIC, INLINE 1/4"
    VALVE-FUEL, PLASTIC, INLINE 1/4"
  • 17
    8350017-600 FUEL, LINE, ETHER, 5/16" (RED)
    FUEL, LINE, ETHER, 5/16" (RED)
  • 18
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 20
    7080867 CABLE, THROTTLE, TWIN
    CABLE, THROTTLE, TWIN
  • 21
    8360052-15 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 22
    8450040-600 FUEL LINE, 1/4 ID (600 CM.)
    FUEL LINE, 1/4 ID (600 CM.)
