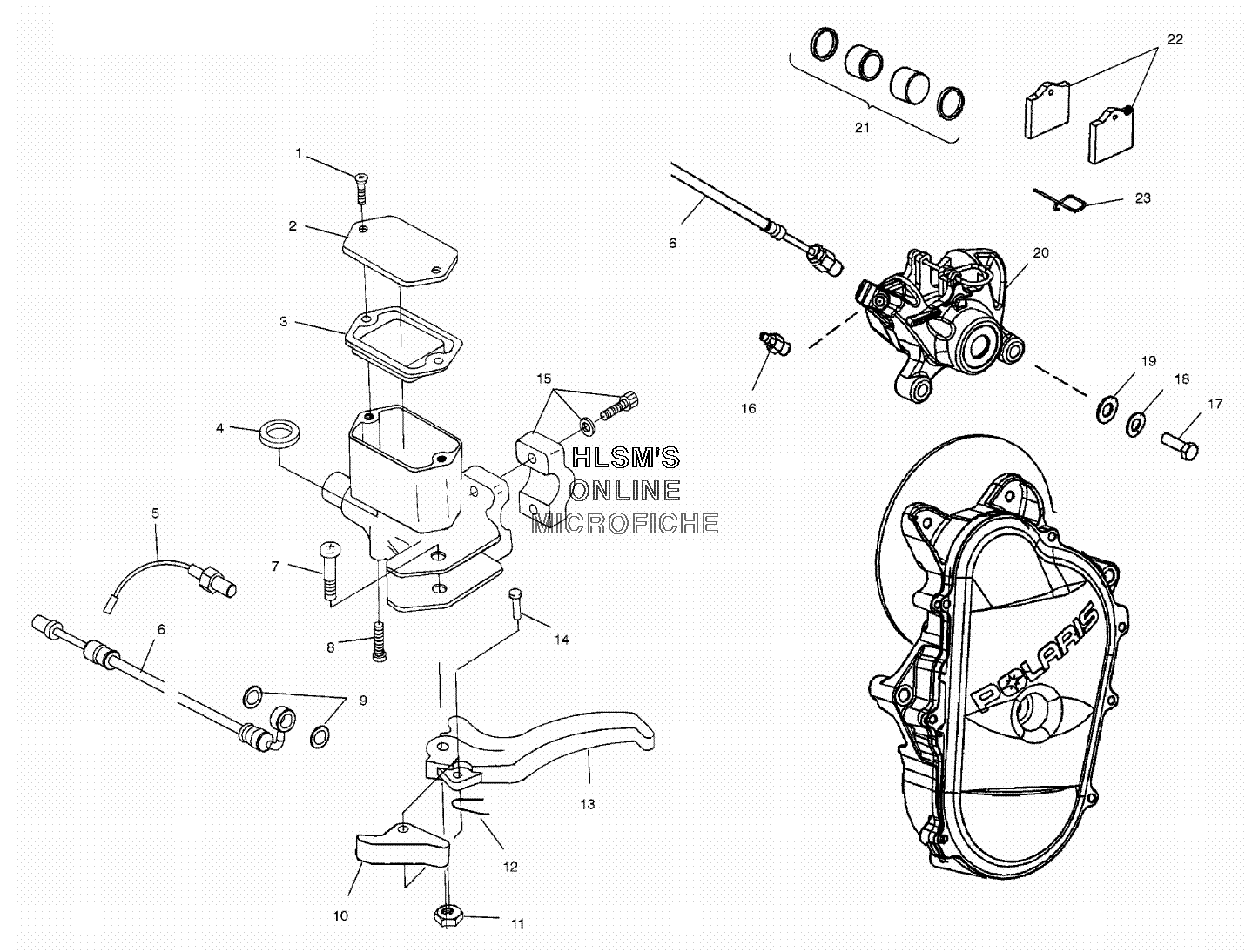

BRAKE ASSEMBLY для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    2010207 MASTER CYL ASSY., 5/8 WIL WOOD (INCL. 1-4, 7, 8, 10-15)
    MASTER CYL ASSY., 5/8 WIL WOOD (INCL. 1-4, 7, 8, 10-15)
  • 1B
    2200809 MASTER CYL RES. KIT (INCL. 1, 2, 3, 4)
    MASTER CYL RES. KIT (INCL. 1, 2, 3, 4)
  • 1
    1930797 BOLT RES.CAP, MASTER CYLINDER KIT
    BOLT RES.CAP, MASTER CYLINDER KIT
  • 2
    1930796 CAP, M.CYL.RES.
    CAP, M.CYL.RES.
  • 3
    1930795 DIAPHRAGM, MASTER CYLINDER RES.
    DIAPHRAGM, MASTER CYLINDER RES.
  • 5
    4010656 SWITCH, PRESSURE BRAKE
    SWITCH, PRESSURE BRAKE
  • 6
    1910602 LINE-BRAKE, BRAIDED
    LINE-BRAKE, BRAIDED
  • 7
    1930805 BOLT, M.CYL.HANDLE PIVOT
    BOLT, M.CYL.HANDLE PIVOT
  • 8
    1930792 BOLT, M.CYL.RESERVOIR, KIT
    BOLT, M.CYL.RESERVOIR, KIT
  • 9
    5410988 SEAL
    SEAL
  • 10
    2201090 LEVER, PARKBRAKE KIT (INCL. 12, 14)
    LEVER, PARKBRAKE KIT (INCL. 12, 14)
  • 11
    1930806 NUT, MASTER CYLINDER HANDLE PIVOT
    NUT, MASTER CYLINDER HANDLE PIVOT
  • 13
    2201921 LEVER, BRAKE, EDGE KIT (INCL. 11-14)
    LEVER, BRAKE, EDGE KIT (INCL. 11-14)
  • 14
    1930804 RIVET
    RIVET
  • 15
    2200808 MASTER CYLINDER CLAMP KIT
    MASTER CYLINDER CLAMP KIT
  • 16
    2202205 BLEEDER FITTING KIT
    BLEEDER FITTING KIT
  • 17
    7515534 BOLT
    BOLT
  • 18
    7552603 WASHER
    WASHER
  • 19
    7556160 WASHER (.380X.813X.150)
    WASHER (.380X.813X.150)
  • 20
    2202199 BRAKE CALIPER L/C LR81 KIT (INCL. BRAKE PAD)
    BRAKE CALIPER L/C LR81 KIT (INCL. BRAKE PAD)
  • 21
    2202207 PISTON/SEAL, KIT
    PISTON/SEAL, KIT
  • 21
    2202204 SEAL KIT
    SEAL KIT
  • 22
    2202203 BRAKE PAD,TYPE 81 KIT
    BRAKE PAD,TYPE 81 KIT
  • 23
    2202206 PIN RETAINING KIT
    PIN RETAINING KIT
