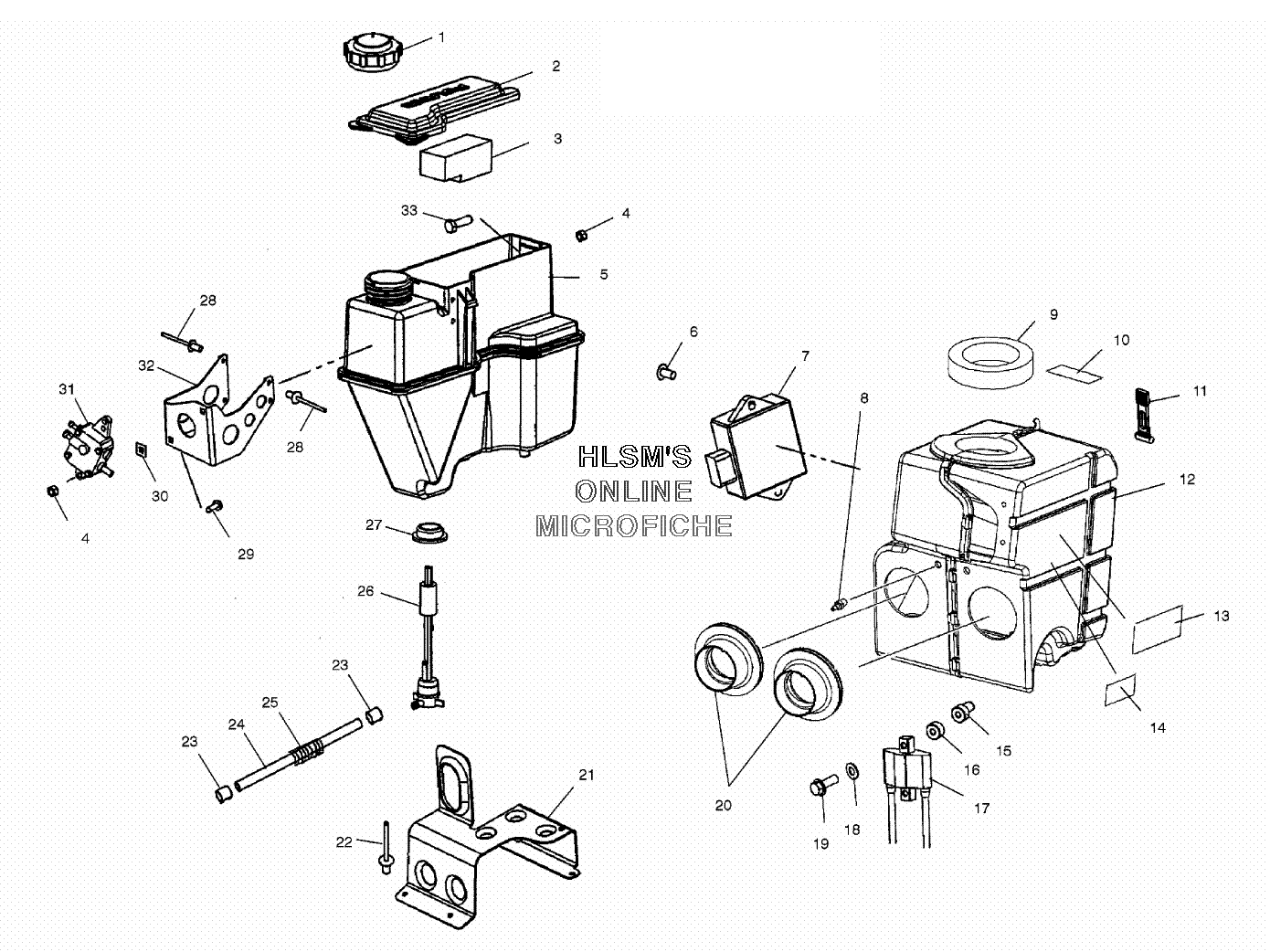

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 600 PRO X (S02NX6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240094 CAP-OIL, VENTED/CUSTOM COLOR
    CAP-OIL, VENTED/CUSTOM COLOR
  • 2
    5434089 COVER, TOOL BOX
    COVER, TOOL BOX
  • 3
    5812209 FOAM, TOOL BOX
    FOAM, TOOL BOX
  • 4
    7542122 NUT, LOCK
    NUT, LOCK
  • 5
    1253456 OIL TANK ASSY., W/SENDING UNIT (INCL. 2, 26)
    OIL TANK ASSY., W/SENDING UNIT (INCL. 2, 26)
  • 5
    1261202 OIL TANK ASSY., W/SENDING UNIT
    OIL TANK ASSY., W/SENDING UNIT
  • 6
    7512095 SCREW
    SCREW
  • 8
    7052077 FITTING
    FITTING
  • 9
    5811983 FOAM, AIRBOX CHIMNEY EDGE
    FOAM, AIRBOX CHIMNEY EDGE
  • 10
    7075351 DECAL, CAUTION AIRBOX
    DECAL, CAUTION AIRBOX
  • 11
    5433150 STRAP, RUBBER
    STRAP, RUBBER
  • 12
    1253416 AIR SILENCER ASSY., 600 RACE (INCL. 20 & DECALS)
    AIR SILENCER ASSY., 600 RACE (INCL. 20 & DECALS)
  • 13
    7073820 DECAL, ADJUST DRIVEN CLUTCH
    DECAL, ADJUST DRIVEN CLUTCH
  • 14
    7073426 DECAL
    DECAL
  • 15
    7547103 NUT
    NUT
  • 16
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 18
    7552604 WASHER
    WASHER
  • 19
    7517610 SCREW
    SCREW
  • 20
    5411424 BOOT, CARB 63MM.
    BOOT, CARB 63MM.
  • 21
    5245801 BRACKET, OIL BOTTLE (LOWER)
    BRACKET, OIL BOTTLE (LOWER)
  • 22
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 23
    7080307 CLAMP
    CLAMP
  • 24
    8450003-1525 FUEL LINE, 1/4 ID (1525 CM.)
    FUEL LINE, 1/4 ID (1525 CM.)
  • 25
    4010051-18 CONDUIT, CONVOL (30 CM)
    CONDUIT, CONVOL (30 CM)
  • 26
    4010550 FITTING, OIL SENDER
    FITTING, OIL SENDER
  • 27
    7052305 GROMMET, OIL SENDER
    GROMMET, OIL SENDER
  • 28
    7621479 RIVET
    RIVET
  • 29
    7512263 BOLT-CARRIAGE
    BOLT-CARRIAGE
  • 30
    7670021 SPEED NUT
    SPEED NUT
  • 32
    5246113 BRACKET-FUEL PUMP
    BRACKET-FUEL PUMP
  • 33
    7512297 BOLT
    BOLT
