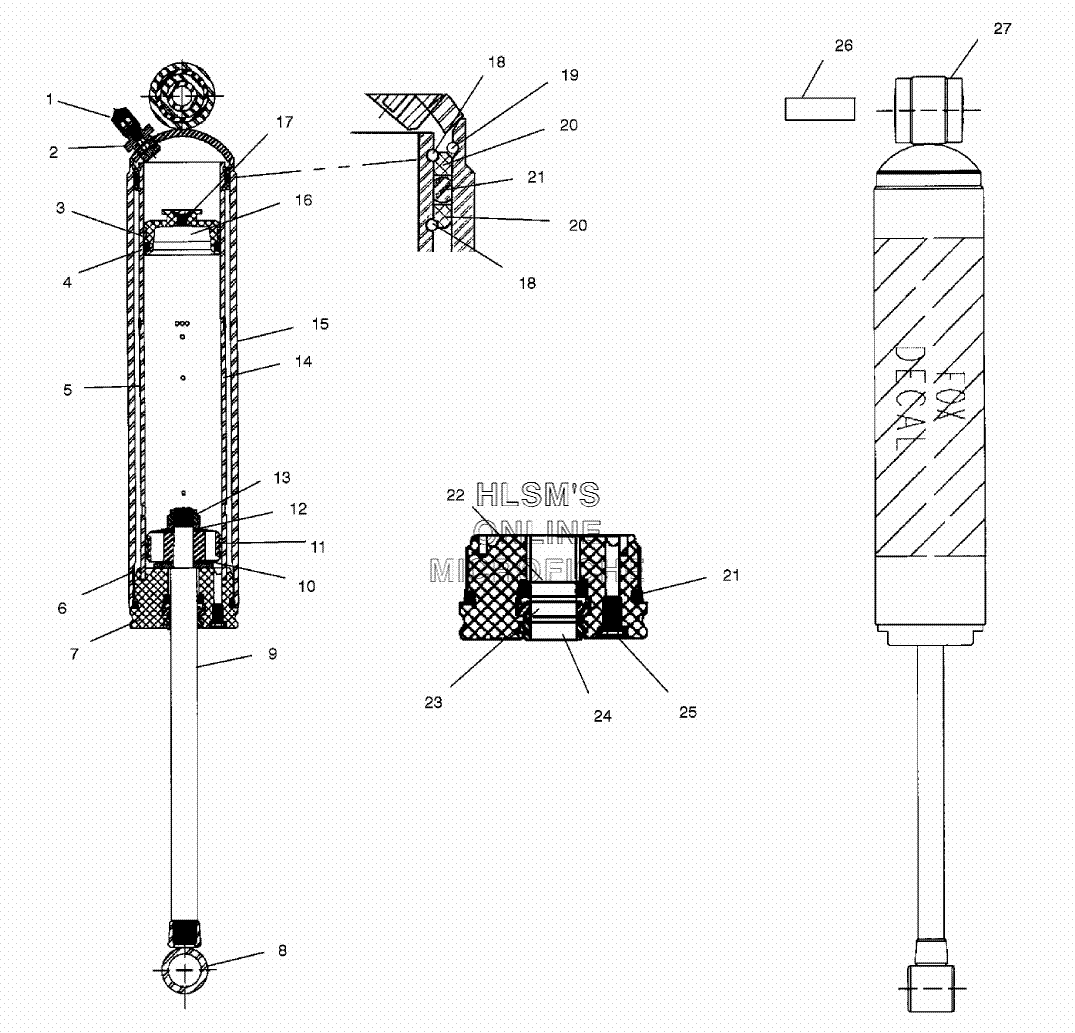

SUSPENSION - FOX SHOCK - REAR TRACK для Polaris 500 XC (S02NP5AS) - 2002 года выпуска`
-
№АртикулНазвание
-
11500210 CAP, SHRADER VALVECAP, SHRADER VALVE
-
21500206 VALVE, AIR COMPLETEVALVE, AIR COMPLETE
-
31500006 RING, PISTON FLOATINGRING, PISTON FLOATING
-
41500003 O-RING, ENDCAP FOXO-RING, ENDCAP FOX
-
51500306 VALVE, CHECK (NBR DURO A 90)VALVE, CHECK (NBR DURO A 90)
-
61500459 O-RINGO-RING
-
71500334 BEARING, W/P.S. GROOVEBEARING, W/P.S. GROOVE
-
81500302 EYELETEYELET
-
91500333 SHAFT (5X8.35 TLG)SHAFT (5X8.35 TLG)
-
101500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
111500002 DAMPER, PISTONRINGDAMPER, PISTONRING
-
121500015 BUSHING, BACKUPBUSHING, BACKUP
-
131500016 NUT, LOCKNUT, LOCK
-
141500331 BODY, ASSY. (INNER) P.S.BODY, ASSY. (INNER) P.S.
-
151500332 BODY, ASSY., P.S. (OUTER)BODY, ASSY., P.S. (OUTER)
-
161500187 PISTON, FLOATINGPISTON, FLOATING
-
171500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
181500097 RING, RETAIN, ATVRING, RETAIN, ATV
-
191500236 RING, RETAININGRING, RETAINING
-
201500336 COLLAR, ALUM.COLLAR, ALUM.
-
211500228 SEAL, O-RINGSEAL, O-RING
-
221500297 SEAL, Q-RINGSEAL, Q-RING
-
231500025 U-CUP-4300 URETH.U-CUP-4300 URETH.
-
241500024 WIPER, CLR (OUTER)WIPER, CLR (OUTER)
-
251500295 SCREWSCREW
-
251500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
261500311 SLEEVESLEEVE
-
271500307 BUSHINGBUSHING
-
277041846 SHOCK, R/T PPSSHOCK, R/T PPS
