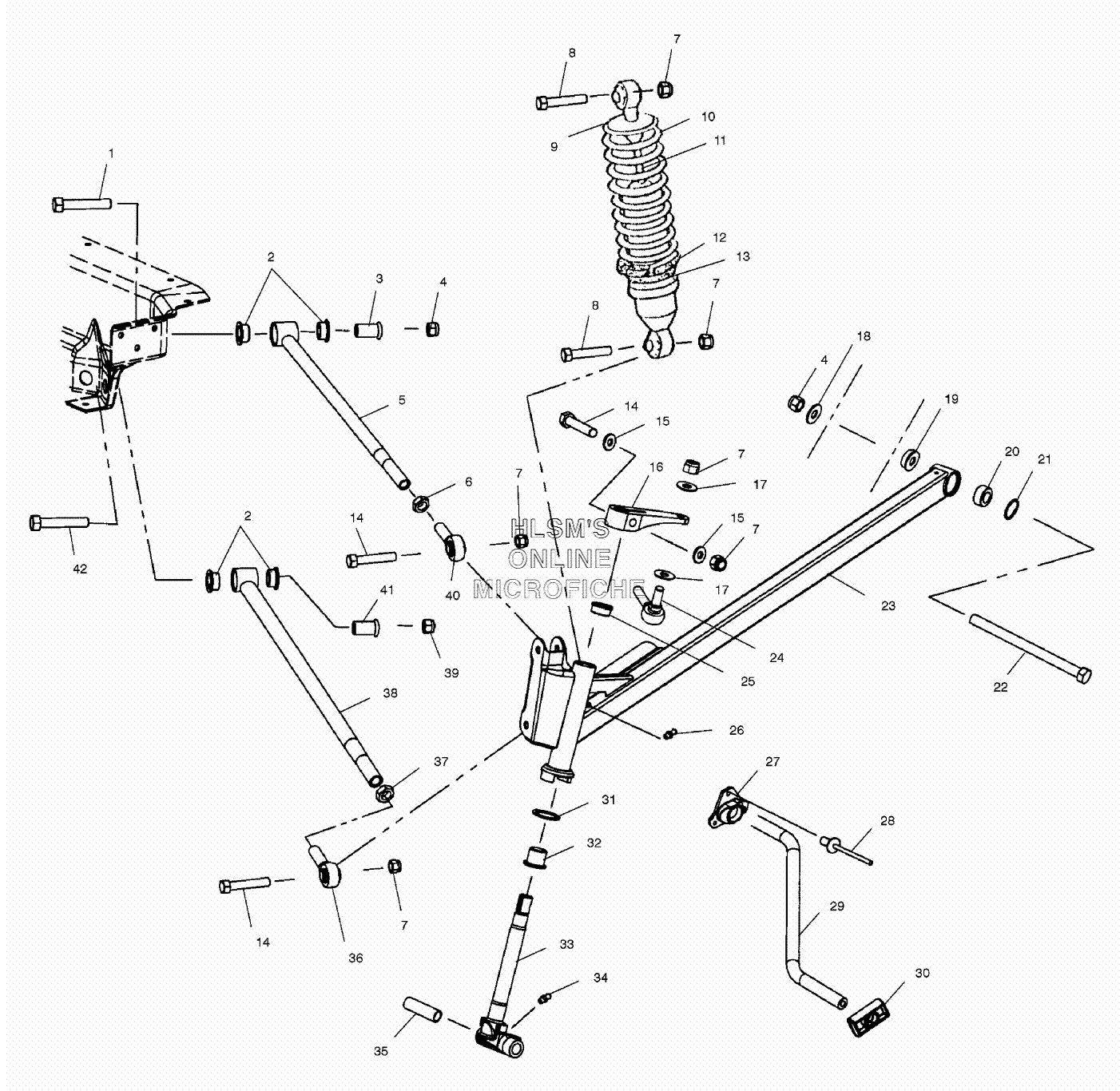

SUSPENSION - FRONT для Polaris 500 XC (S02NP5AS) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7512597 BOLT
    BOLT
  • 2
    5434036 BUSHING, RADIUS ROD PIVOT (INNER)
    BUSHING, RADIUS ROD PIVOT (INNER)
  • 3
    5132779 BUSHING, SHOULDER (.443X.750X1.215)
    BUSHING, SHOULDER (.443X.750X1.215)
  • 4
    7547066 NUT, NYLOK
    NUT, NYLOK
  • 5
    1820679-293 WELD, RADIUS ROD (UPPER/RED)
    WELD, RADIUS ROD (UPPER/RED)
  • 6
    7542520 NUT JAM
    NUT JAM
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7515433 BOLT
    BOLT
  • 9
    5630580 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 10
    7041551-067 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 11
    7041918 SHOCK, GAS, ARVIN 11.09X16.35
    SHOCK, GAS, ARVIN 11.09X16.35
  • 12
    5431734 RING, SPRING PRELOAD ADJUST
    RING, SPRING PRELOAD ADJUST
  • 13
    1500063 RETAINER, SPRING,BODY THREADED
    RETAINER, SPRING,BODY THREADED
  • 14
    7517583 SCREW
    SCREW
  • 15
    7555832 WASHER
    WASHER
  • 16
    5132728 ARM, STEERING, MACHINED EDGE
    ARM, STEERING, MACHINED EDGE
  • 17
    7555797 WASHER
    WASHER
  • 18
    7555820 WASHER
    WASHER
  • 19
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 20
    7061042 BEARING, SPHERICAL (7/16 PLASTIC)
    BEARING, SPHERICAL (7/16 PLASTIC)
  • 21
    7710437 RING, RETAINING
    RING, RETAINING
  • 22
    7512099 BOLT
    BOLT
  • 23
    1821165-293 ASSY, TRAILING ARM, SVC (INCL. 20,21) (LEFT/RED)
    ASSY, TRAILING ARM, SVC (INCL. 20,21) (LEFT/RED)
  • 23
    1821166-293 ASSY, TRAILING ARM, SVC (INCL. 20,21) (RIGHT/RED)
    ASSY, TRAILING ARM, SVC (INCL. 20,21) (RIGHT/RED)
  • 24
    7061057 ROD, END (3/8, PL, 75Ш, 1.00) (RIGHT)
    ROD, END (3/8, PL, 75Ш, 1.00) (RIGHT)
  • 25
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 26
    7080433 ZERK, FITTING THREADED
    ZERK, FITTING THREADED
  • 27
    5433234 BUSHING, TORSION BAR
    BUSHING, TORSION BAR
  • 28
    7621477 RIVET
    RIVET
  • 29
    5244415-067 BAR,TORSION 1/2, 42.5 EDGE (BLACK)
    BAR,TORSION 1/2, 42.5 EDGE (BLACK)
  • 30
    5433884 SLIDE, TORSION BAR 1/2
    SLIDE, TORSION BAR 1/2
  • 31
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 32
    3574208 BUSHING, SPINDLE HOUSING
    BUSHING, SPINDLE HOUSING
  • 33
    6230225-067 SHAFT, SPINDLE W/STEER STOP (BLACK)
    SHAFT, SPINDLE W/STEER STOP (BLACK)
  • 34
    7080306 FITTING, LUBE W/BALL CHECK
    FITTING, LUBE W/BALL CHECK
  • 35
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 36
    7061060 ROD END, RADIUS 1/2
    ROD END, RADIUS 1/2
  • 37
    7542711 NUT, JAM
    NUT, JAM
  • 38
    1820677-293 WELD, RADIUS ROD (LOWER/RED)
    WELD, RADIUS ROD (LOWER/RED)
  • 39
    7547065 NUT, NYLOK
    NUT, NYLOK
  • 40
    7061061 ROD END, RADIUS 7/16
    ROD END, RADIUS 7/16
  • 41
    5132780 BUSHING, SHOULDER (.505X.750X1.215)
    BUSHING, SHOULDER (.505X.750X1.215)
  • 42
    7512684 BOLT
    BOLT
