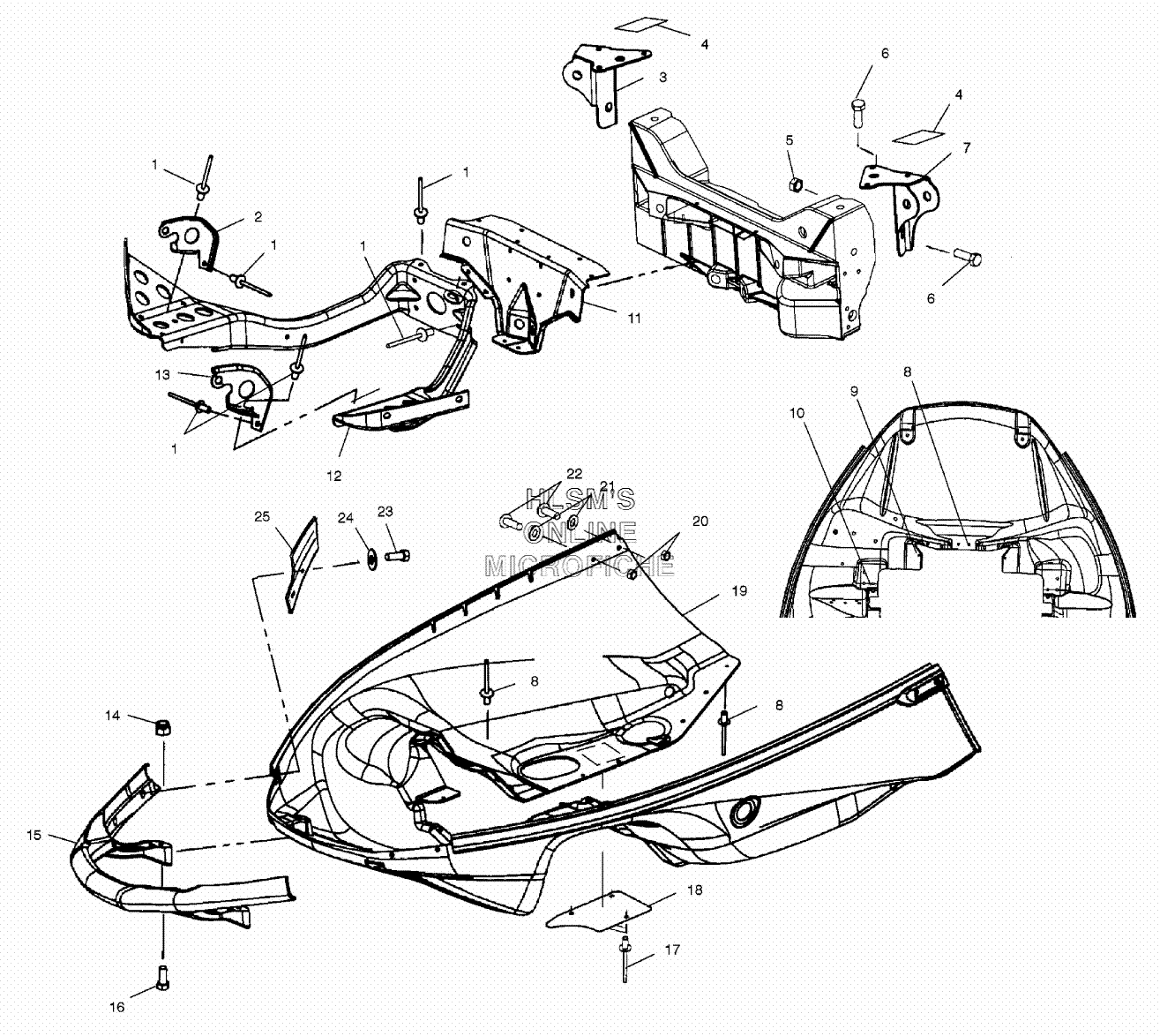

NOSEPAN ASSEMBLY #2 для Polaris 500 XC (S02NP5AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET INTERLOCK Z
    RIVET INTERLOCK Z
  • 2
    5243992-067 HINGE PIVOT (RIGHT/BLACK/LOWER)
    HINGE PIVOT (RIGHT/BLACK/LOWER)
  • 3
    5243978 MOUNT, SHOCK BULKHEAD (RIGHT)
    MOUNT, SHOCK BULKHEAD (RIGHT)
  • 4
    5810947 SEAL, FOAM COOLER (REAR)
    SEAL, FOAM COOLER (REAR)
  • 5
    7547180 NUT, FLANGED NYLON Z
    NUT, FLANGED NYLON Z
  • 6
    7517935 SCREW
    SCREW
  • 7
    5243977 MOUNT, SHOCK BULKHEAD (UPPER/LEFT)
    MOUNT, SHOCK BULKHEAD (UPPER/LEFT)
  • 8
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 9
    7621431 RIVET
    RIVET
  • 10
    7661136 RIVET
    RIVET
  • 11
    5244049-067 BRACKET, RADIUS ROD SUPPORT (BLACK)
    BRACKET, RADIUS ROD SUPPORT (BLACK)
  • 12
    5244050 BRACE, PAN (LOWER)
    BRACE, PAN (LOWER)
  • 13
    5243991-067 HINGE, PIVOT (LOWER/LEFT/BLACK)
    HINGE, PIVOT (LOWER/LEFT/BLACK)
  • 14
    7542153 NUT
    NUT
  • 15
    5433518-070 BUMPER EDGE (BLACK/FRONT)
    BUMPER EDGE (BLACK/FRONT)
  • 16
    7512163 SCREW
    SCREW
  • 17
    7621472 RIVET
    RIVET
  • 18
    5245853 SHIELD, EXHAUST HEAT EXTENDED
    SHIELD, EXHAUST HEAT EXTENDED
  • 19
    5434343-070 NOSEPAN, GAS ASSIST (BLACK)
    NOSEPAN, GAS ASSIST (BLACK)
  • 20
    7542122 NUT, LOCK
    NUT, LOCK
  • 21
    7555827 WASHER
    WASHER
  • 22
    7515166 SCREW
    SCREW
  • 23
    7517312 SCREW
    SCREW
  • 24
    7552801 LOCK WASHER
    LOCK WASHER
  • 25
    5244888 GUIDE, HOOD EDGE (LEFT)
    GUIDE, HOOD EDGE (LEFT)
  • 25
    5244889 GUIDE, HOOD EDGE (RIGHT)
    GUIDE, HOOD EDGE (RIGHT)
